Valve Springs: Installation
WARNING: This page is about a different variant/trim than selected.
NOTE:
Lubricate the parts with clean engine oil
Courtesy of FORD MOTOR CO.

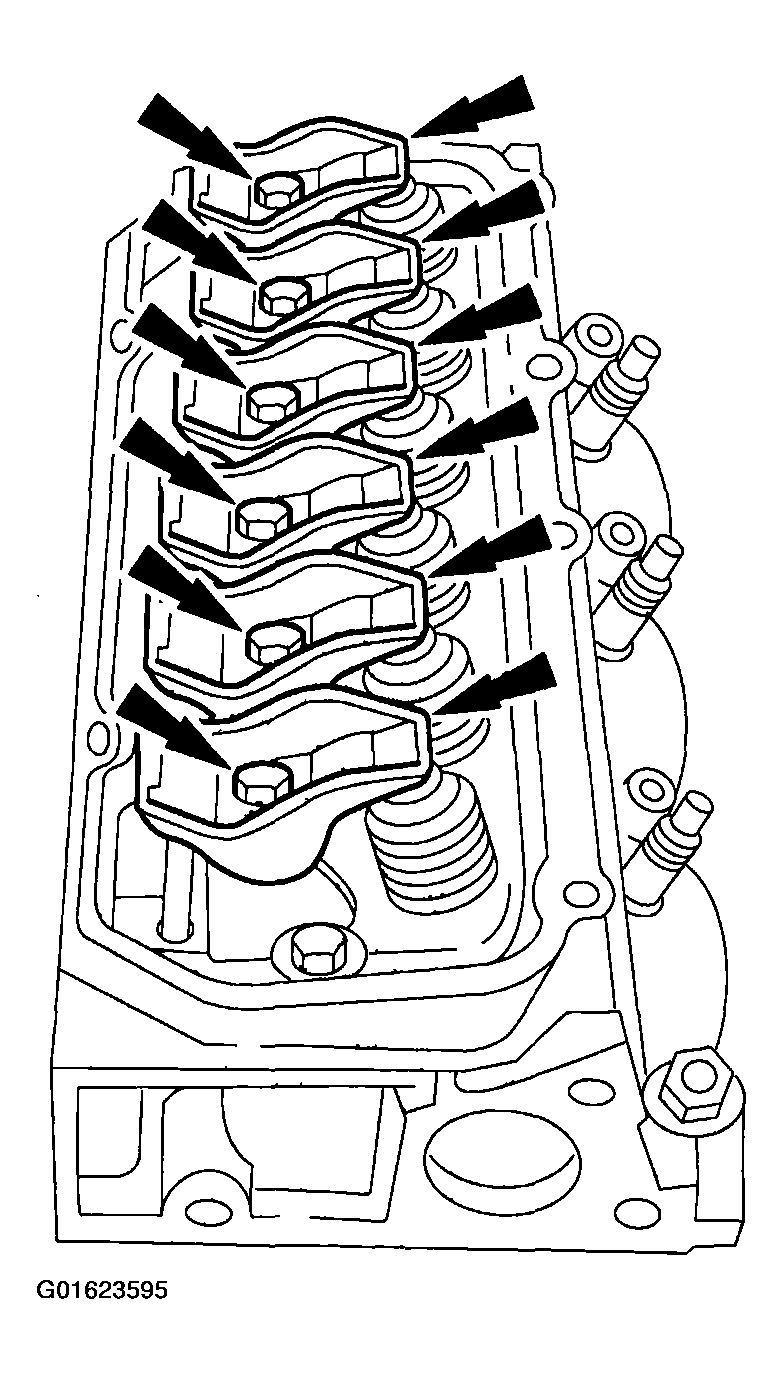

- To install reverse the removal procedure. Tighten the rocker arm bolts in two stages.
- Stage 1: Tighten to 5 Nm (44 lb-in).
- Stage 2: Tighten to 35 Nm (26 lb-ft).
