Rocker Arm: Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: If removing more than one rocker arm (6564), mark the components removed for correct location.

Remove the valve covers. For additional information, refer to VALVE COVER-LH and VALVE COVER-RH .
Remove the rocker arm assembly.
- Remove the bolt.

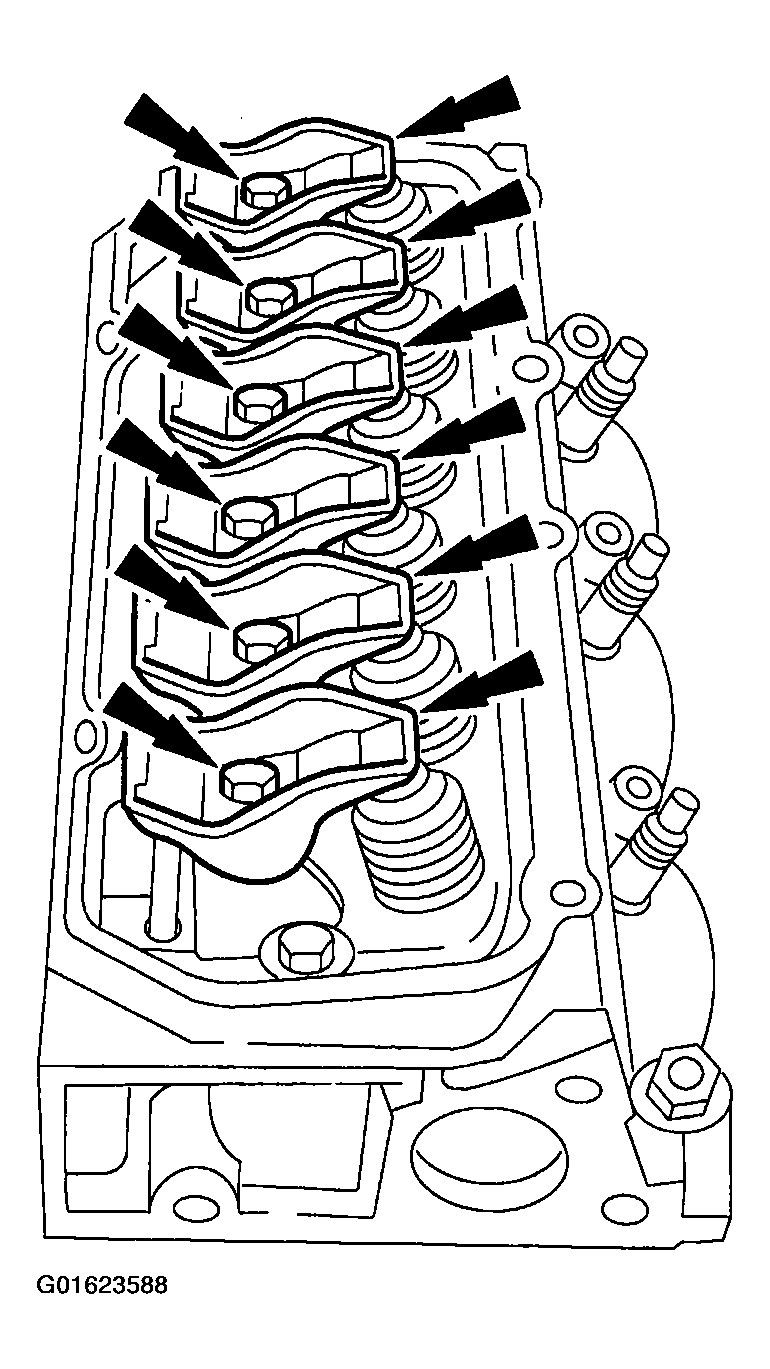

  Fig 1: Removing Rocker Arm Assembly
  Courtesy of FORD MOTOR CO.
