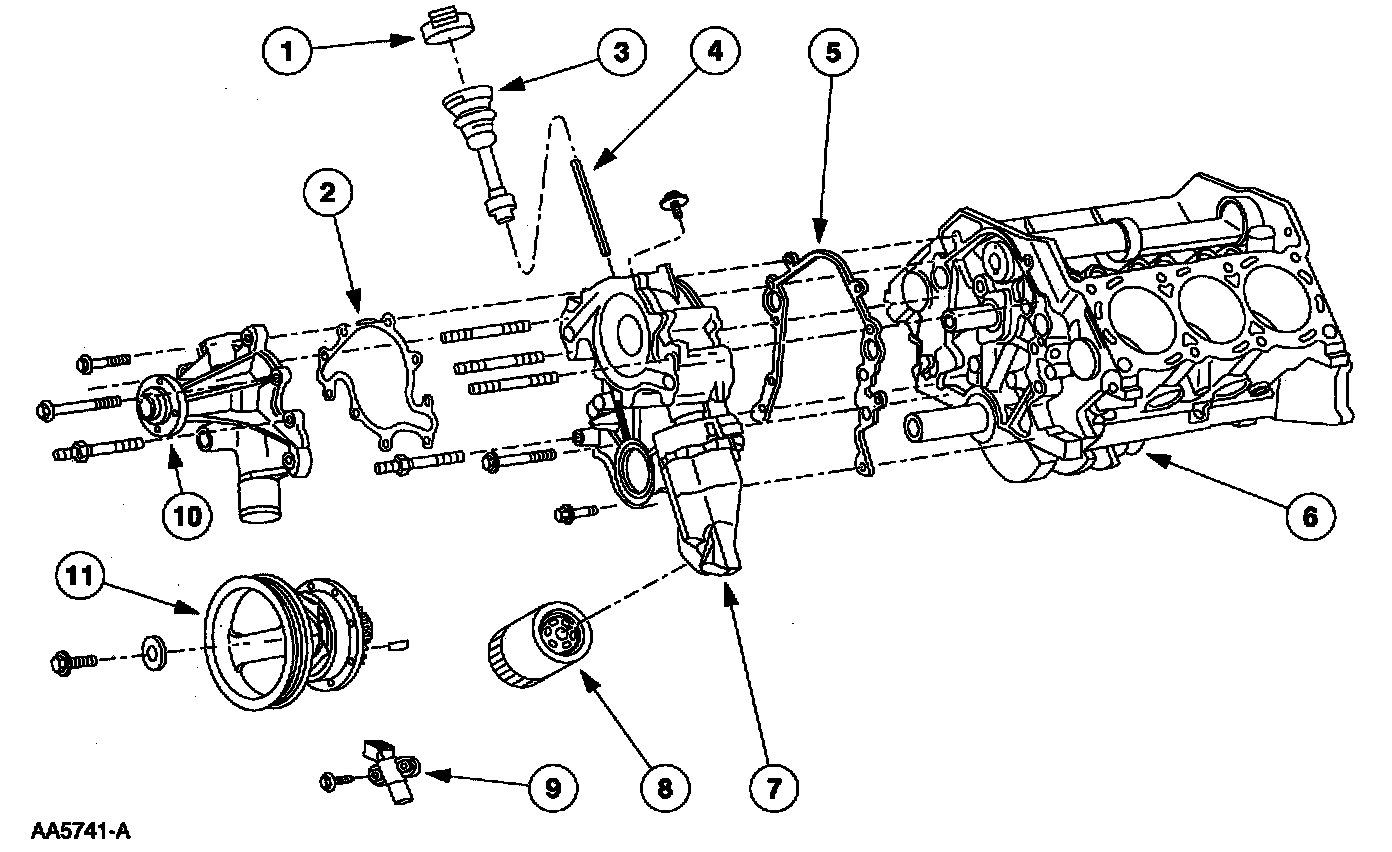

Engine Front Cover Components

Engine Front Cover Components

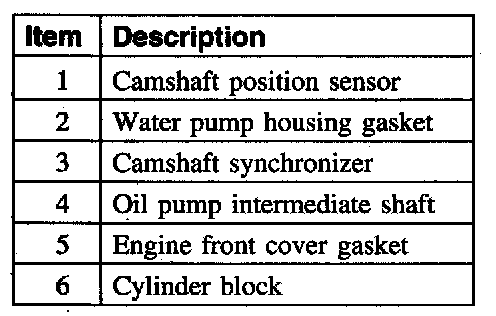

Part 1 Of 3:

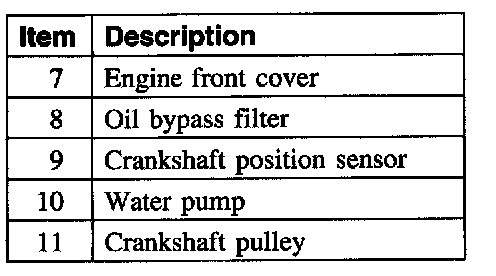

Part 2 Of 3:




Part 3 Of 3:
