Test E

PINPOINT TEST E: THE MODULE DOES NOT RESPOND TO THE DIAGNOSTIC TOOL - POWERTRAIN CONTROL MODULE (PCM)

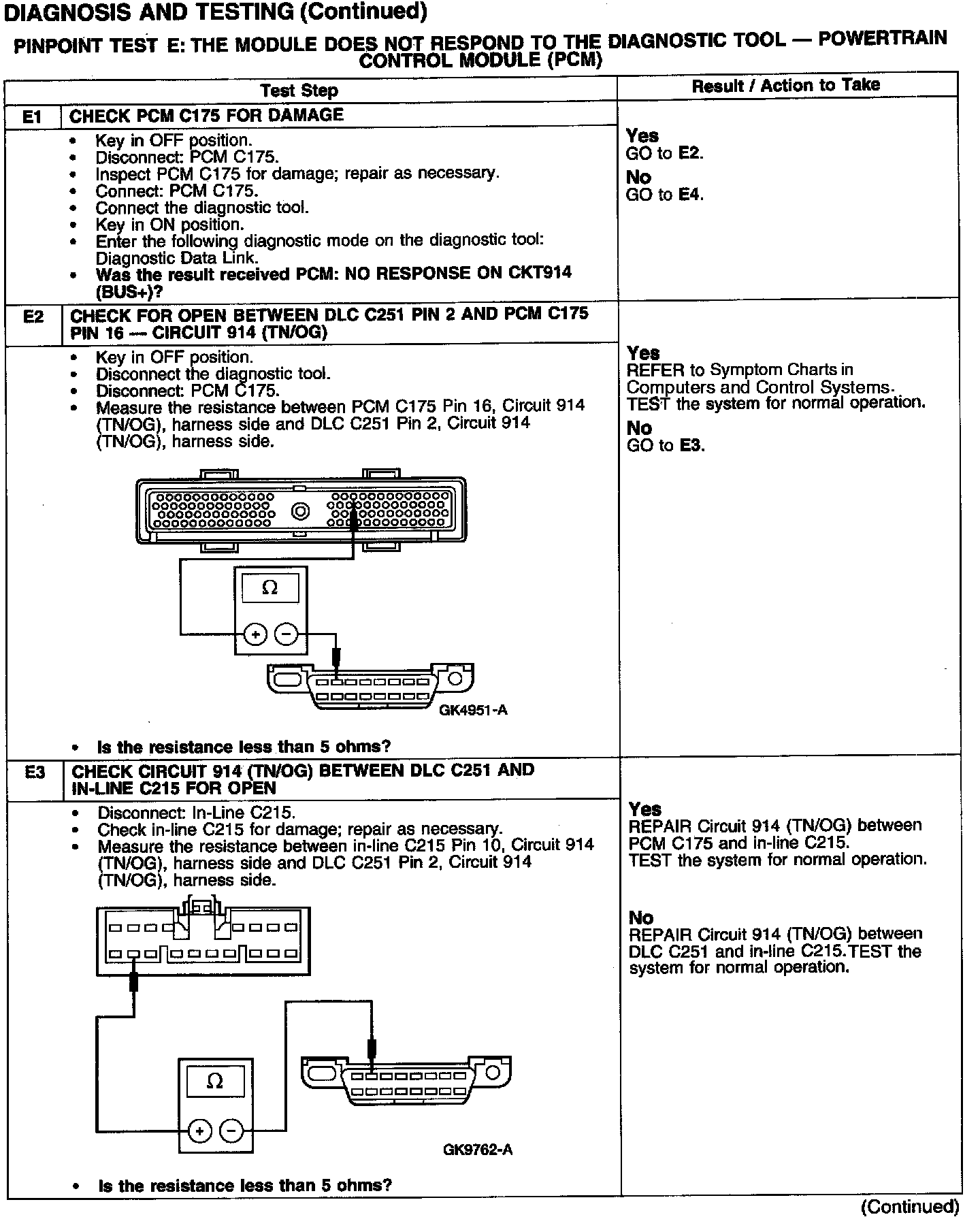

Test E1-E3:

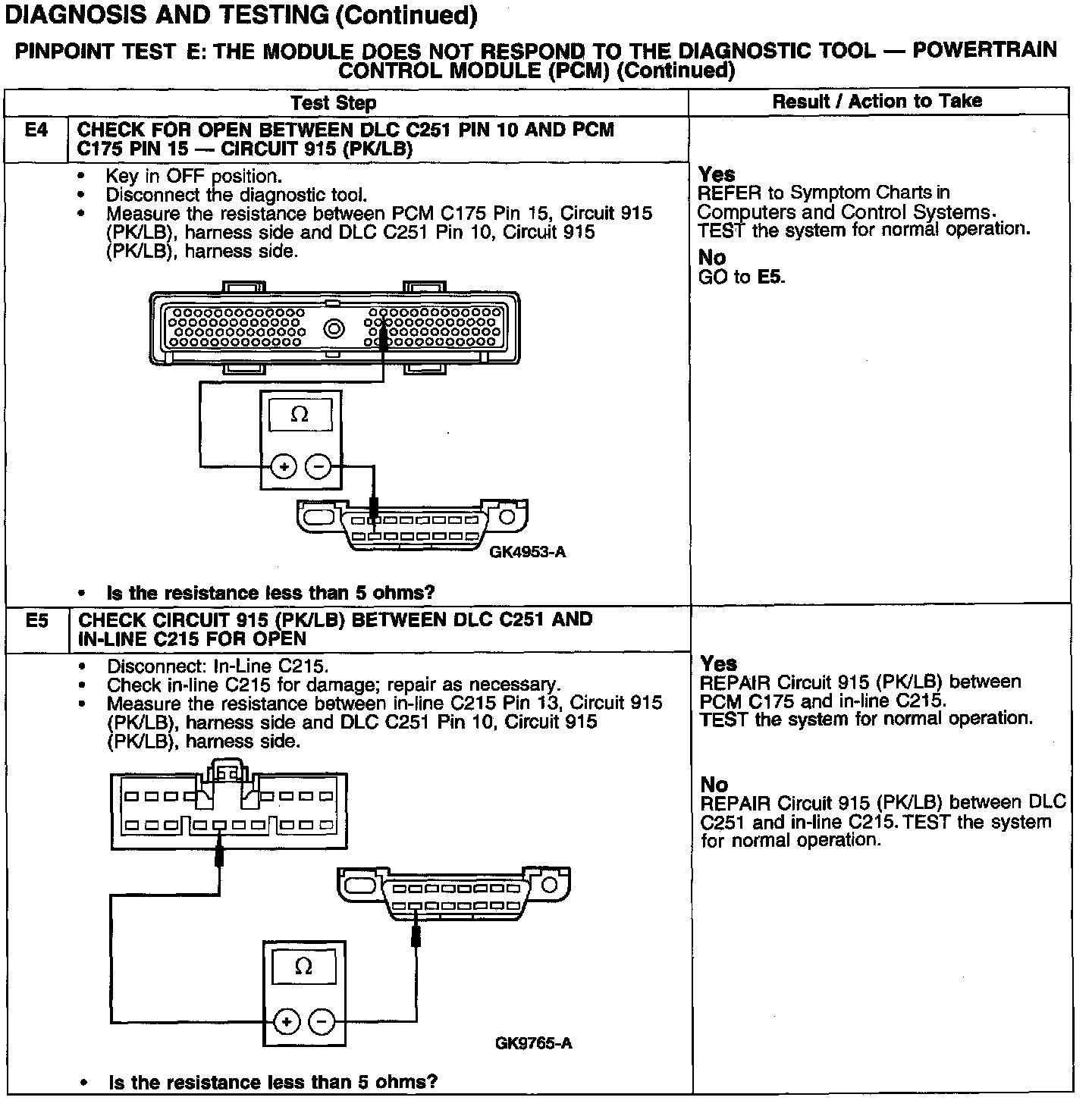

Test E4-E5:
