Rear

Toe Adjustment - Rear

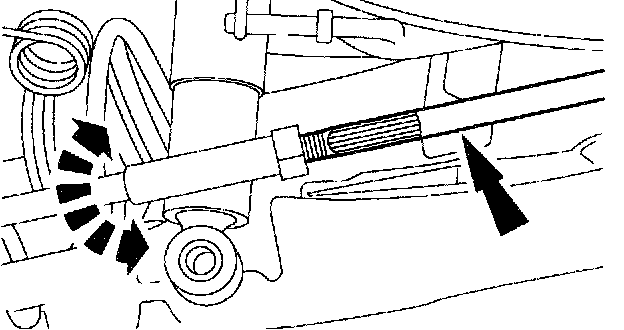

1. Loosen the nuts.
^ To prevent damage to the ball joints, hold the tie-rod ends while loosening the nuts.

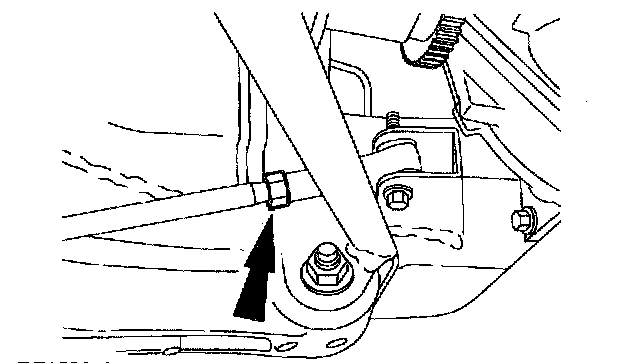

2. Rotate the toe link to the correct toe setting.

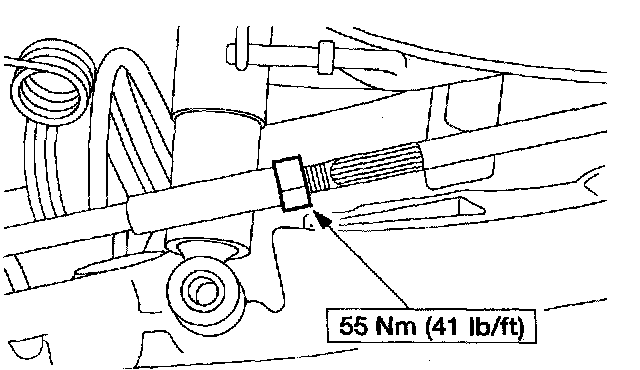

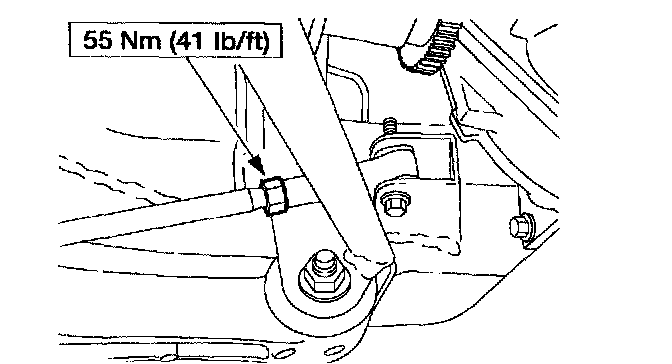

3. Tighten the nuts.
^ To prevent damage to the ball joints, hold the tie-rod ends while tightening the nuts.
4. Recheck the toe settings. Follow the manufacturer's instructions.
