Throttle Position Sensor: Service and Repair

REMOVAL

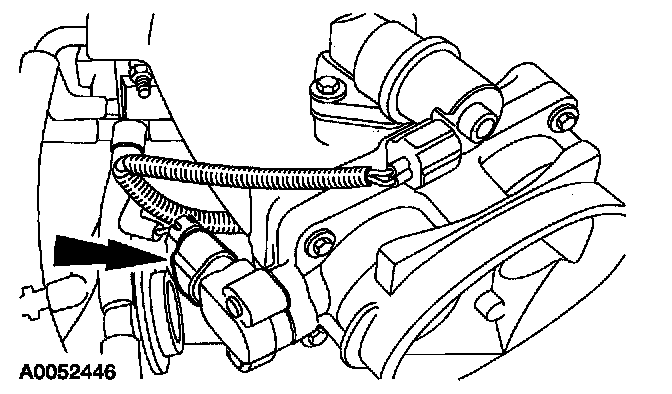

1. Disconnect the Throttle Position (TP) sensor electrical connector.

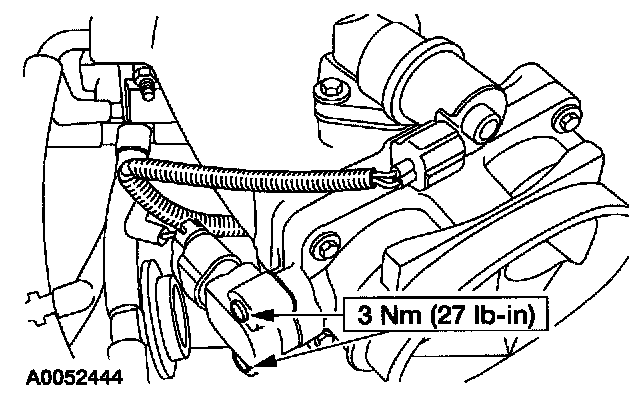

2. Remove the bolts and the TP sensor.

INSTALLATION
1. To install, reverse the removal procedure.
