Intake Manifold

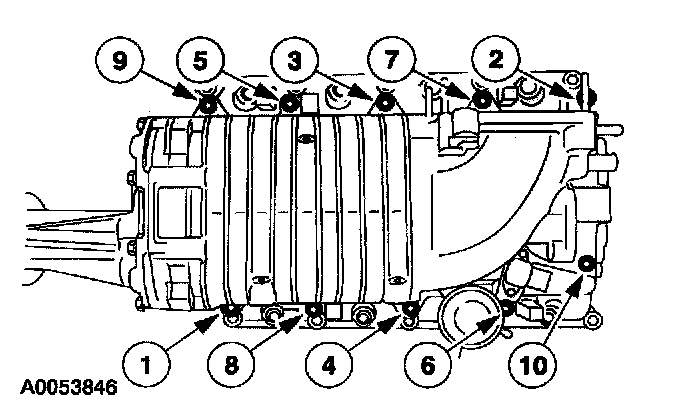

Supercharger and CAC cooler assembly-to-lower intake manifold bolts, in the sequence shown, in two stages.
Stage 1: Tighten to 2 Nm (18 inch lbs.).
Stage 2: Tighten to 25 Nm (18 ft. lbs.).
