Valve - Guide Inner Diameter

  1. Measure the inner diameter of the valve guides in two directions where indicated.

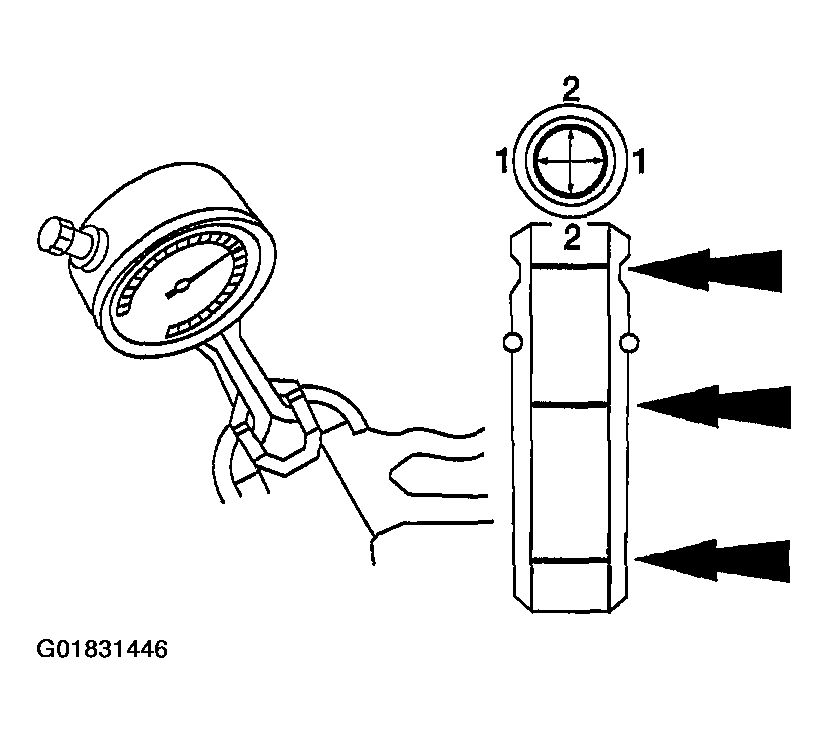

    Fig 1: Measuring Inner Diameter Of The Valve Guides
    G01831446Courtesy of FORD MOTOR CO.
  2. If the valve guide is not within specifications, ream the valve guide and install a valve with an oversize stem or remove the valve guide and install a new valve guide.
