Valve - Guide Reaming

  1. Use a hand-reaming kit to ream the valve guide.

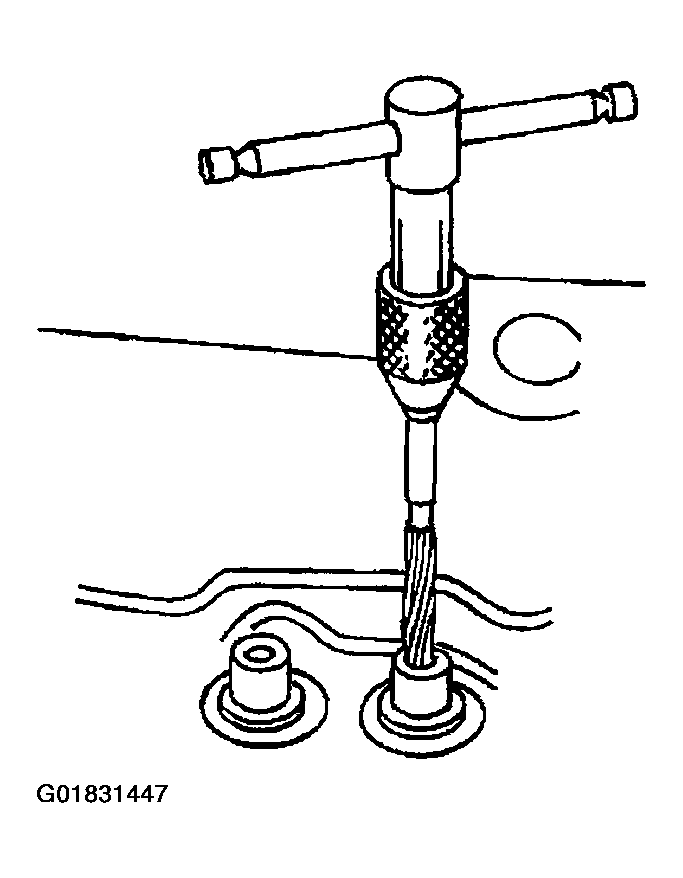

    Fig 1: Reaming The Valve Guides
    G01831447Courtesy of FORD MOTOR CO.
  2. Reface the valve seat.
  3. Clean the sharp edges left by reaming.
