Valve Spring Strength

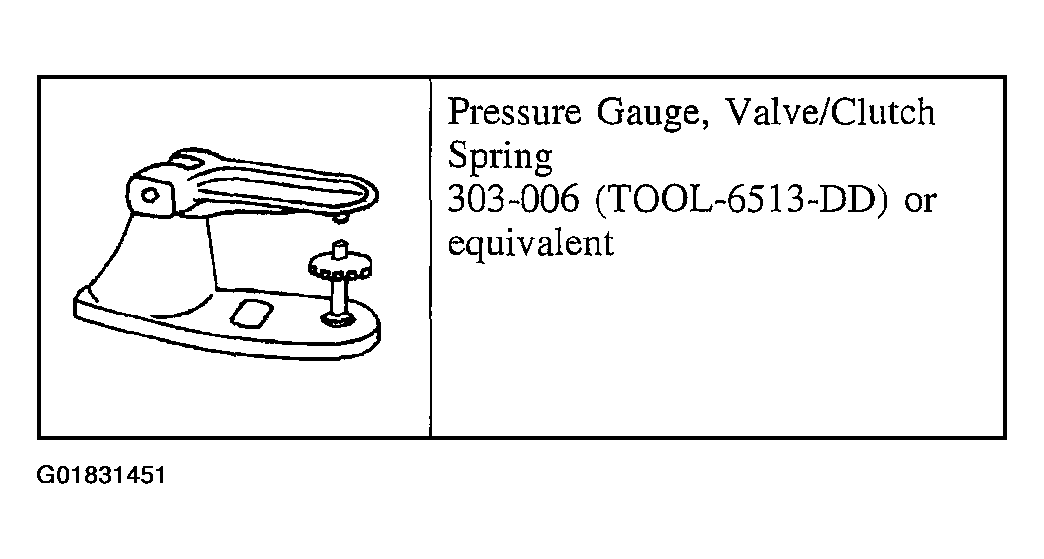

Fig 1: Identifying Special Tool
G01831451Courtesy of FORD MOTOR CO.
  1. Use a Valve/Clutch Spring Pressure Gauge to check the valve spring for correct strength at the specified valve spring length.
    • If out of specification, install new components as necessary.

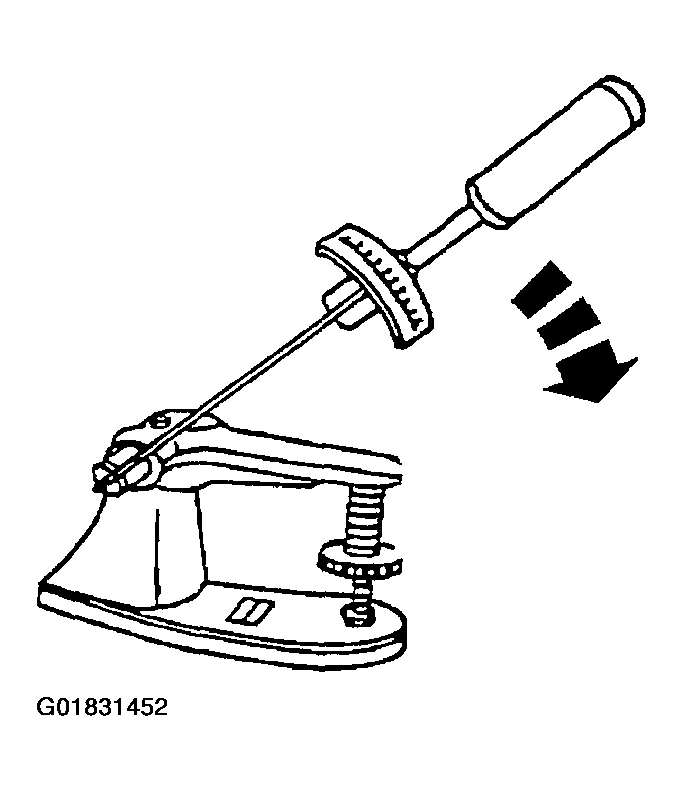

    Fig 2: Measuring Valve Spring Strength
    G01831452Courtesy of FORD MOTOR CO.
