Pinpoint Test E: Remote Keyless Entry Transmitter Out Of Synchronization

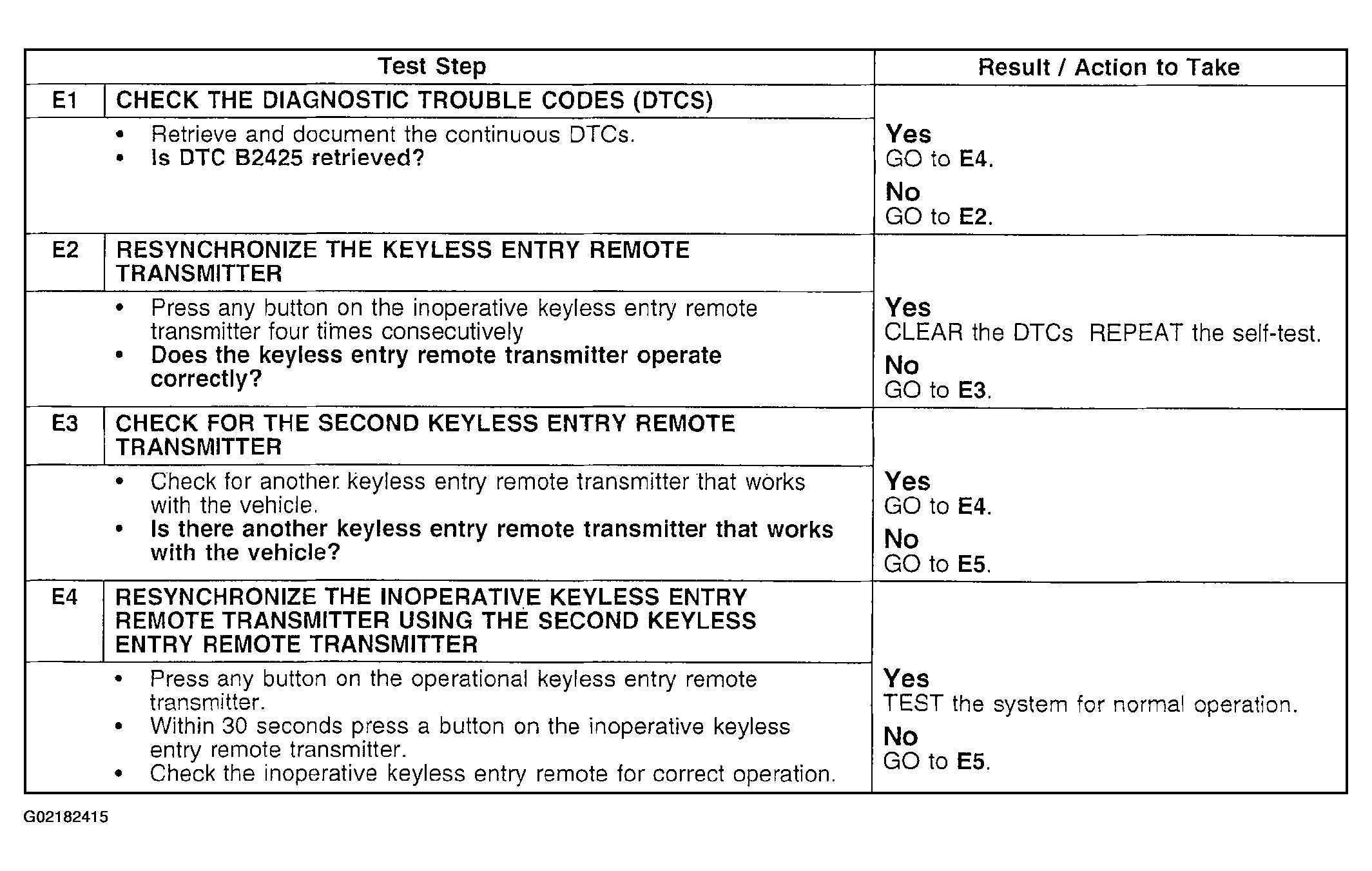

Fig 1: Pinpoint Test E: Remote Keyless Entry Transmitter Out Of Synchronization (Steps E1-E4)
G02182415Courtesy of FORD MOTOR CO.

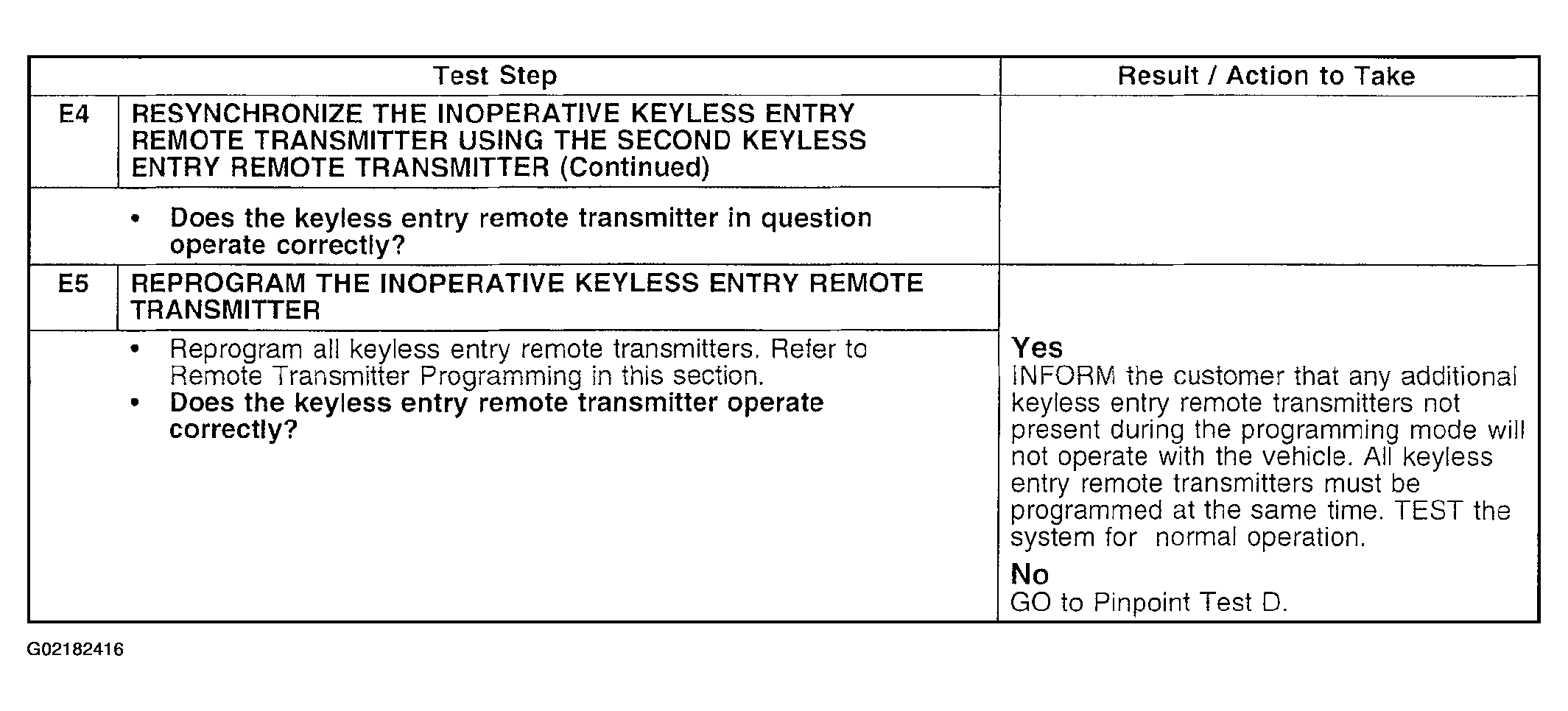

Fig 2: Pinpoint Test E: Remote Keyless Entry Transmitter Out Of Synchronization (Step E4 Continued & E5)
G02182416Courtesy of FORD MOTOR CO.
