Master Window Adjust Switch

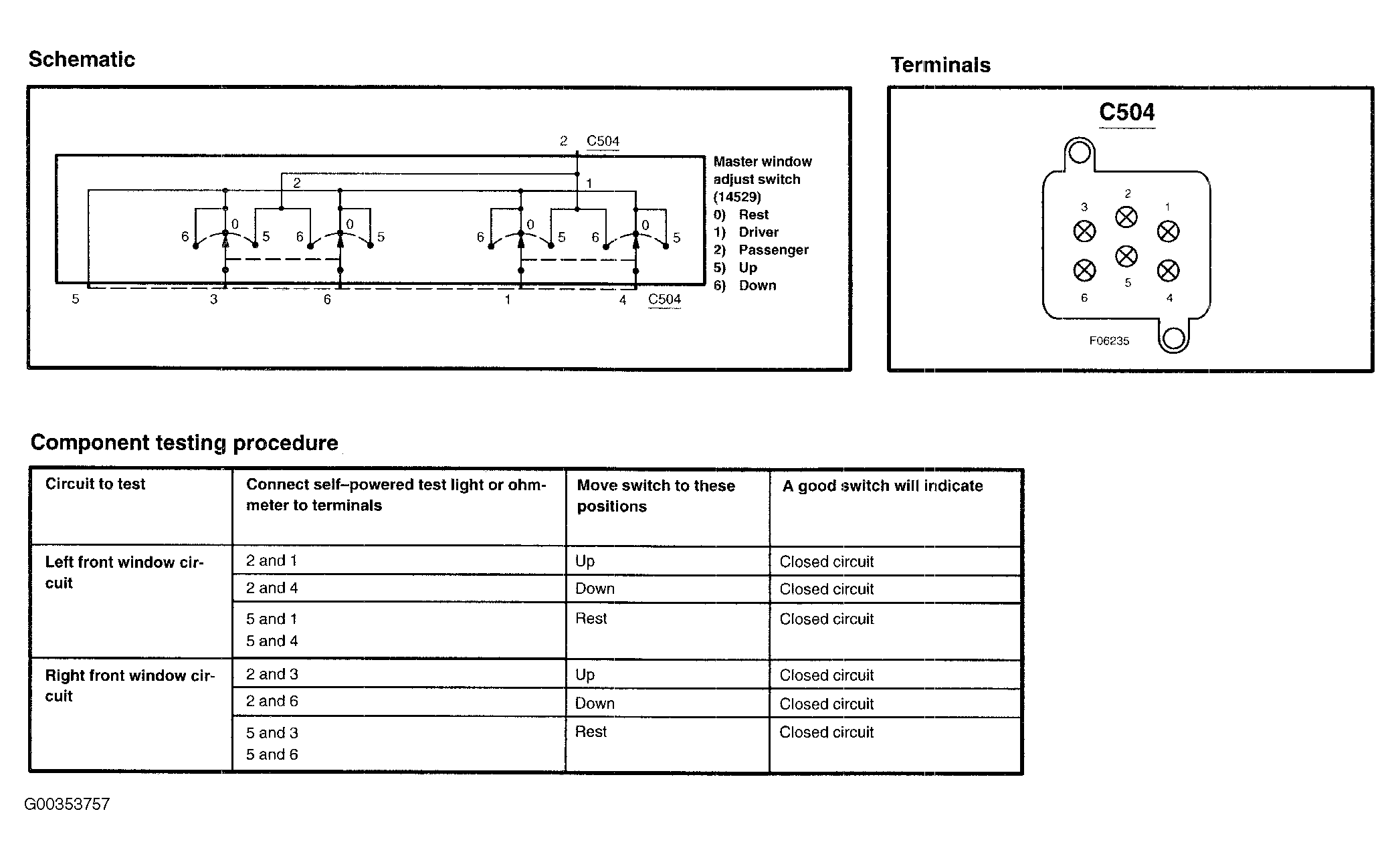

Fig 1: Testing Master Window Adjust Switch
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
