Test H
PINPOINT TEST H: NO MODULE / NETWORK COMMUNICATION - SCP LINK

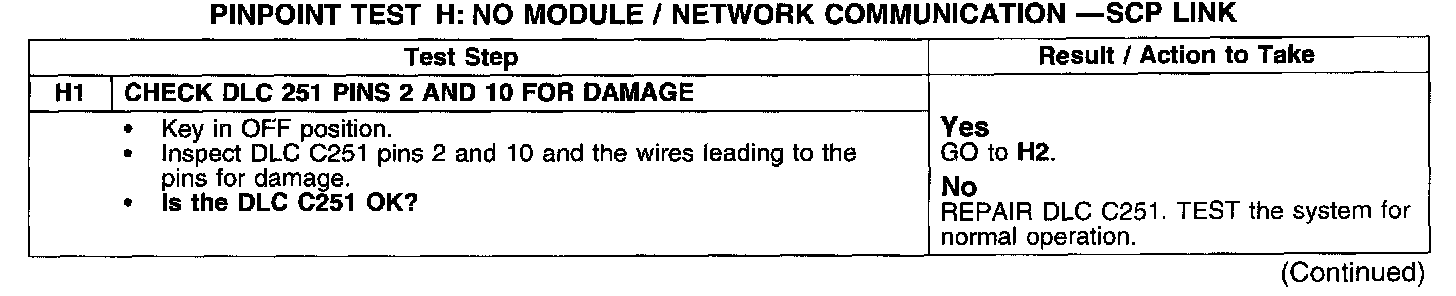

Test H1:

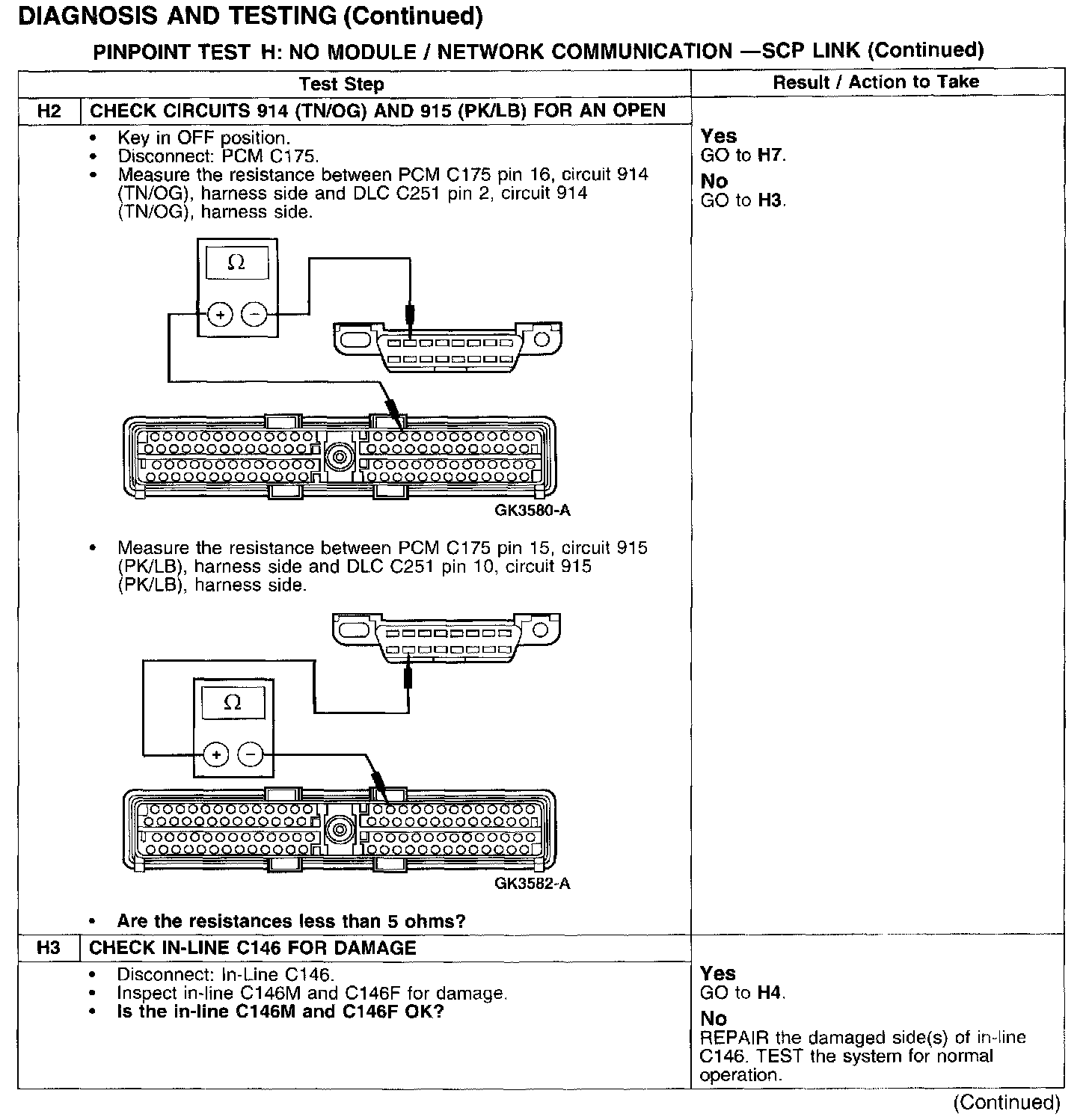

Test H2-H3:

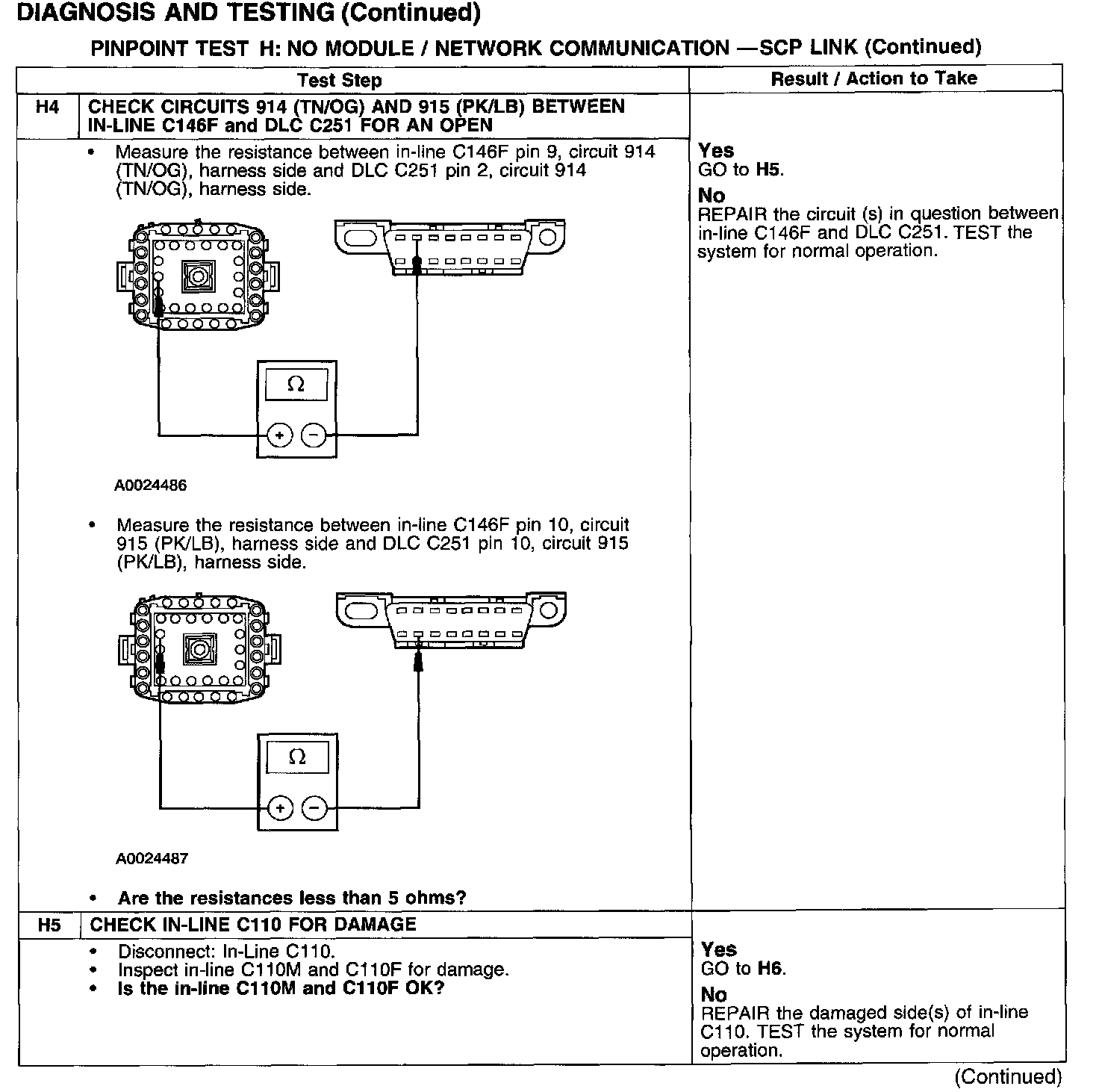

Test H4-H5:

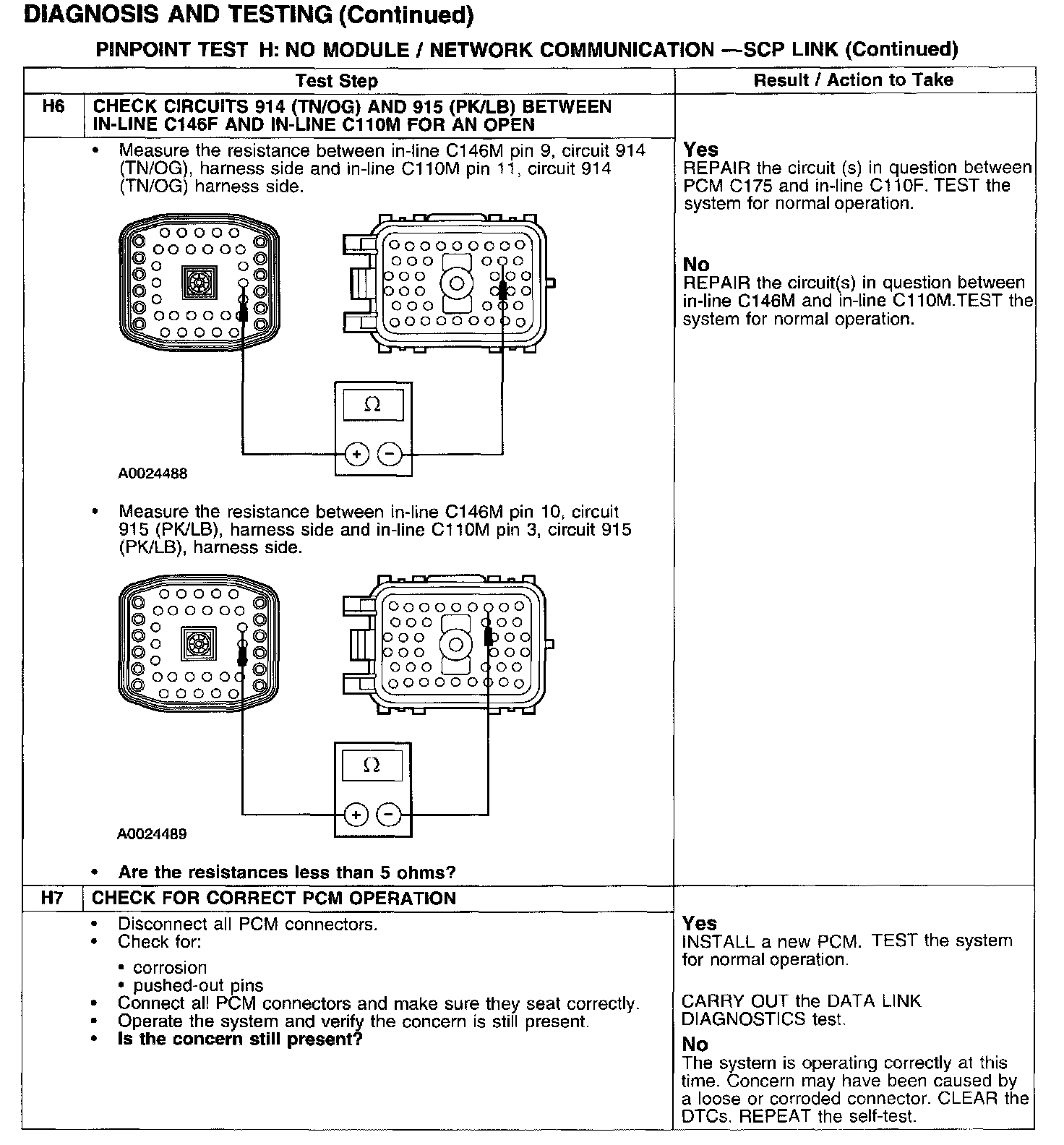

Test H6-H7:
