Ford
>>
2003
>>
Ranger 2WD L4-2.3L VIN D
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Relays and Modules - Powertrain Management
>>
Relays and Modules - Computers and Control Systems
>>
Body Control Module
>>
Locations
>>

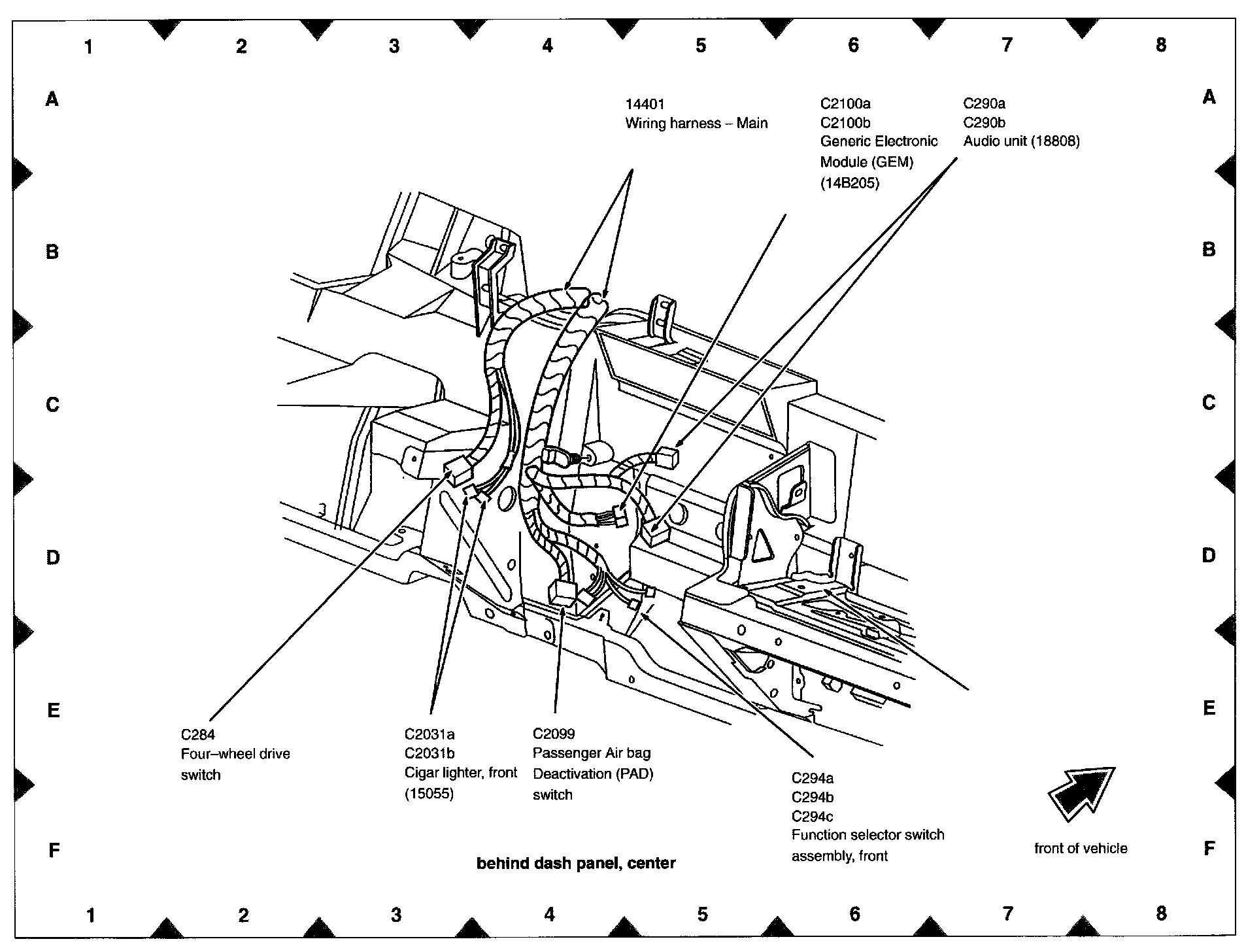

Location Image For Generic Electronic Module
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Location Image For Generic Electronic Module
View 151-24:
