Pinpoint Test B: The Module Does Not Respond To Diagnostic Tool - Generic Electronic Module (Gem)

WARNING: This page is about a different car, the 2003 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

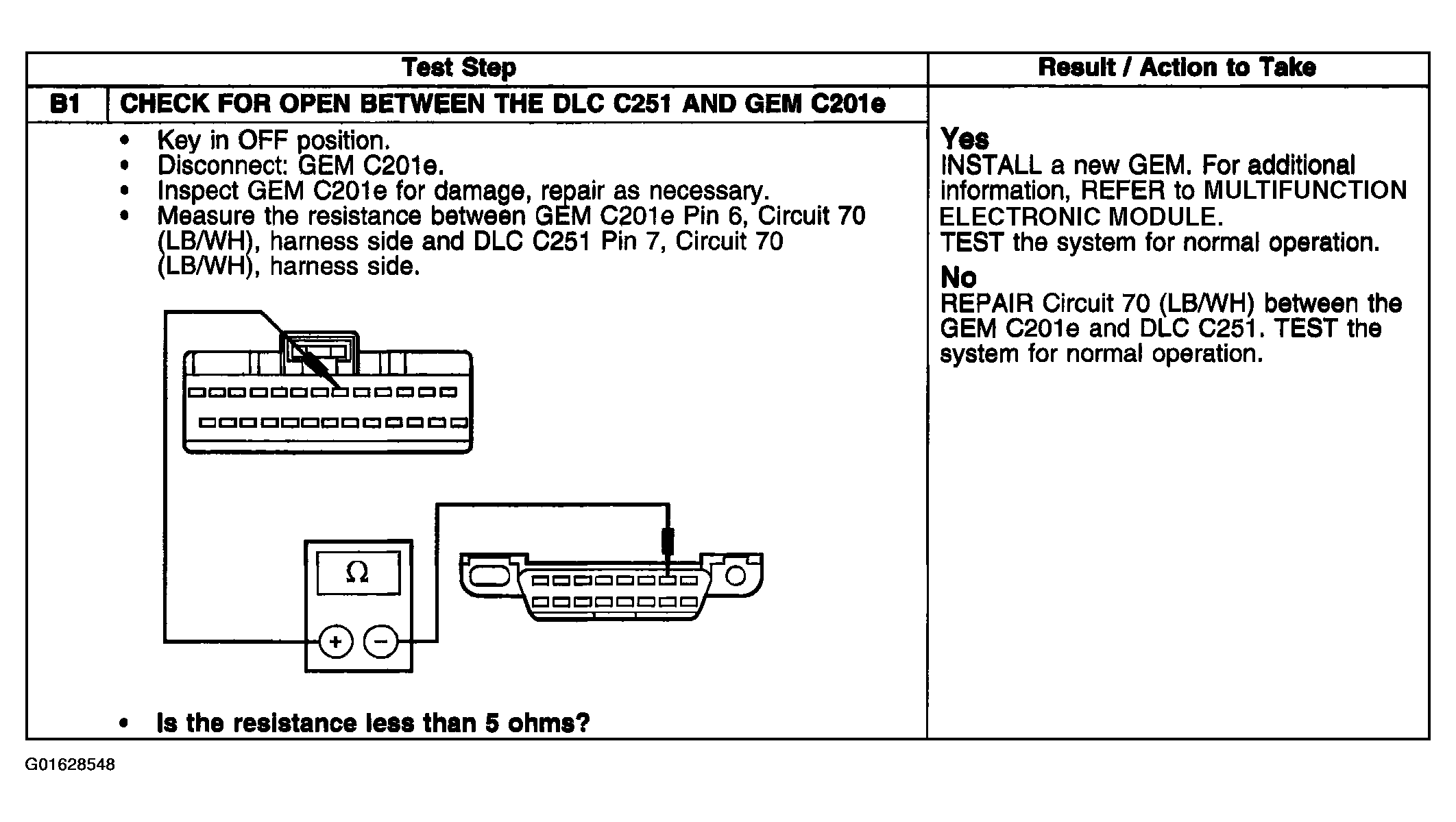

Fig 1: Pinpoint Test B Chart - Module Does Not Respond To Diagnostic Tool - Generic Electronic Module (GEM)
G01628548Courtesy of FORD MOTOR CO.
