Pinpoint Test D: The Module Does Not Respond To Diagnostic Tool - Instrument Cluster

WARNING: This page is about a different car, the 2003 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

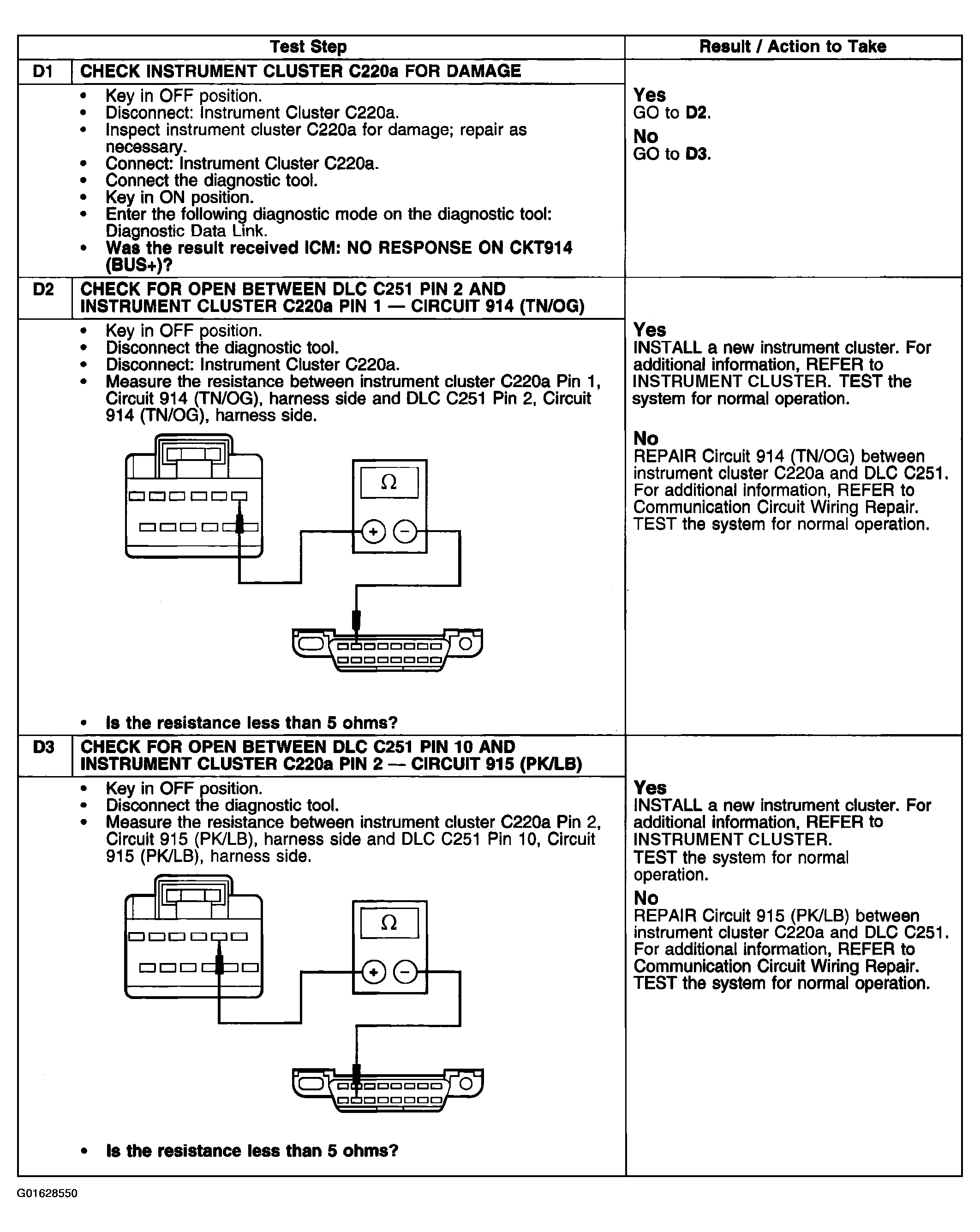

Fig 1: Pinpoint Test D Chart - Module Does Not Respond To Diagnostic Tool - Instrument Cluster
G01628550Courtesy of FORD MOTOR CO.
