Pinpoint Test A: No Communication With The Generic Electronic Module (Gem)

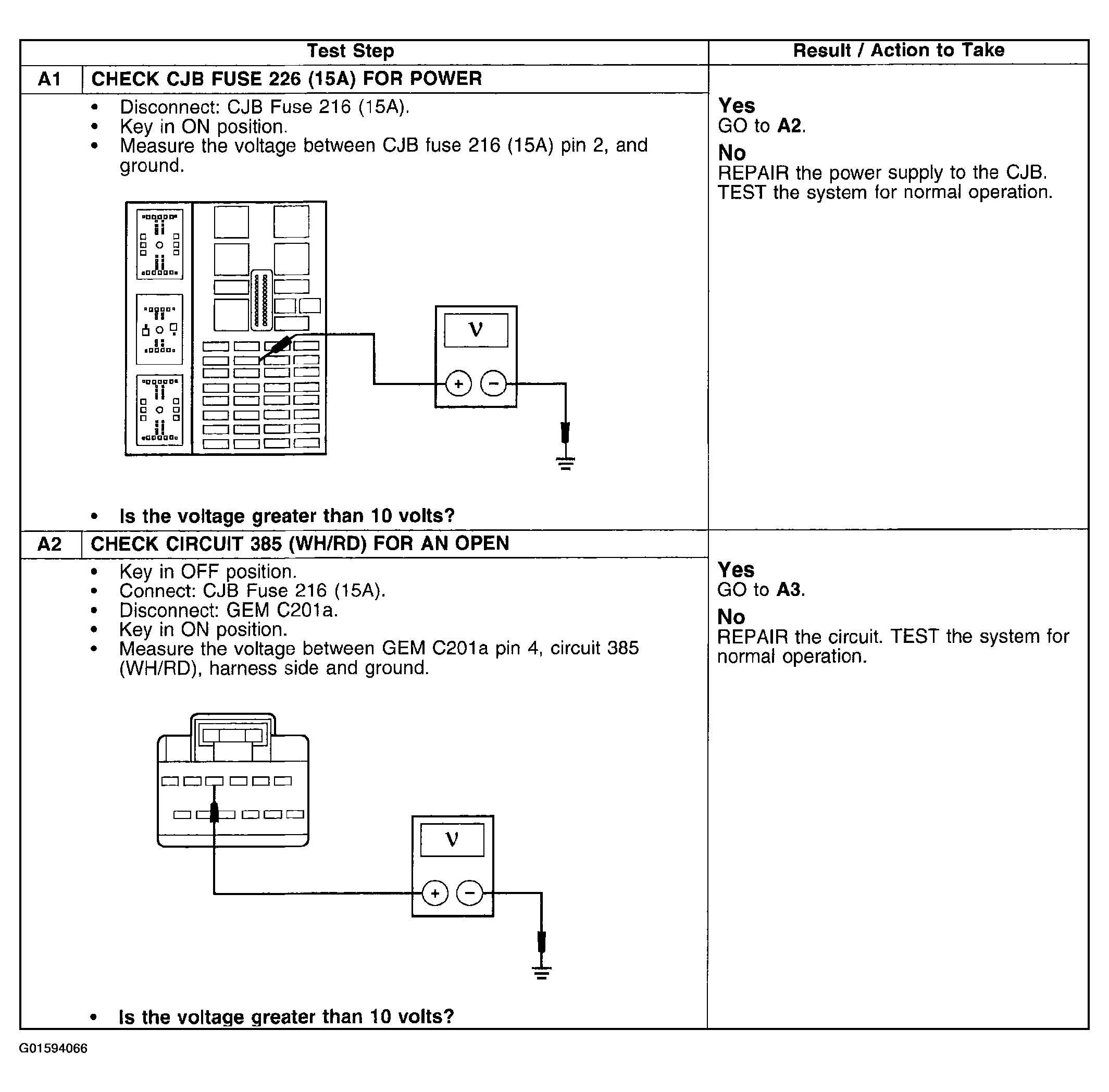

Fig 1: Pinpoint Test A: No Communication With Generic Electronic Module (GEM) (Steps A1-A2)
G01594066Courtesy of FORD MOTOR CO.

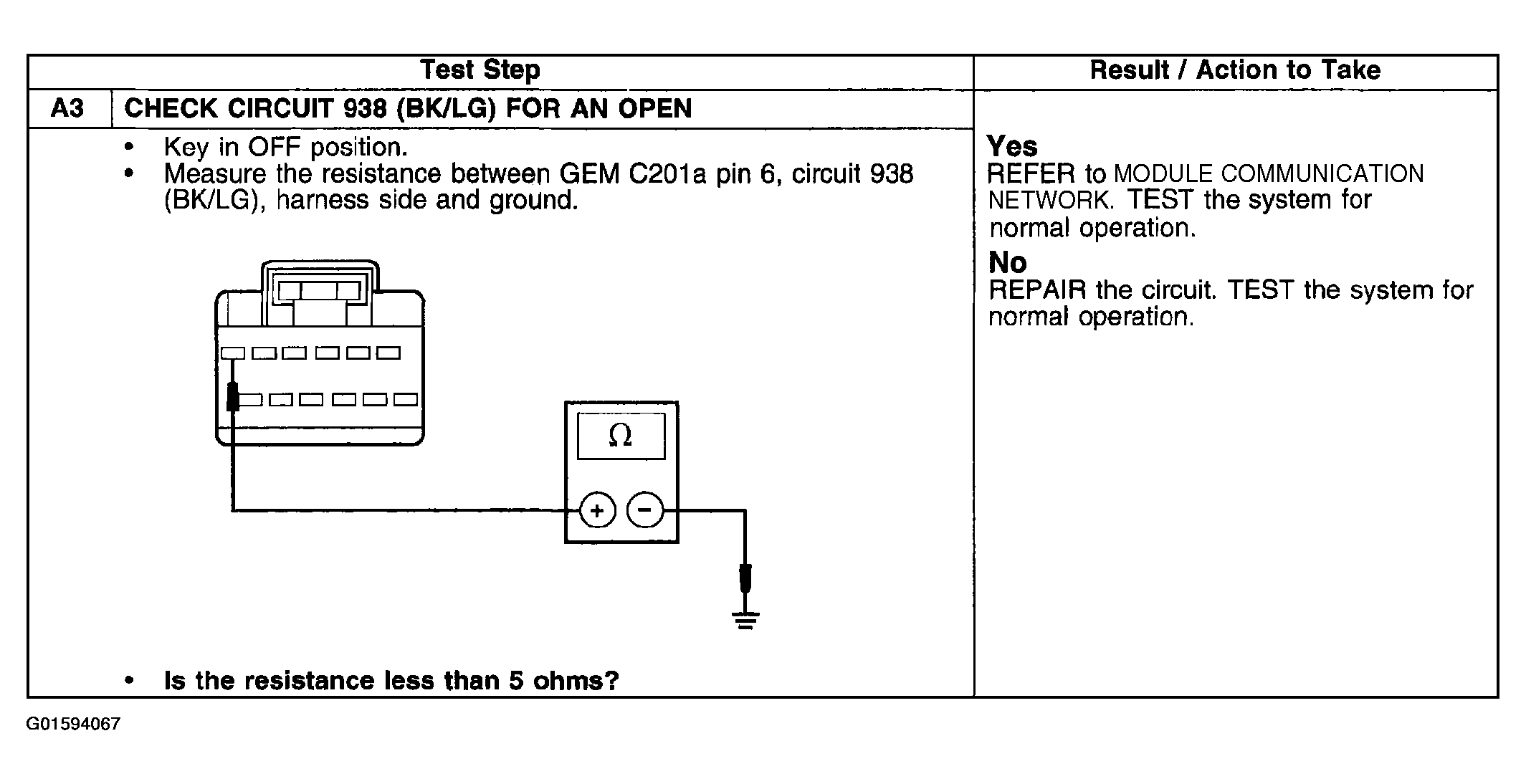

Fig 2: Pinpoint Test A: No Communication With Generic Electronic Module (GEM) (Steps A3)
G01594067Courtesy of FORD MOTOR CO.
