Electronic Automatic Temperature Control System Electrical Components

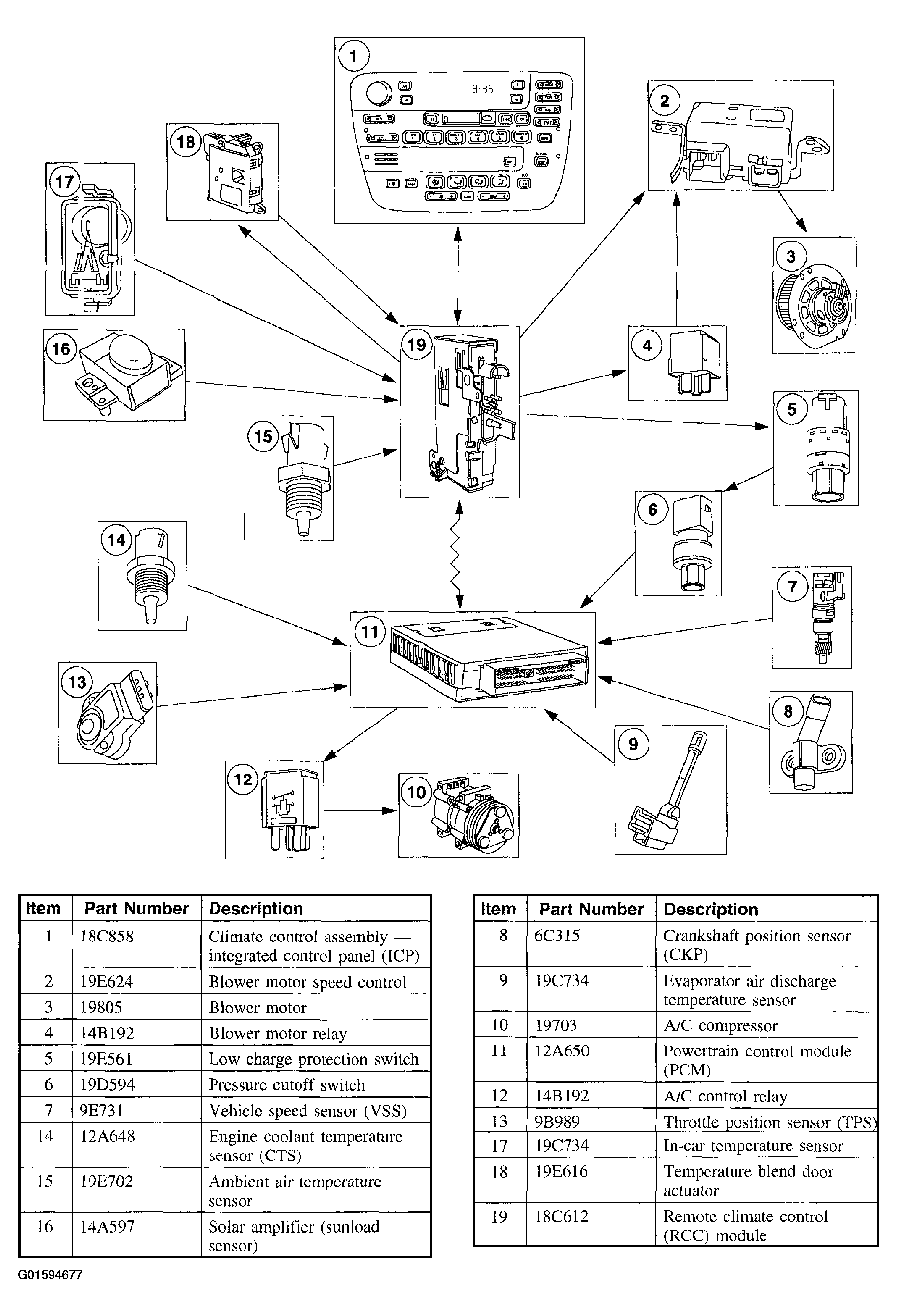

Fig 1: Identifying Electronic Automatic Temperature Control System Electrical Components
G01594677Courtesy of FORD MOTOR CO.
