Pinpoint Test E: DTC U2005 - ACP Communication Error Between Integrated Control Panel And Remote Climate Control Module

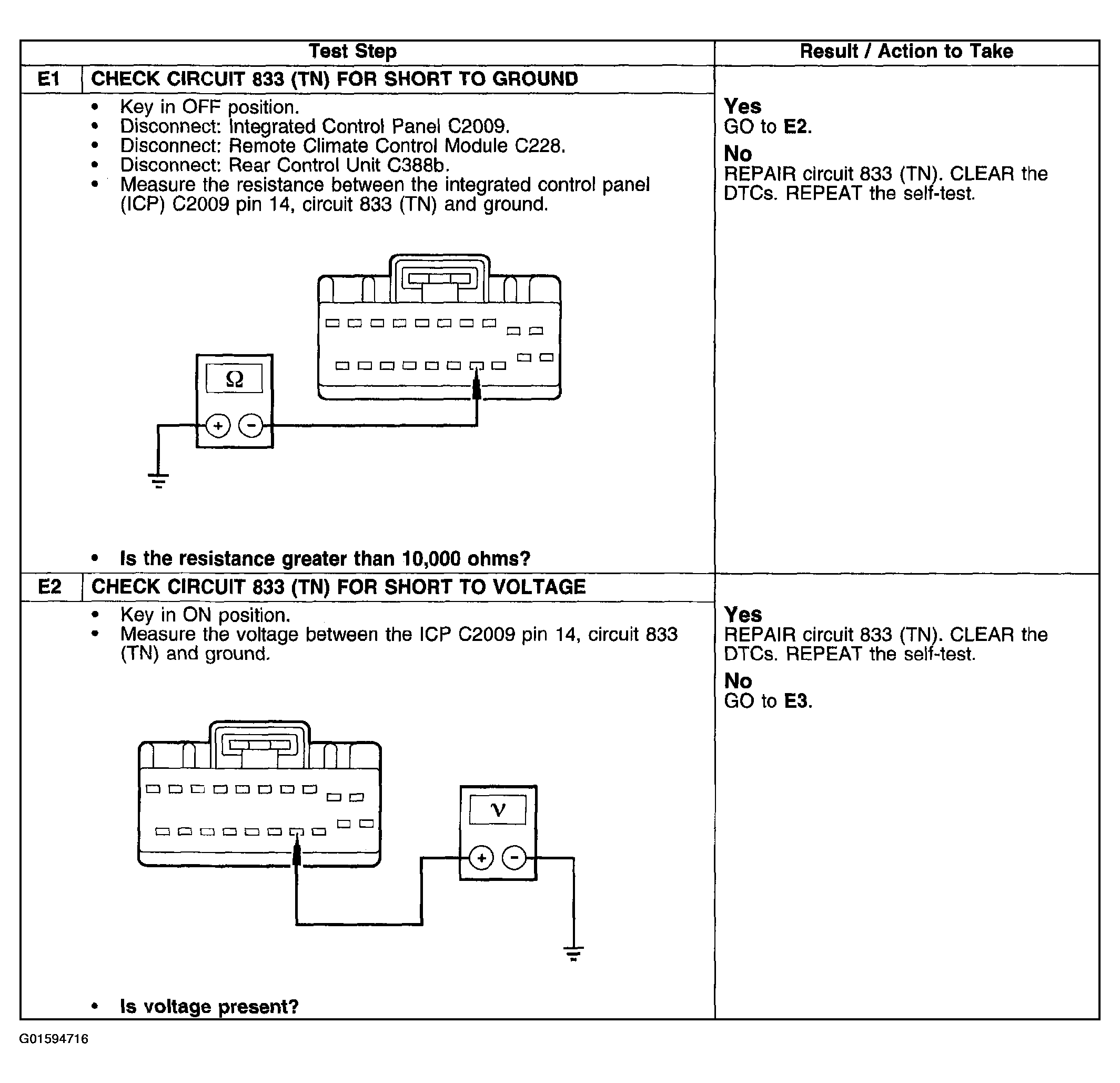

Fig 1: Pinpoint Test E: DTC U2005 - ACP Communication Error Between Integrated Control Panel And Remote Climate Control Module (Step E1-E2)

Courtesy of FORD MOTOR CO.

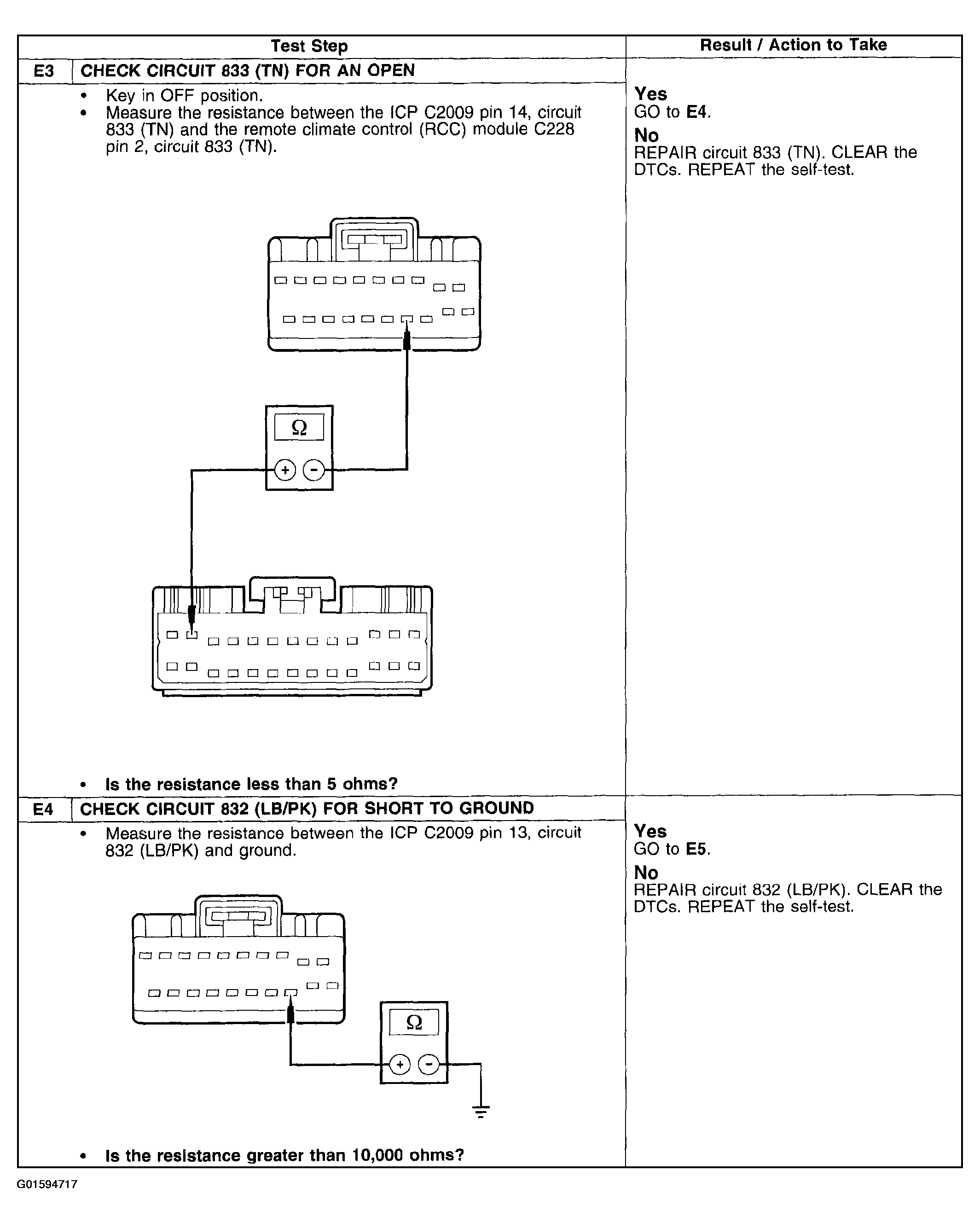

Fig 2: Pinpoint Test E: DTC U2005 - ACP Communication Error Between Integrated Control Panel And Remote Climate Control Module (Step E3-E4)

Courtesy of FORD MOTOR CO.

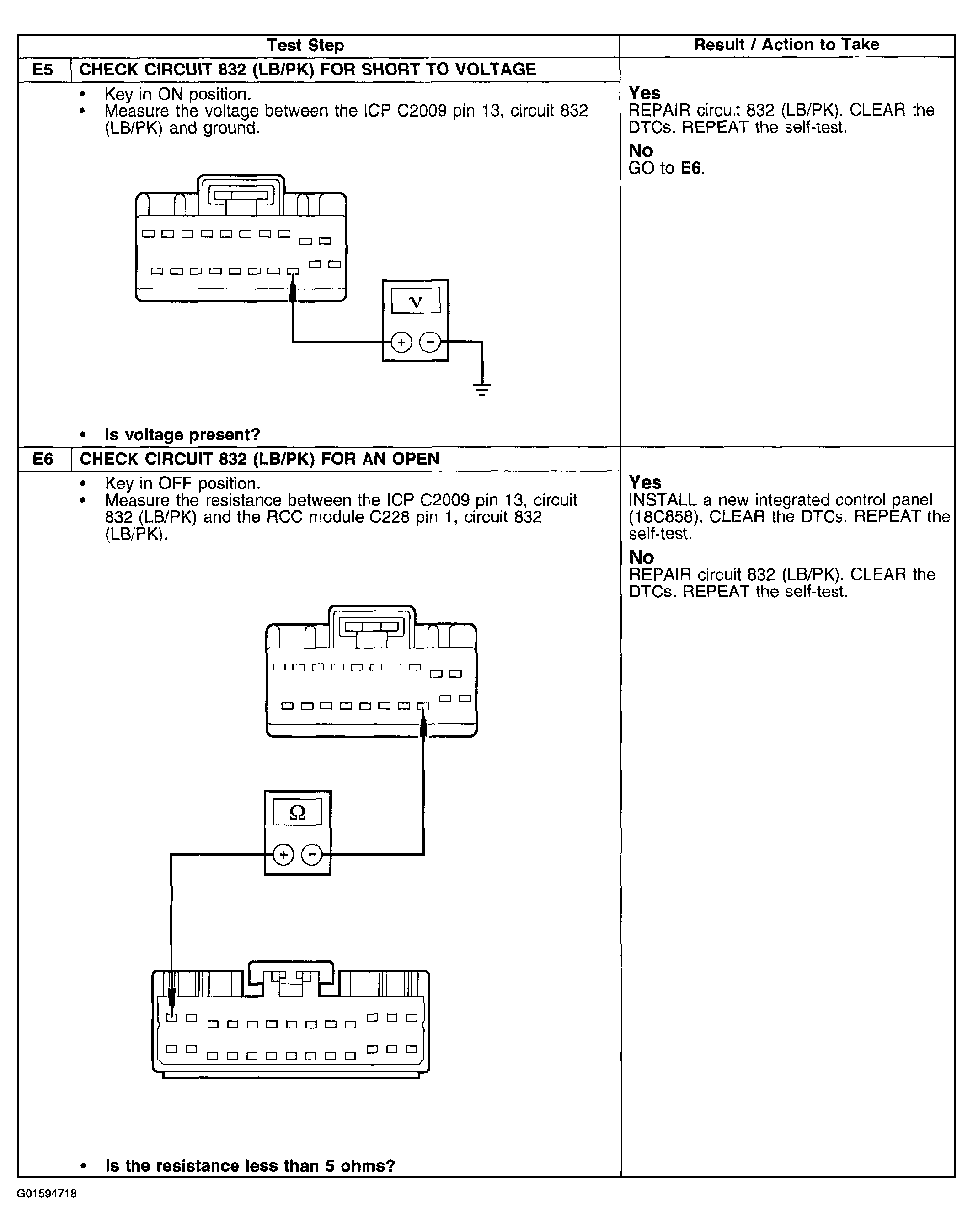

Fig 3: Pinpoint Test E: DTC U2005 - ACP Communication Error Between Integrated Control Panel And Remote Climate Control Module (Step E5-E6)

Courtesy of FORD MOTOR CO.
