Final Drive: Notes

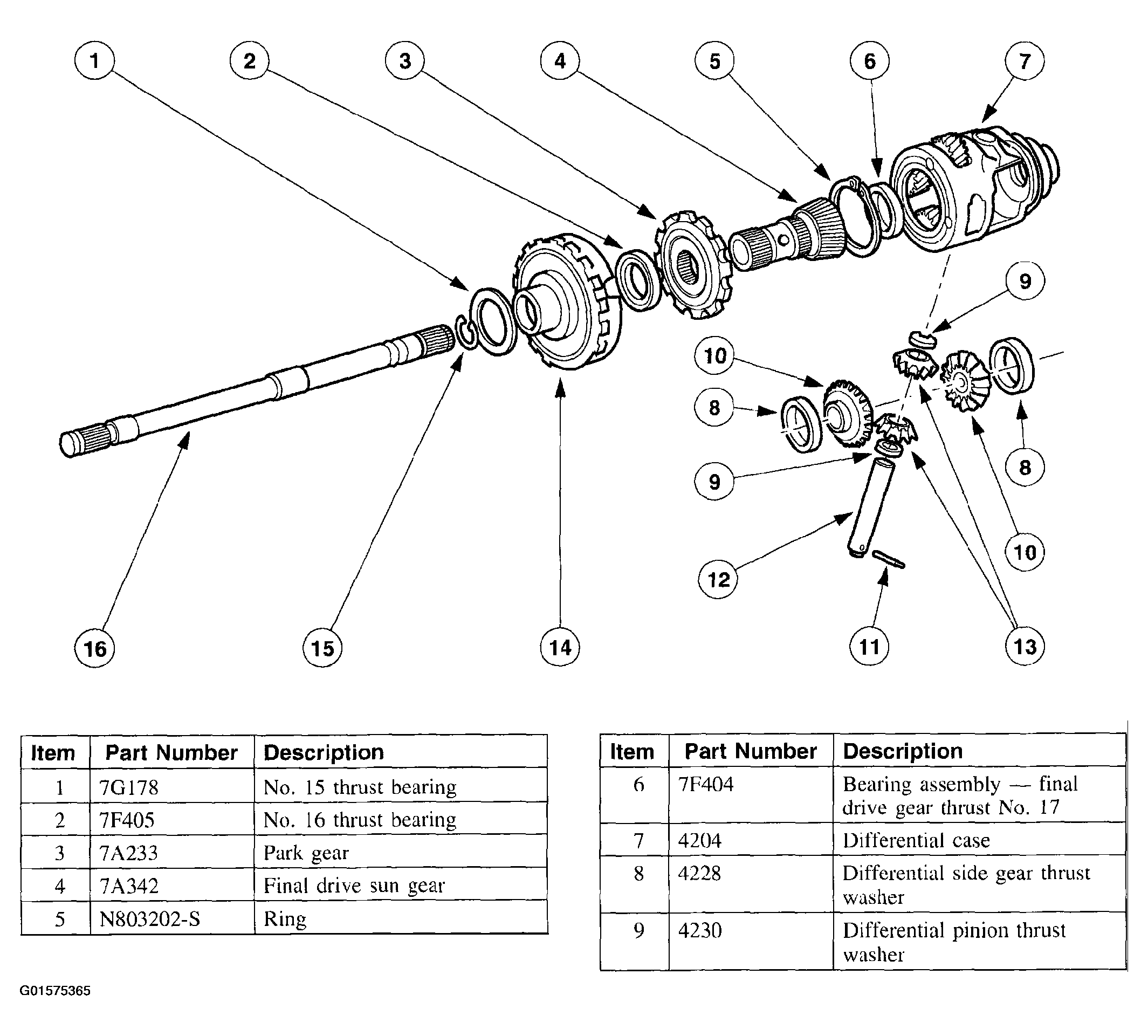

Fig 1: Exploded View Of Final Drive (1 Of 2)
G01575365Courtesy of FORD MOTOR CO.

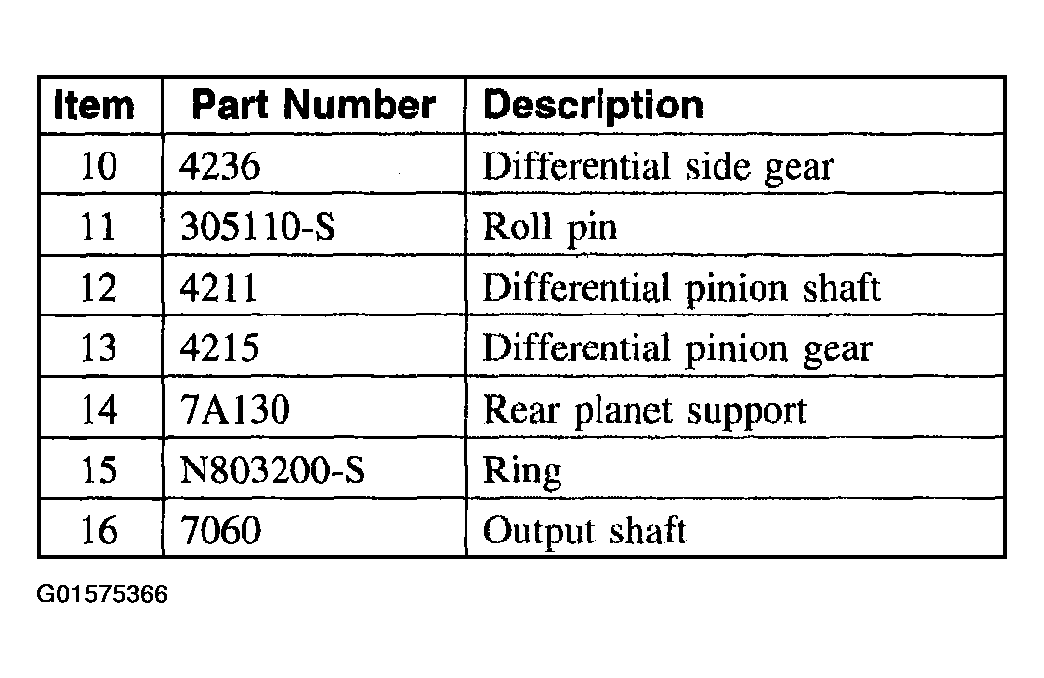

Fig 2: Exploded View Of Final Drive (2 Of 2)
G01575366Courtesy of FORD MOTOR CO.
