Disassembled Views

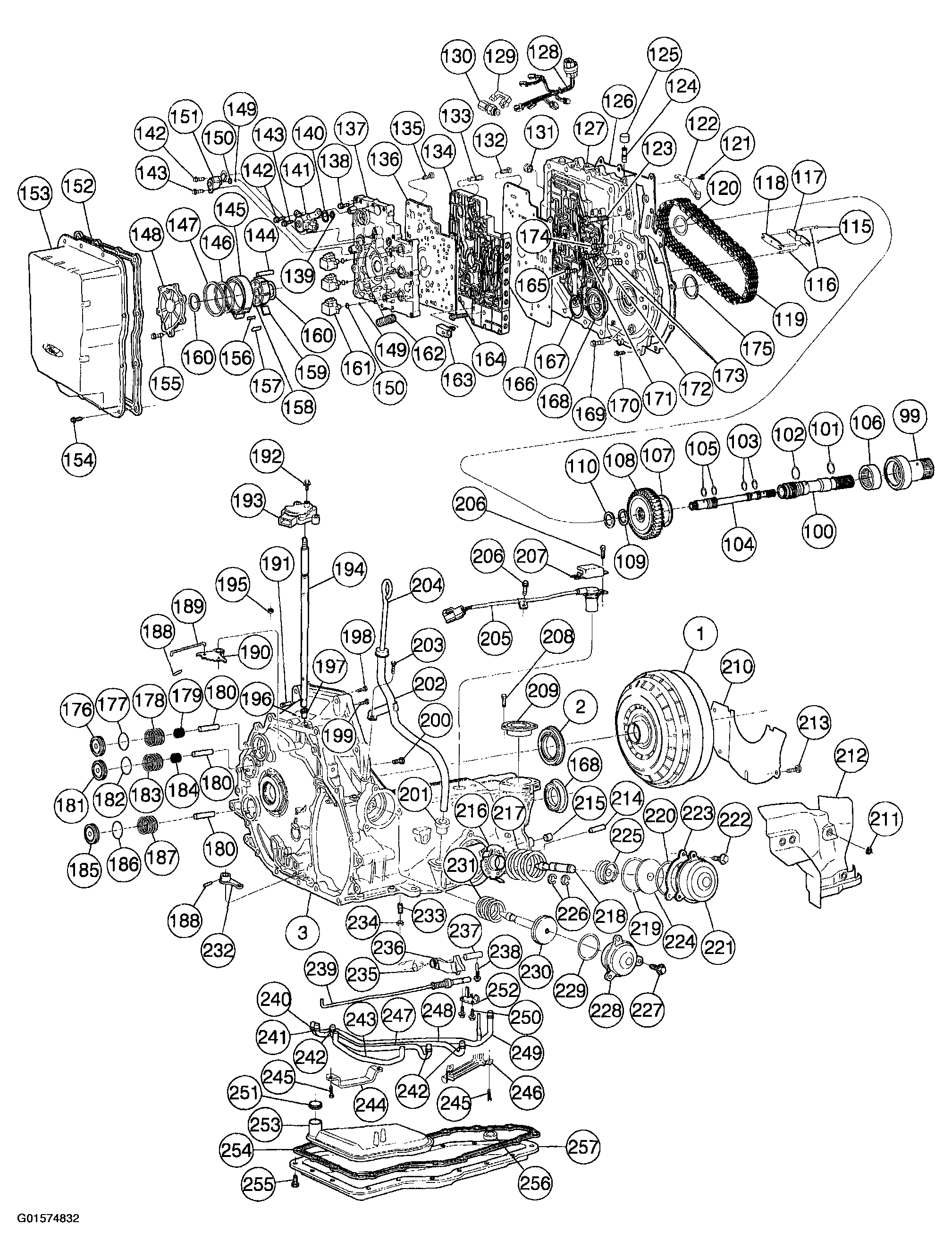

Fig 1: Identifying Disassembled Views (1 Of 7)

G01574832

Courtesy of FORD MOTOR CO.

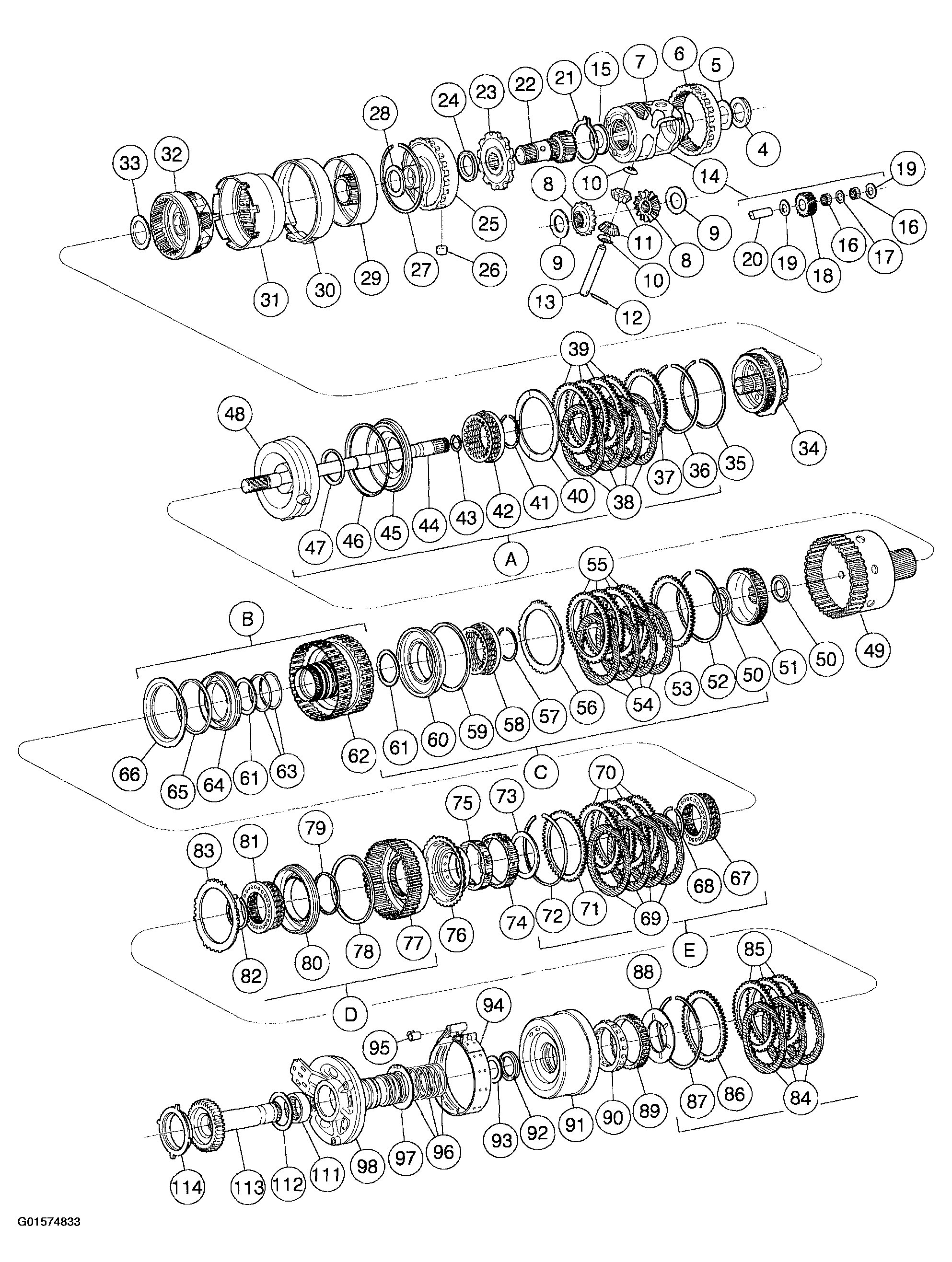

Fig 2: Identifying Disassembled Views (2 Of 7)

G01574833

Courtesy of FORD MOTOR CO.

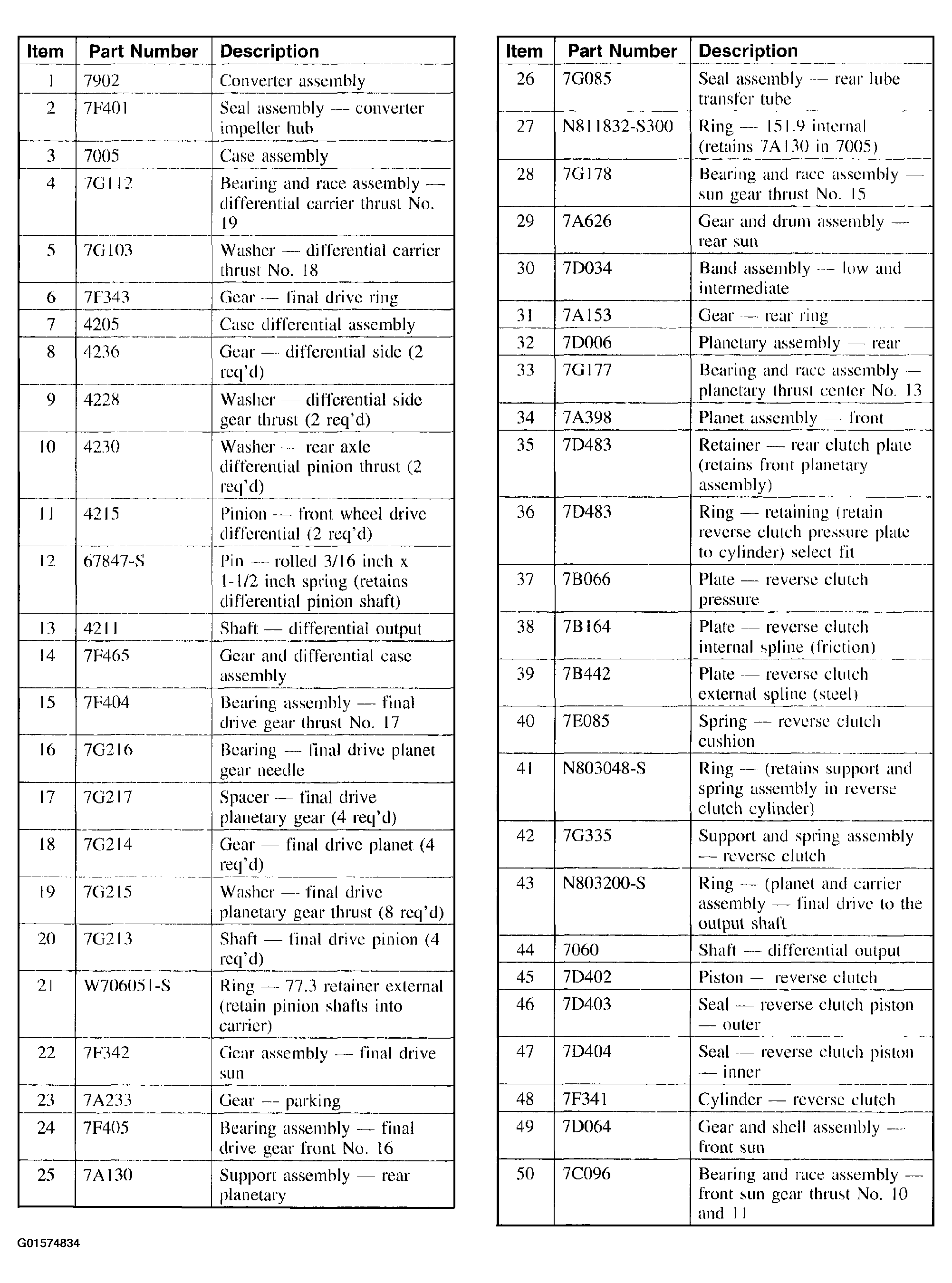

Fig 3: Identifying Disassembled Views (3 Of 7)

G01574834

Courtesy of FORD MOTOR CO.

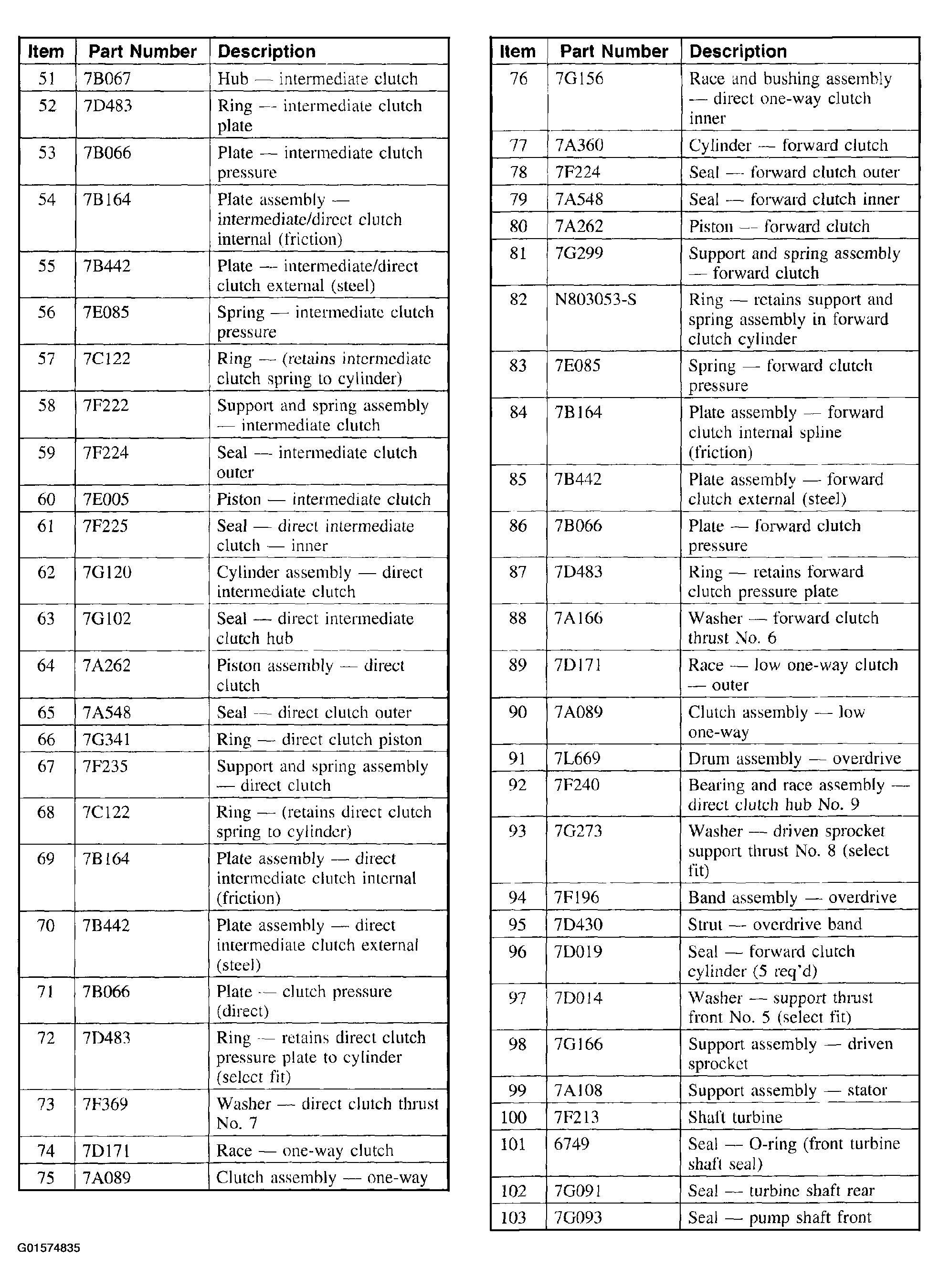

Fig 4: Identifying Disassembled Views (4 Of 7)

G01574835

Courtesy of FORD MOTOR CO.

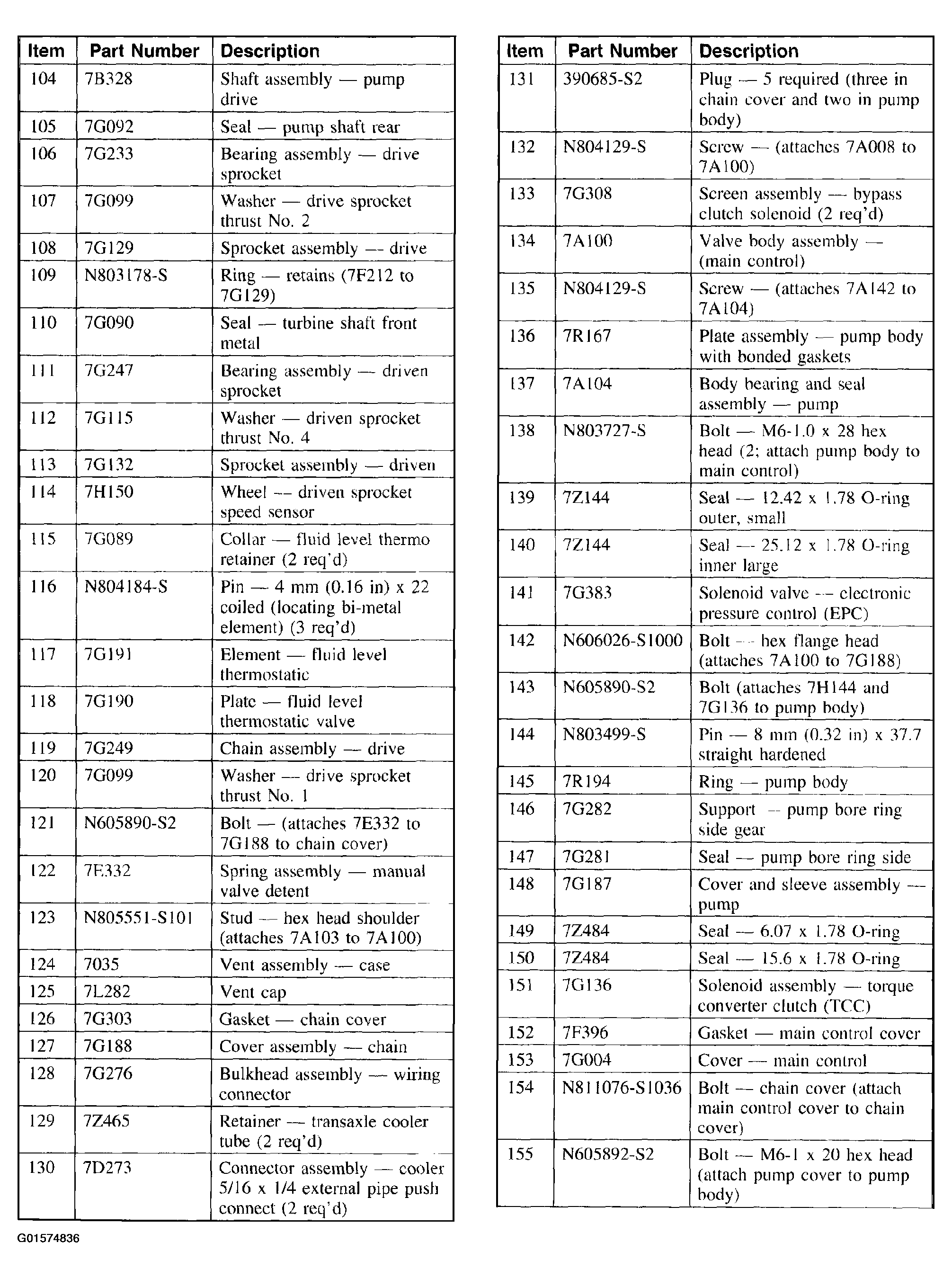

Fig 5: Identifying Disassembled Views (5 Of 7)

G01574836

Courtesy of FORD MOTOR CO.

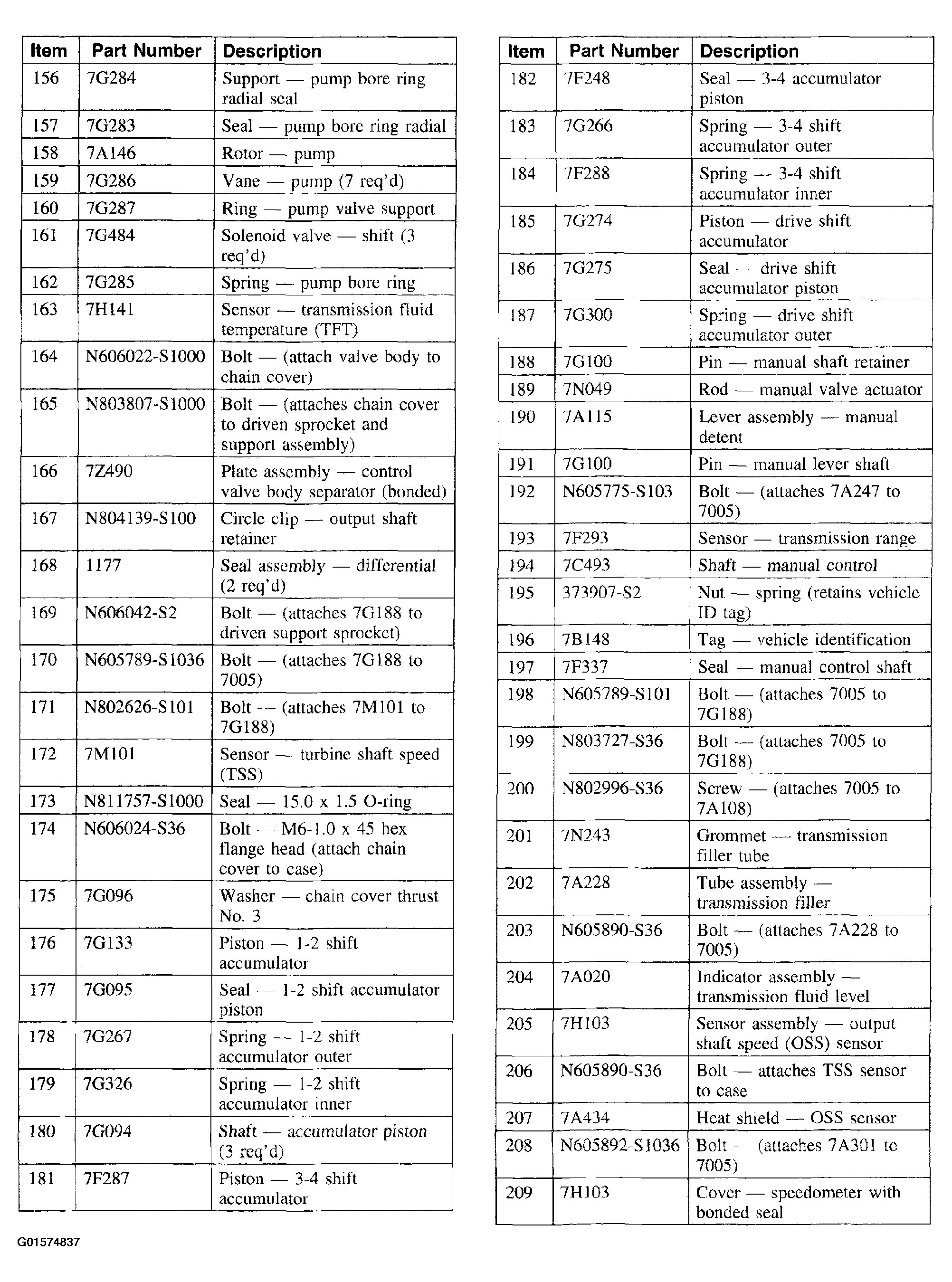

Fig 6: Identifying Disassembled Views (6 Of 7)

G01574837

Courtesy of FORD MOTOR CO.

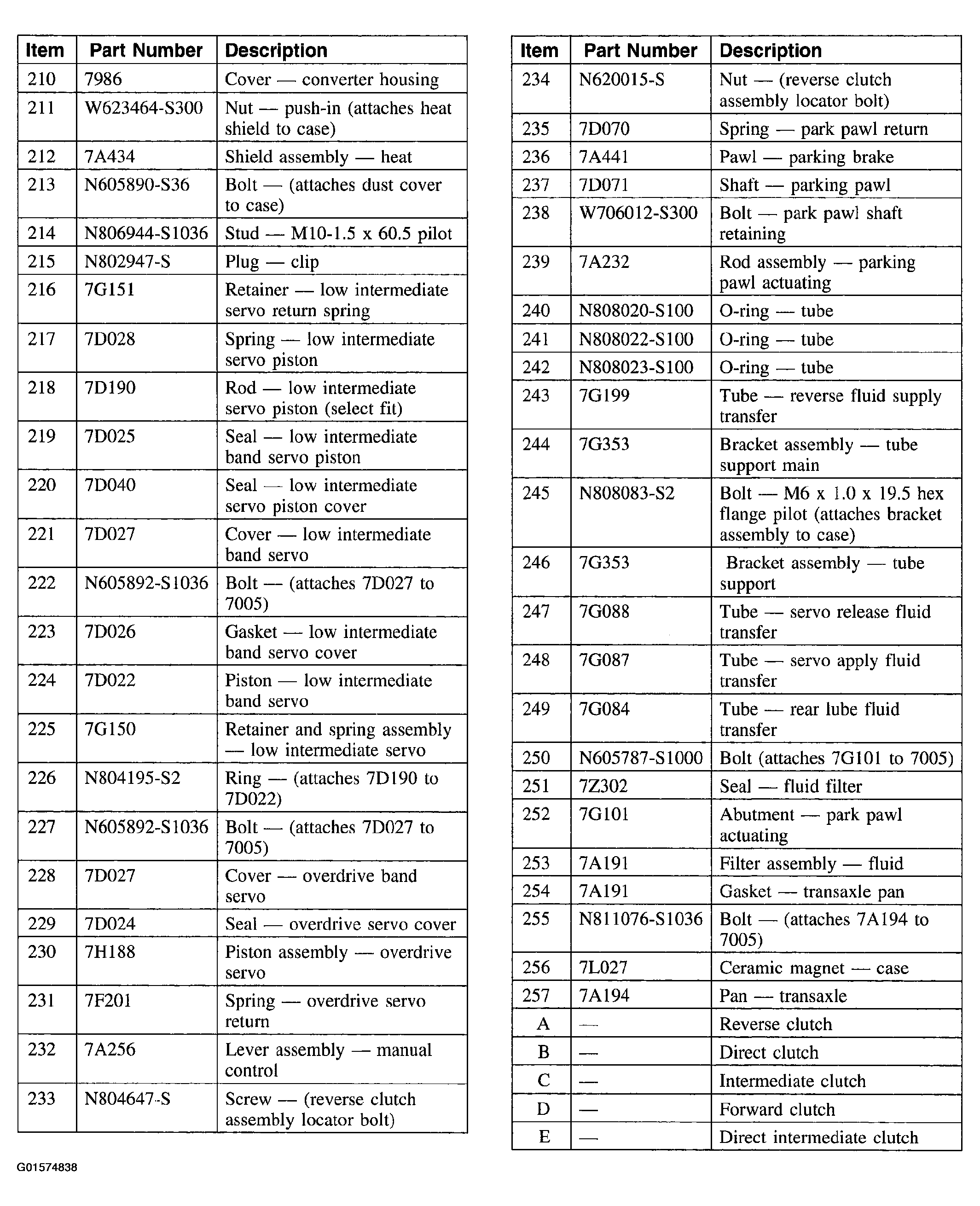

Fig 7: Identifying Disassembled Views (7 Of 7)

G01574838

Courtesy of FORD MOTOR CO.
