Forward Clutch Cylinder: Notes

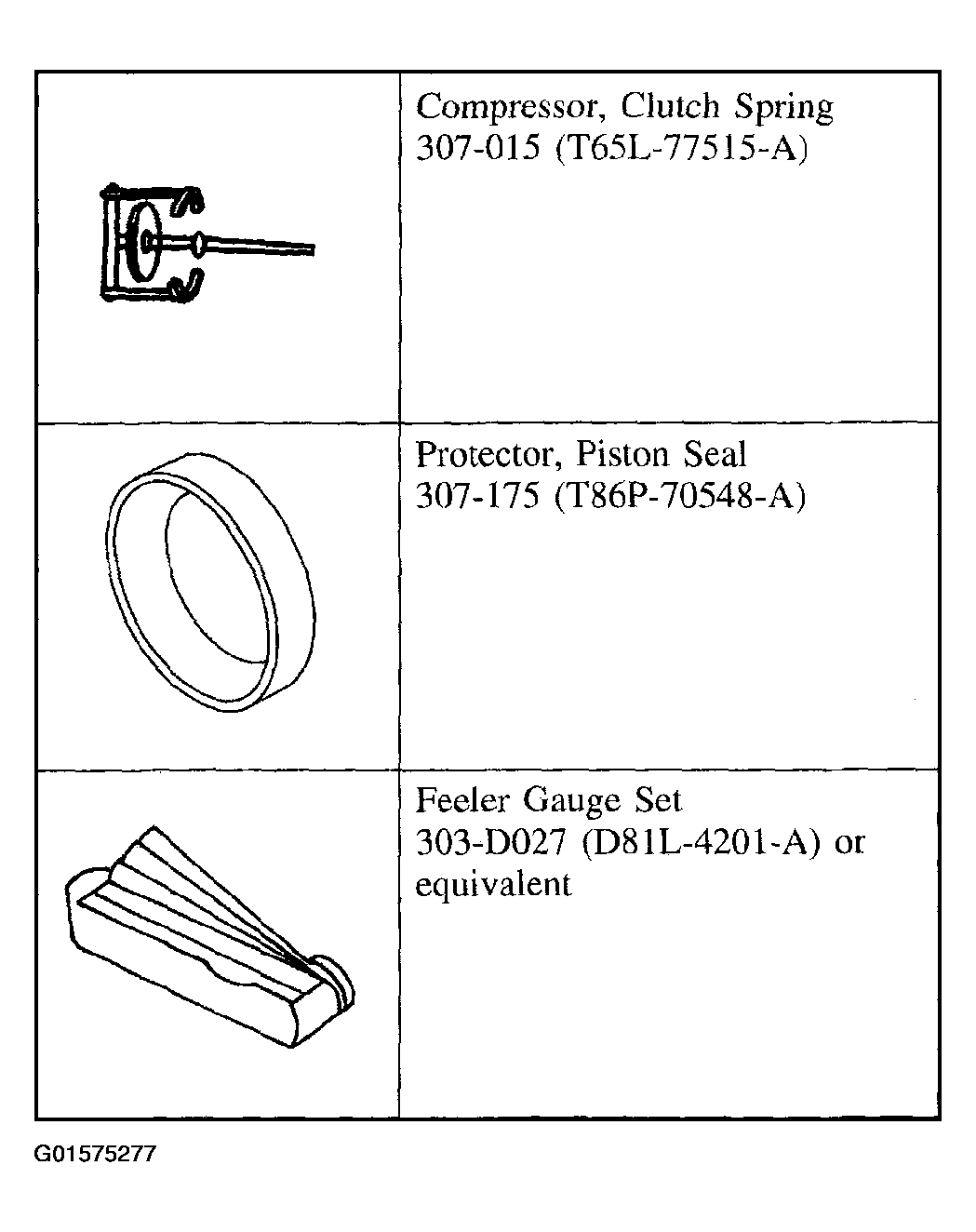

Fig 1: Identifying Special Tools
G01575277Courtesy of FORD MOTOR CO.

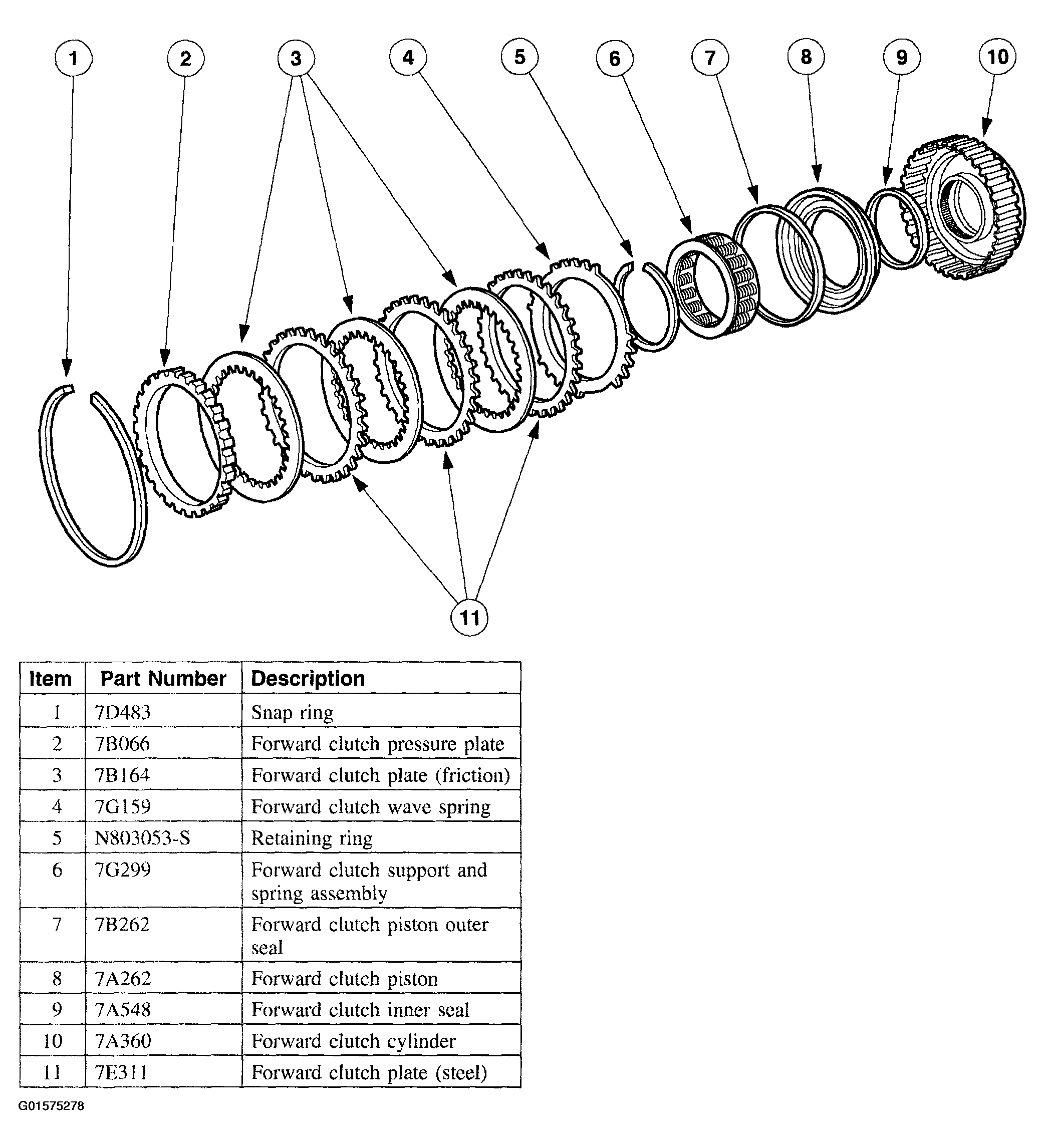

Fig 2: Exploded View Of Forward Clutch Cylinder
G01575278Courtesy of FORD MOTOR CO.
