Removal & Installation

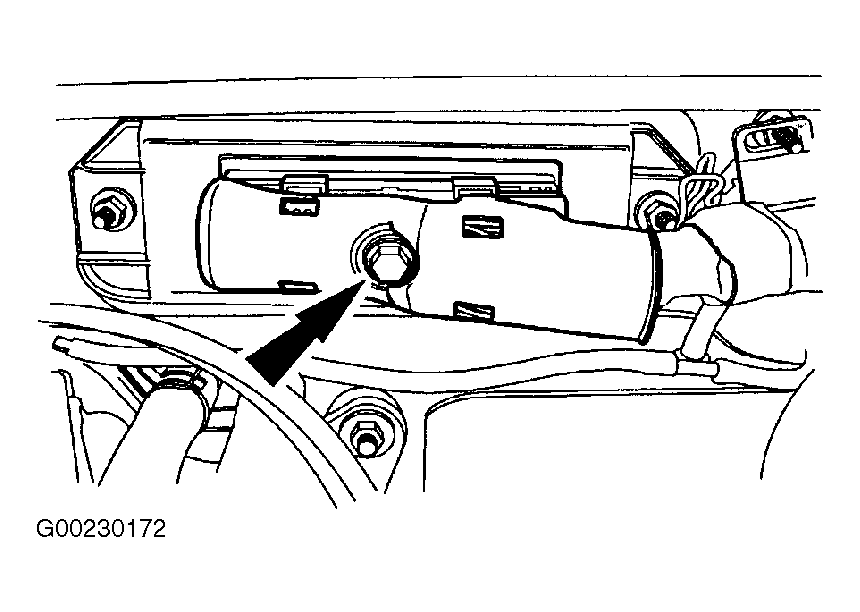

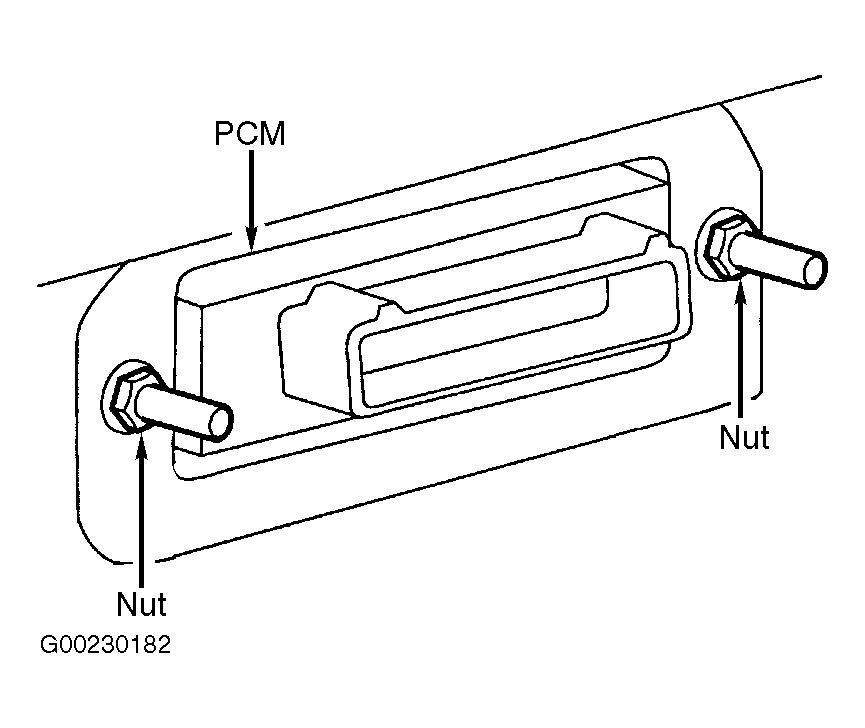

Disconnect negative battery cable. PCM is located in right rear of engine compartment, mounted on cowl. Loosen PCM connector retaining bolt (if equipped). See Fig 1. Unplug harness connector from PCM. Remove the nuts and the PCM cover. Remove PCM. See Fig 2. To install, reverse removal procedure. Tighten cover and connector bolts to specification. See TORQUE SPECIFICATIONS .
