Fuel Pump Module: Notes
CAUTION:
The fuel pump module must be handled carefully to avoid damage to the float arm, filter, and convolute hoses. Fuel modules will contain residual fuel. Lift straight up and out of tank to drain remaining fuel out of reservoir. Drain excess fuel into suitable container.
NOTE:

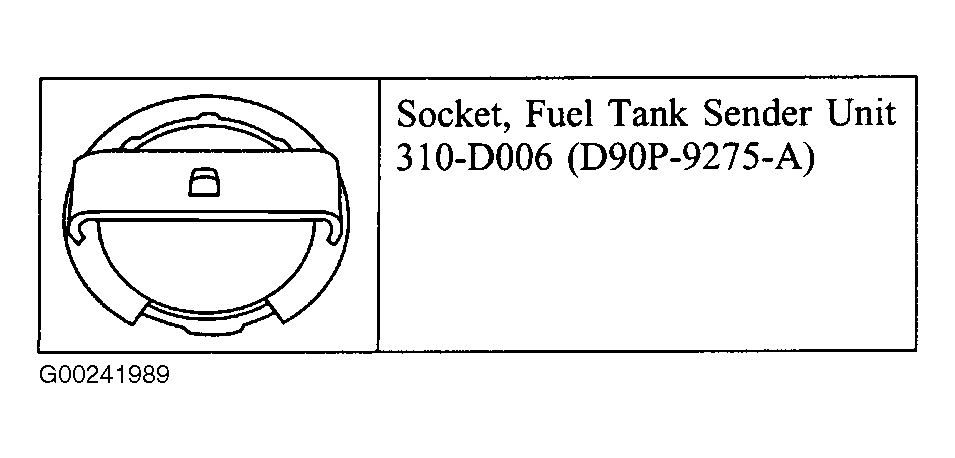

Fuel Tank Sender Unit Socket (D90P-9275-A) is required to perform this procedure. See Figure. Fuel pump module may also be referred to as Fuel Pump Delivery Module (FPDM).
