Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module | Left front of engine compartment, below battery. |
| Electronic Flasher Module | In central junction box. |
| Flexible Fuel Sensor Module | Behind center of dash, near instrument cluster. |
| Front Blower Motor Speed Controller | Behind center of dash, near HVAC unit. |

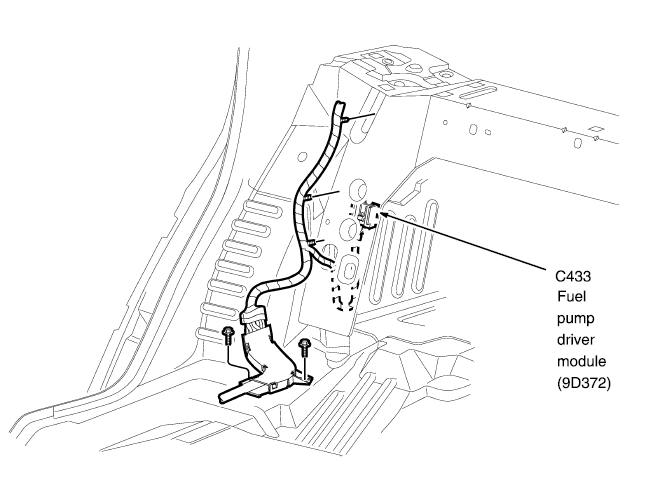

| Fuel Pump Driver Module (FPDM) | Behind right side luggage compartment trim panel. See Figure. |
| Generic Electronic Module (GEM) | Under left side of dash. |
| Passenger's Air Bag Module | Behind right side of dash, near glove box. |
| Passive Anti-Theft System (PATS) Transceiver Module | On steering column, near ignition switch. |
| Phone Adapter System (PAS) Module | At center console. |
| Power Antenna Module | In left side of luggage compartment. |
| Powertrain Control Module (PCM) | Right rear corner of engine compartment, mounted in firewall. See Figure. |
| Pulse Stretcher Module (Wagon) | In liftgate. |
| Rear Control Unit | In left side of luggage compartment. |
| Remote Climate Control (RCC) Module | Behind center of dash, near glove box. |
| Restraints Control Module | Under center of dash. |
| Side Air Bag Module (Left) | Inside outer portion of left front seat back. |
| Side Air Bag Module (Right) | Inside outer portion of right front seat back. |
| Wireless Interface Module | In left side of luggage compartment. |
