Torque Specifications

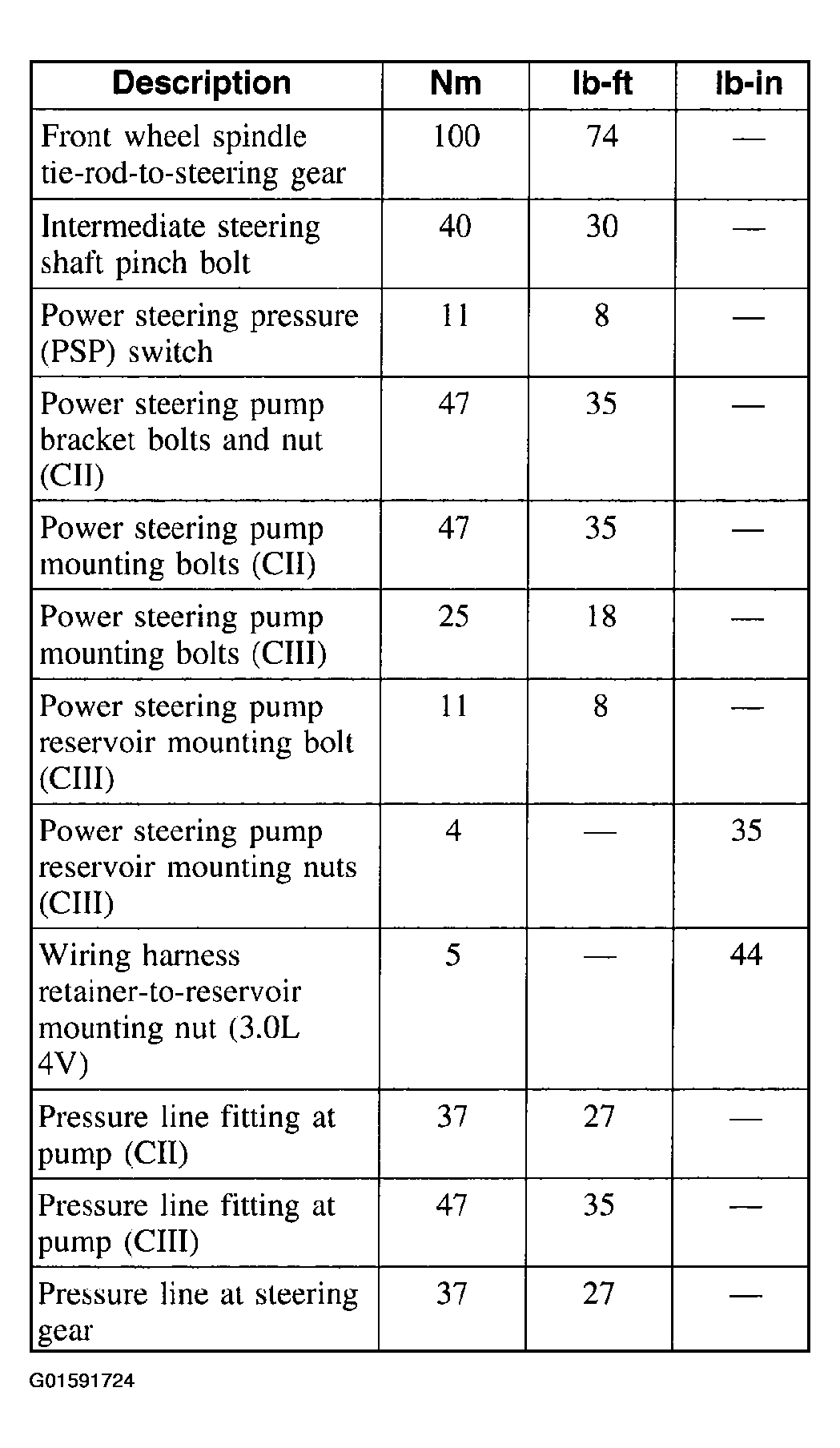

Fig 1: Power Steering Torque Specifications Chart (1 Of 2)
G01591724Courtesy of FORD MOTOR CO.

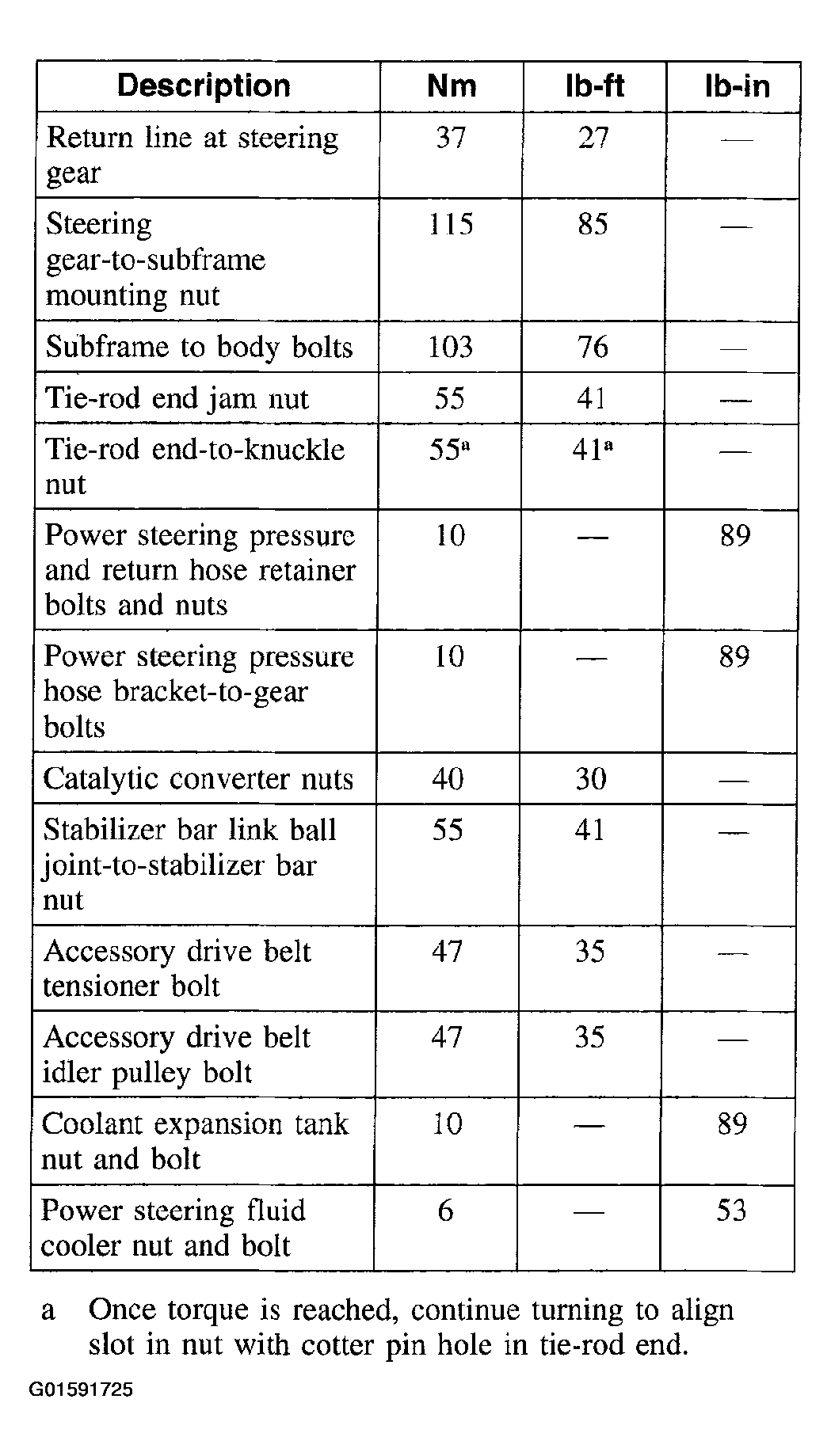

Fig 2: Power Steering Torque Specifications Chart (2 Of 2)
G01591725Courtesy of FORD MOTOR CO.
