Rear (Sedan)

  1. Loosen the nuts approximately one full turn. See Fig 1 . Rotate the adjusting cam to achieve the specified toe setting. See Fig 2 . See WHEEL ALIGNMENT SPECIFICATIONS  .
  2. Make sure that the toe settings are not disturbed while tightening the nuts. While holding the adjusting cam, tighten the nuts to specification. See TORQUE SPECIFICATIONS  .

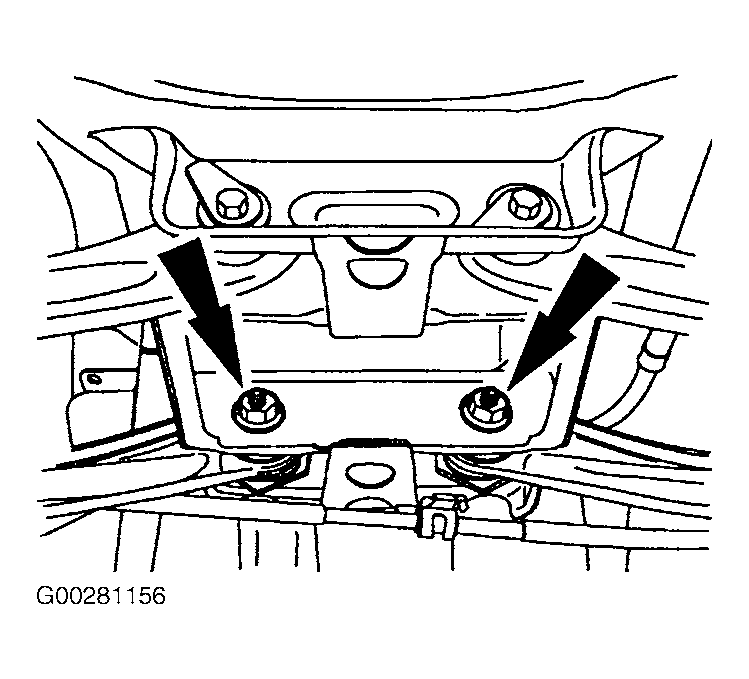

Fig 1: Locating Rear Toe Cam Adjusting Nuts (Sedan)
G00281156Courtesy of FORD MOTOR CO.

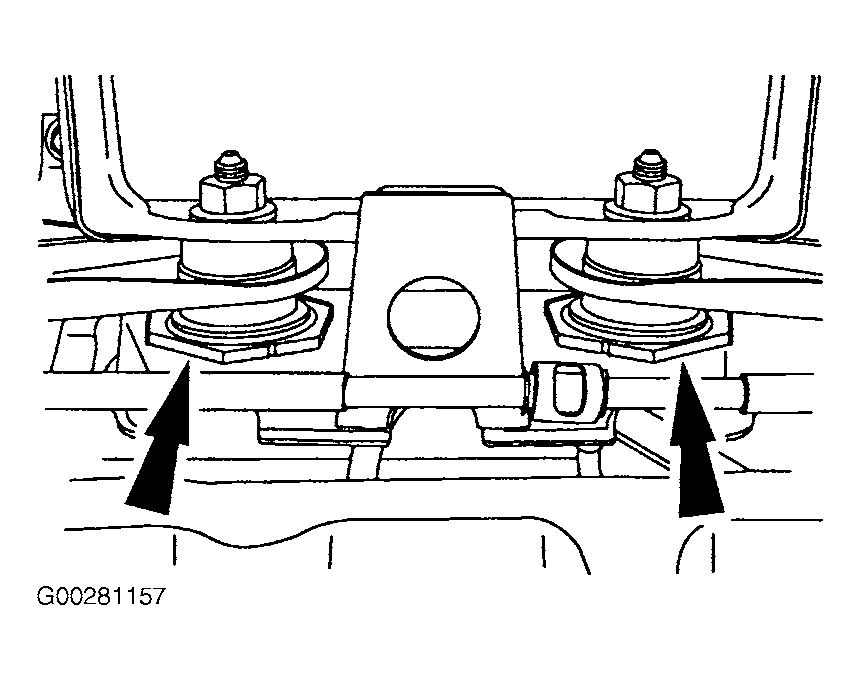

Fig 2: Adjusting Rear Toe (Sedan)
G00281157Courtesy of FORD MOTOR CO.
