Pinpoint Test H: The Panic Feature Is Inoperative Using The Keyless Entry Remote Transmitter

Fig 1: Pinpoint Test H: Panic Feature Inoperative Using Keyless Entry Remote Transmitter (Steps H1-H2)

Courtesy of FORD MOTOR CO.

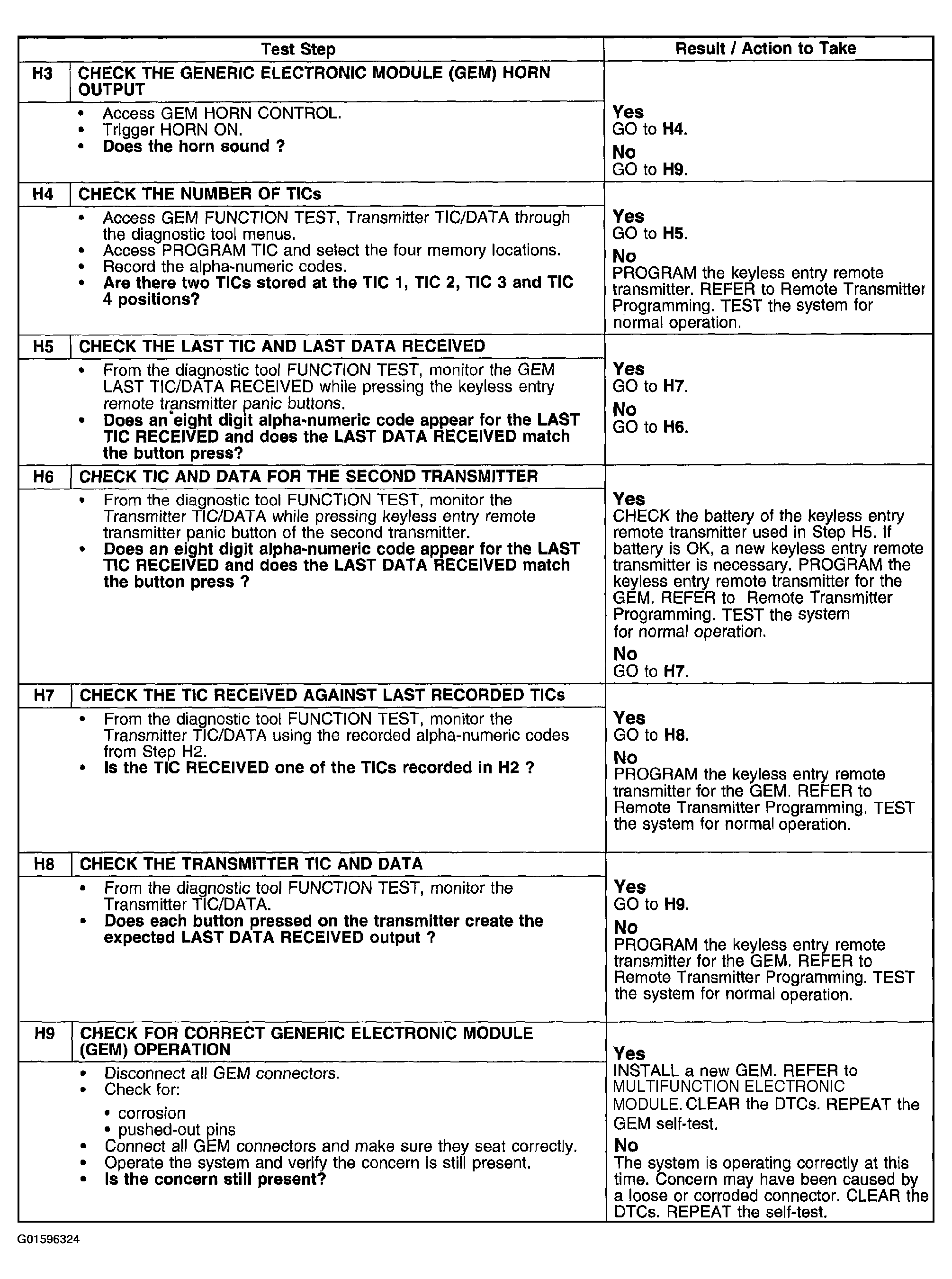

Fig 2: Pinpoint Test H: Panic Feature Inoperative Using Keyless Entry Remote Transmitter (Steps H3-H9)

Courtesy of FORD MOTOR CO.
