Manual Climate Control System Electrical Components

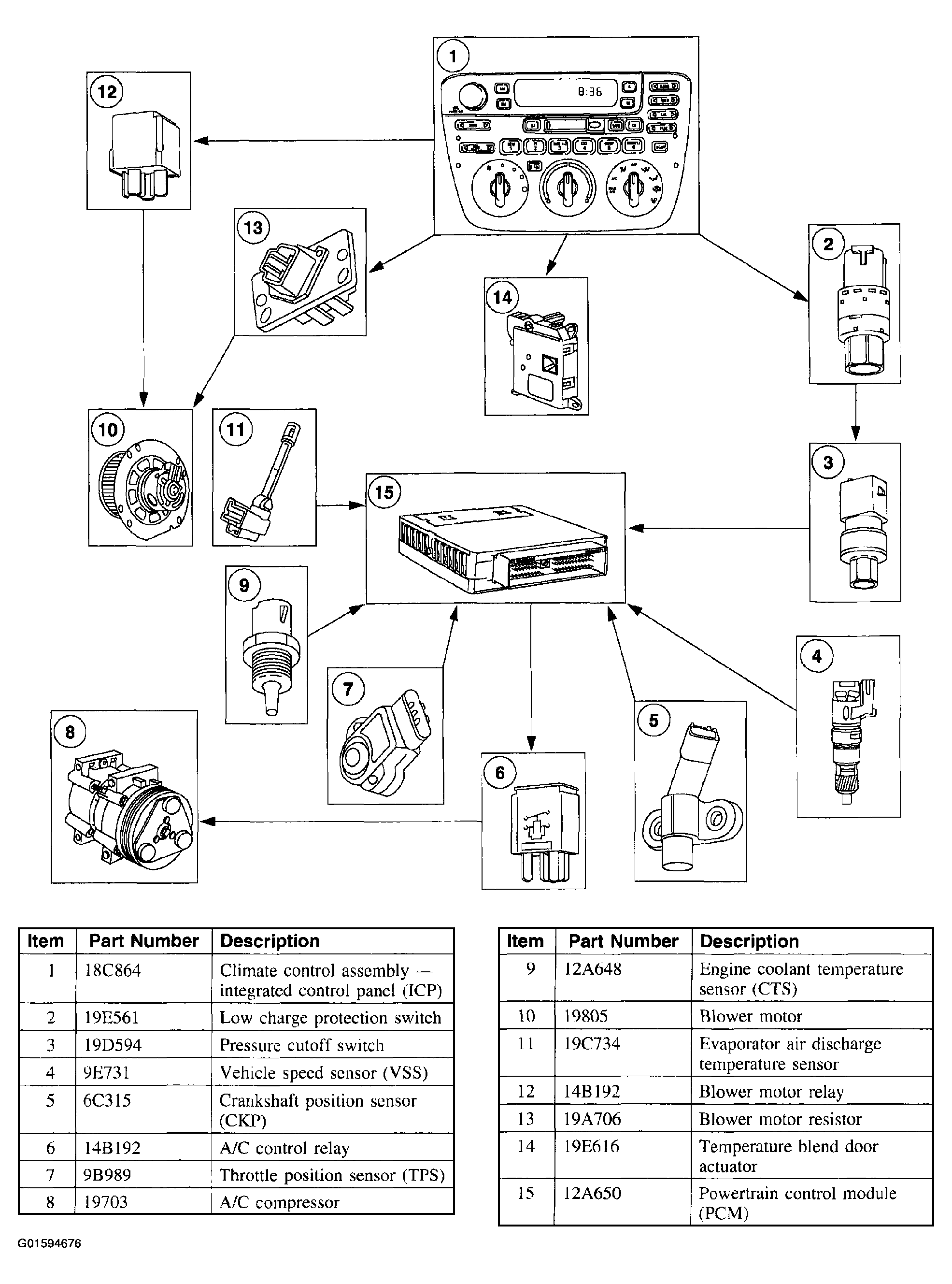

Fig 1: Identifying Manual Climate Control System Electrical Components
G01594676Courtesy of FORD MOTOR CO.
