Pinpoint Test F: No Communication With Remote Climate Control Module - EATC

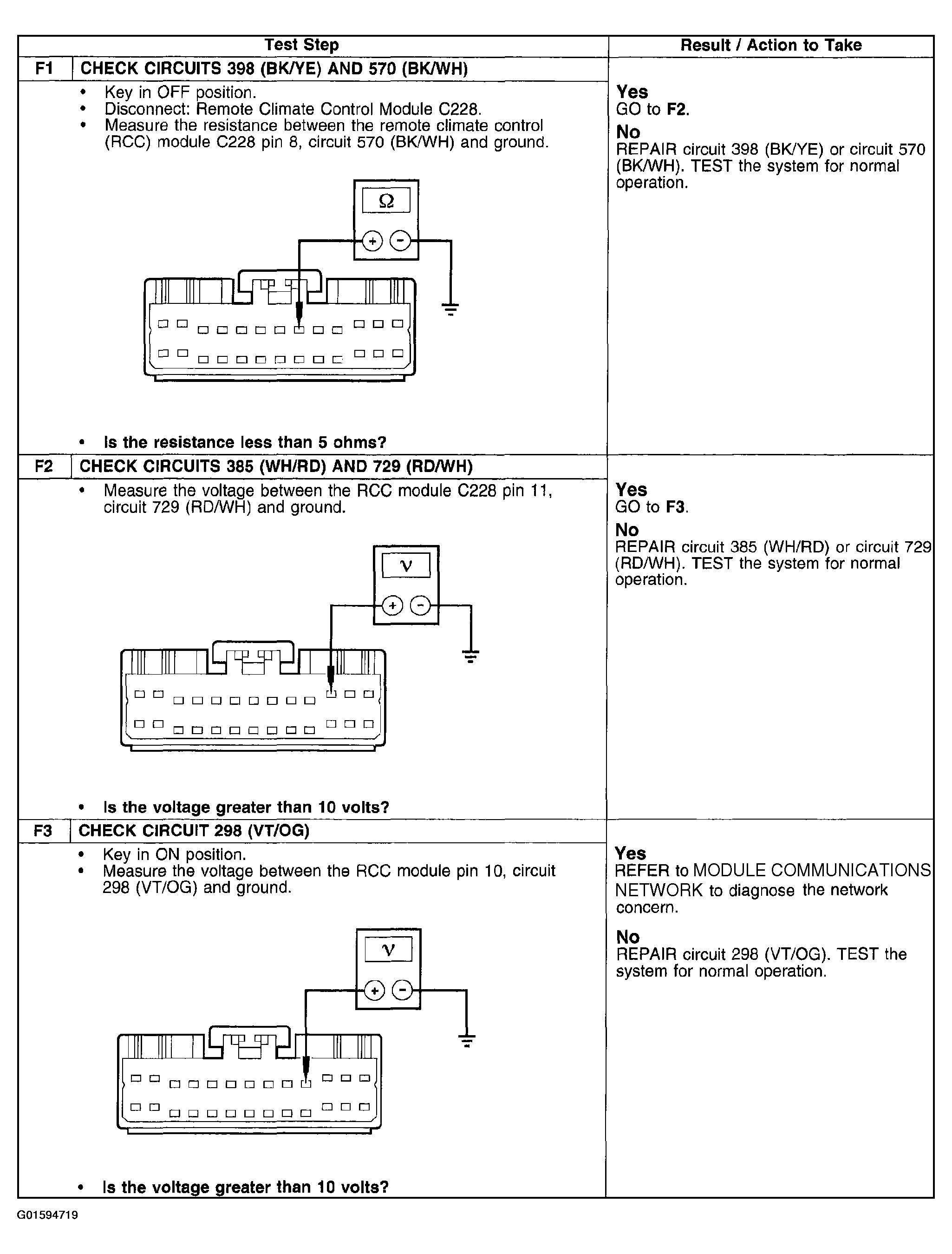

Fig 1: Pinpoint Test F: No Communication With Remote Climate Control Module - EATC (Step F1-F3)
G01594719Courtesy of FORD MOTOR CO.
