Low And Intermediate Servo: Notes

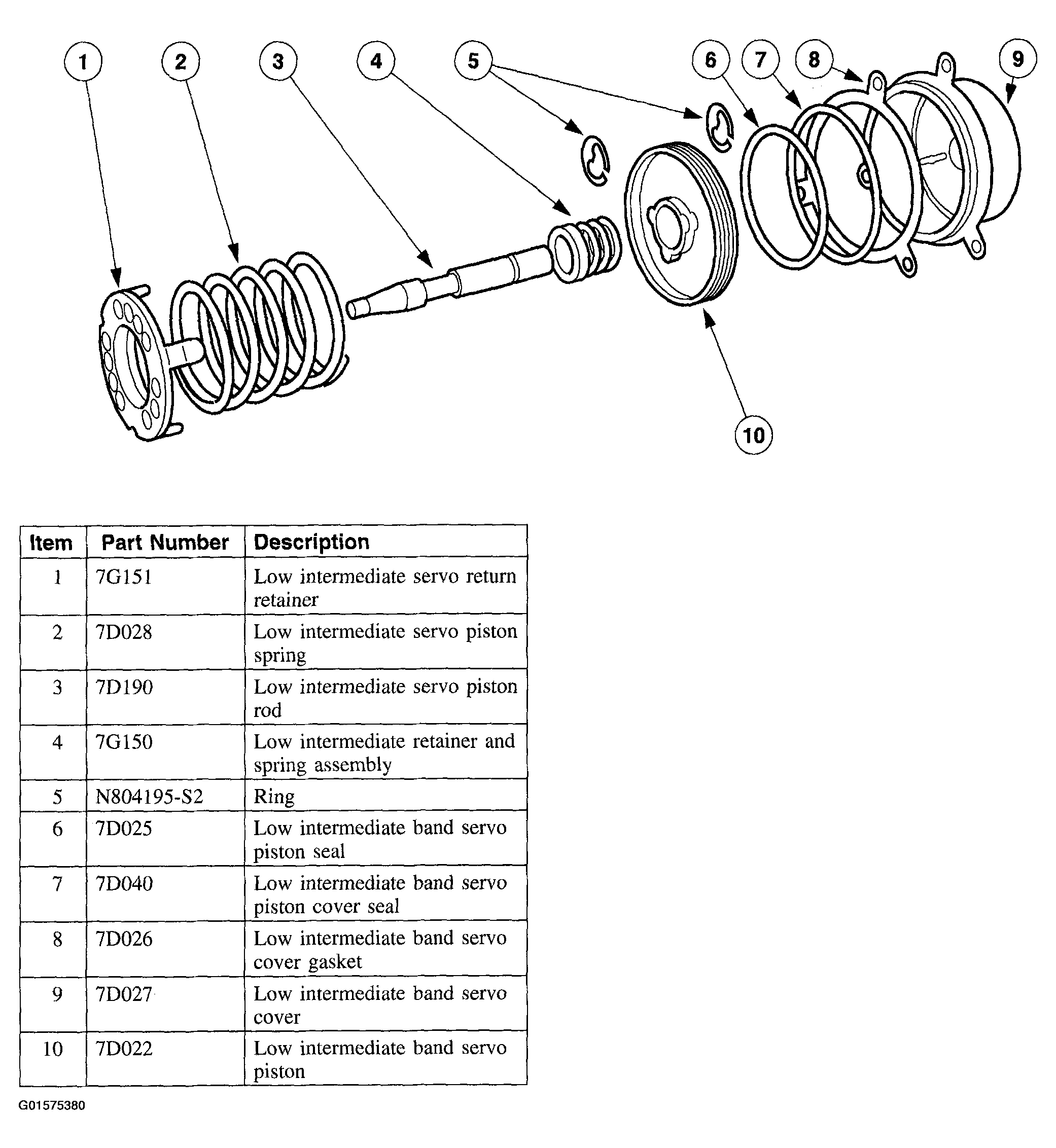

Fig 1: Exploded View Of Low And Intermediate Servo
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
