Test F

PINPOINT TEST F: NO SCP NETWORK COMMUNICATION

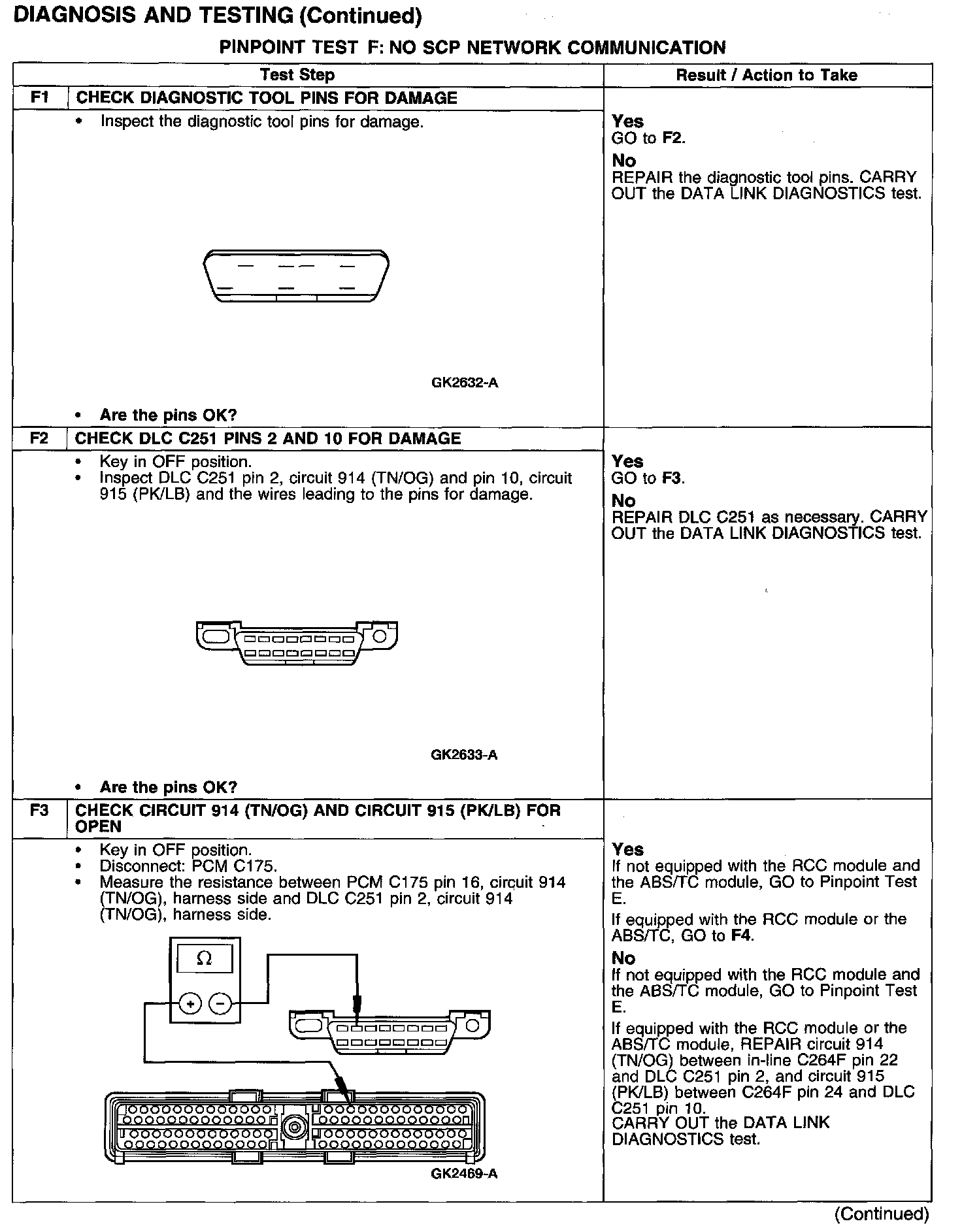

Test F1-F3:

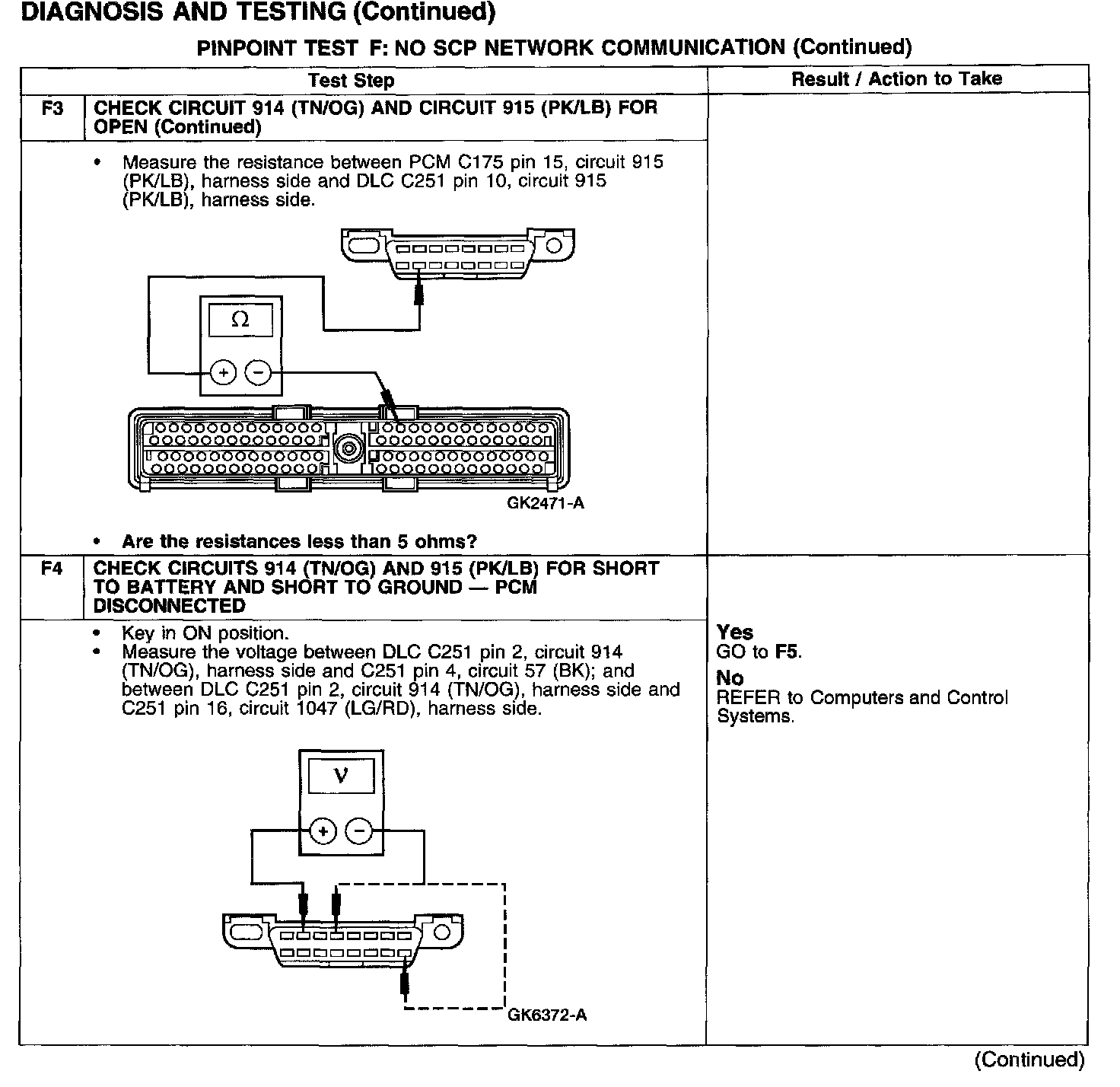

Test F3-F4:

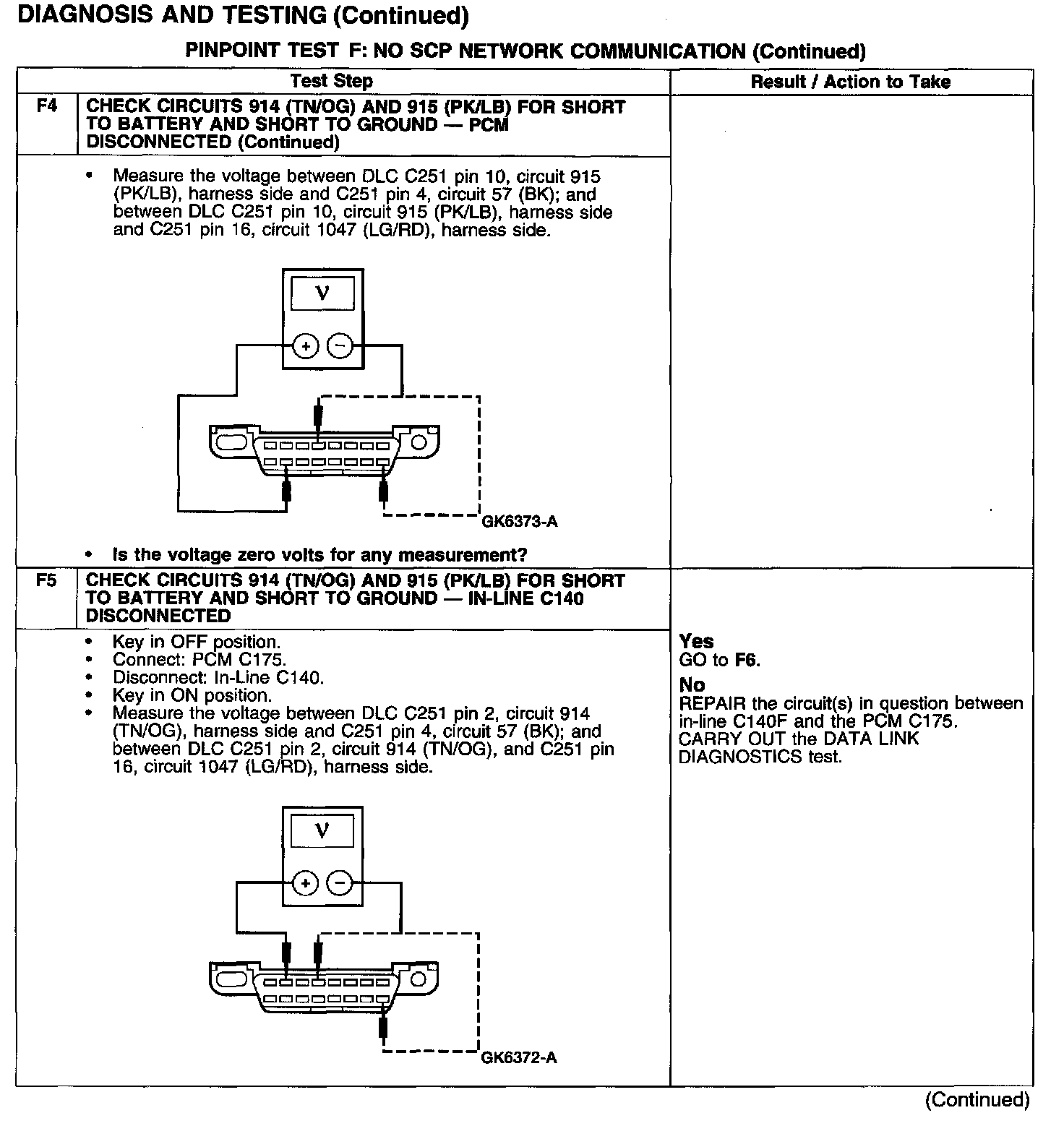

Test F4-F5:

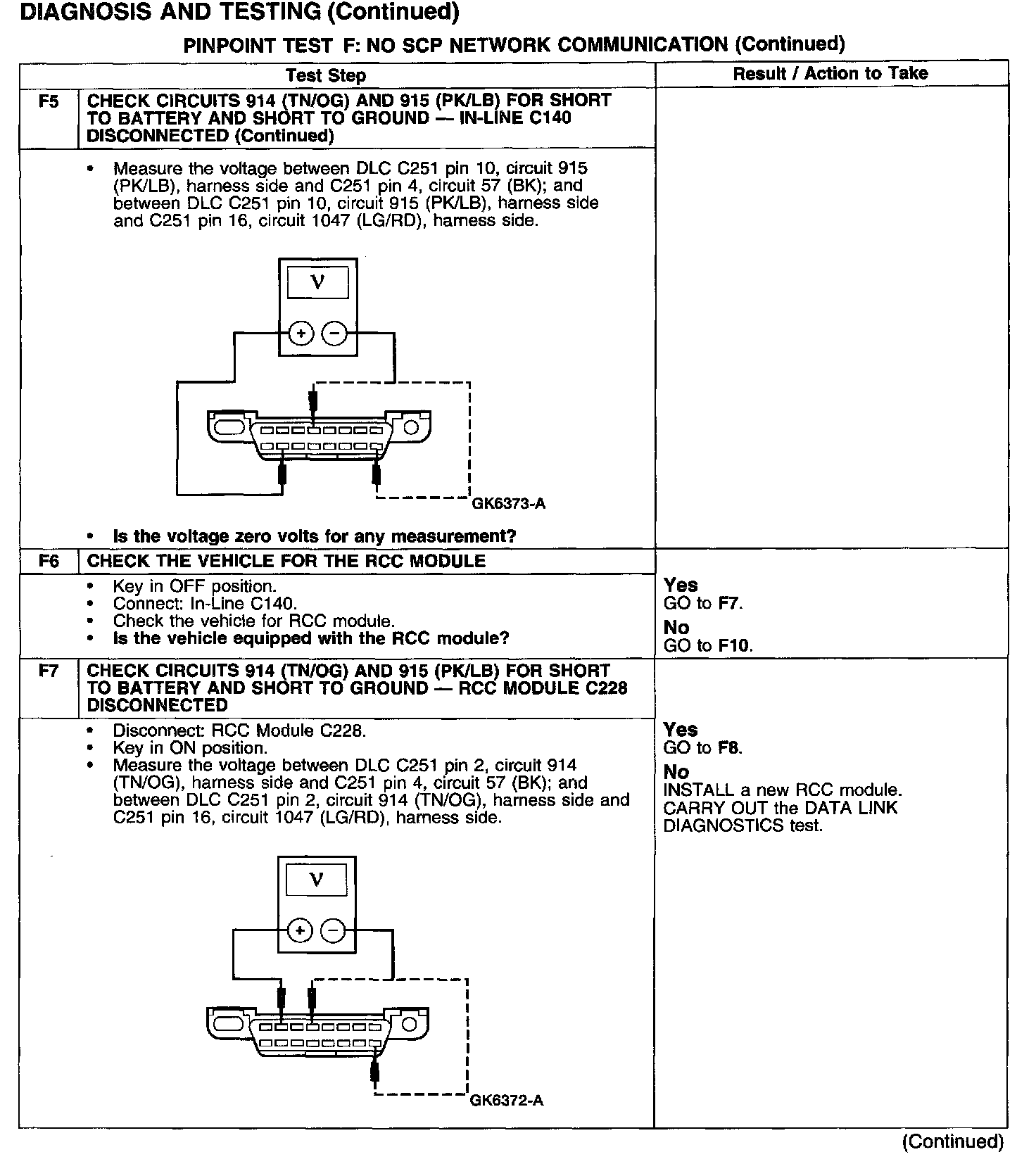

Test F5-F7:

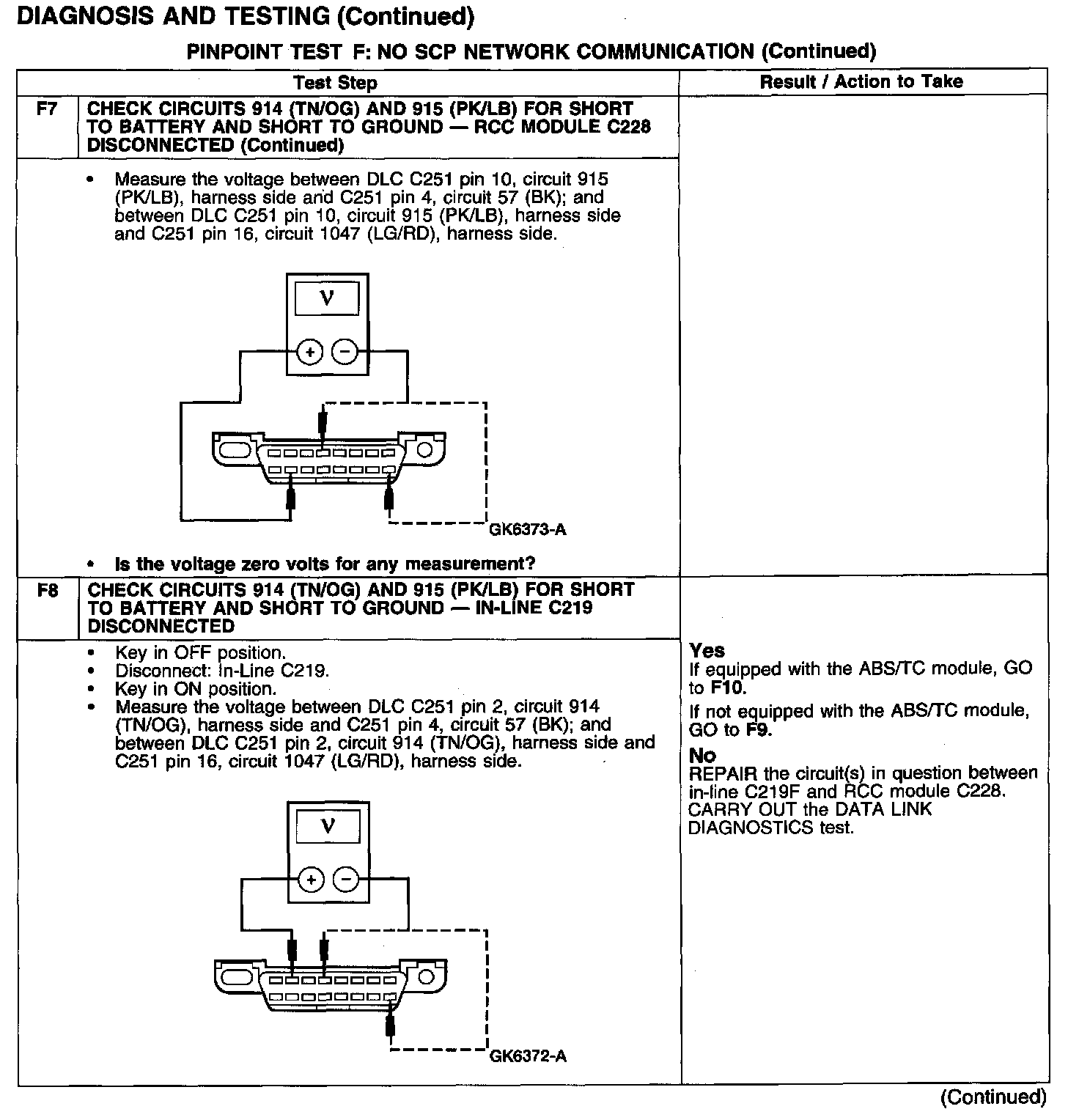

Test F7-F8:

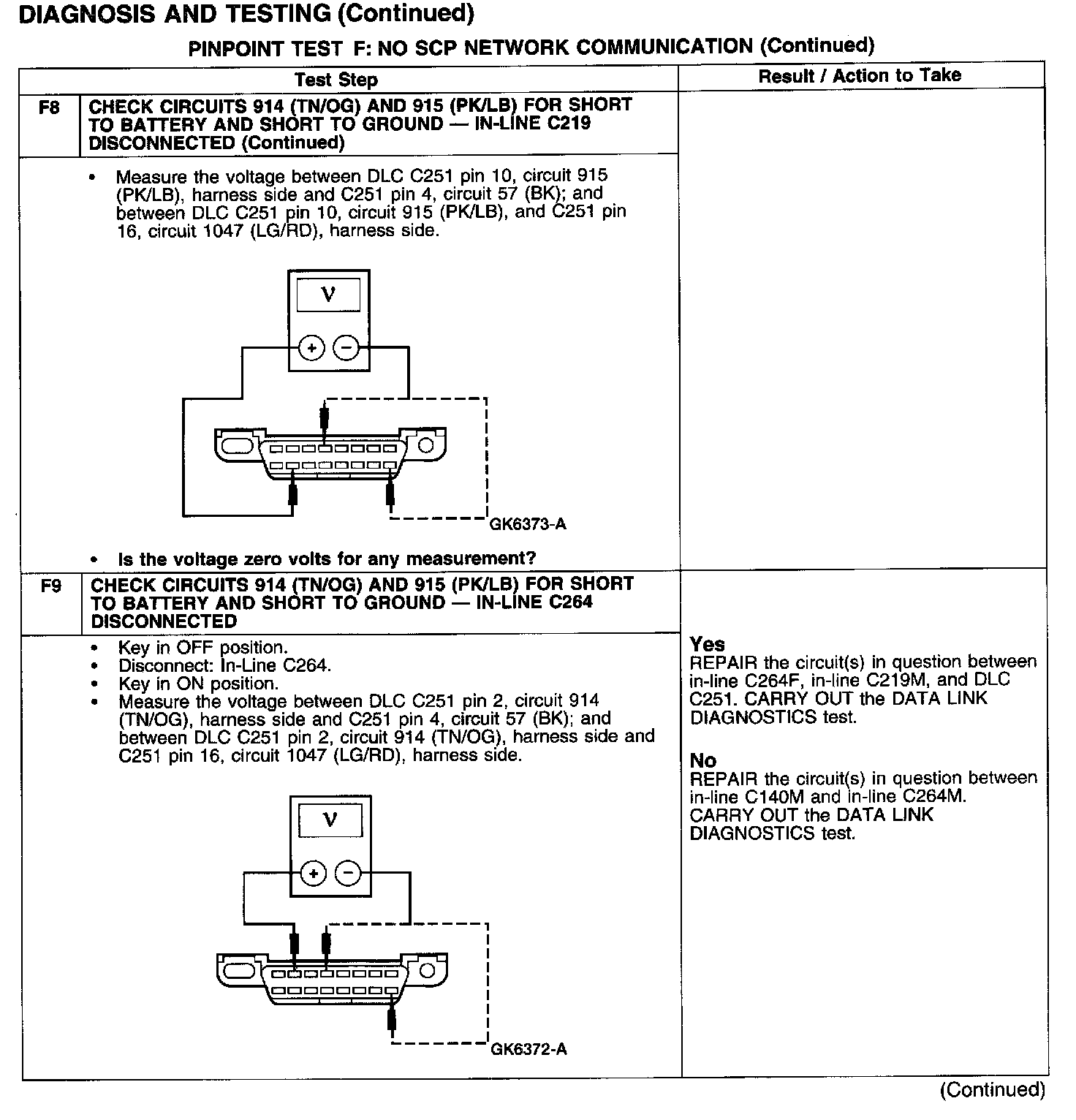

Test F8-F9:

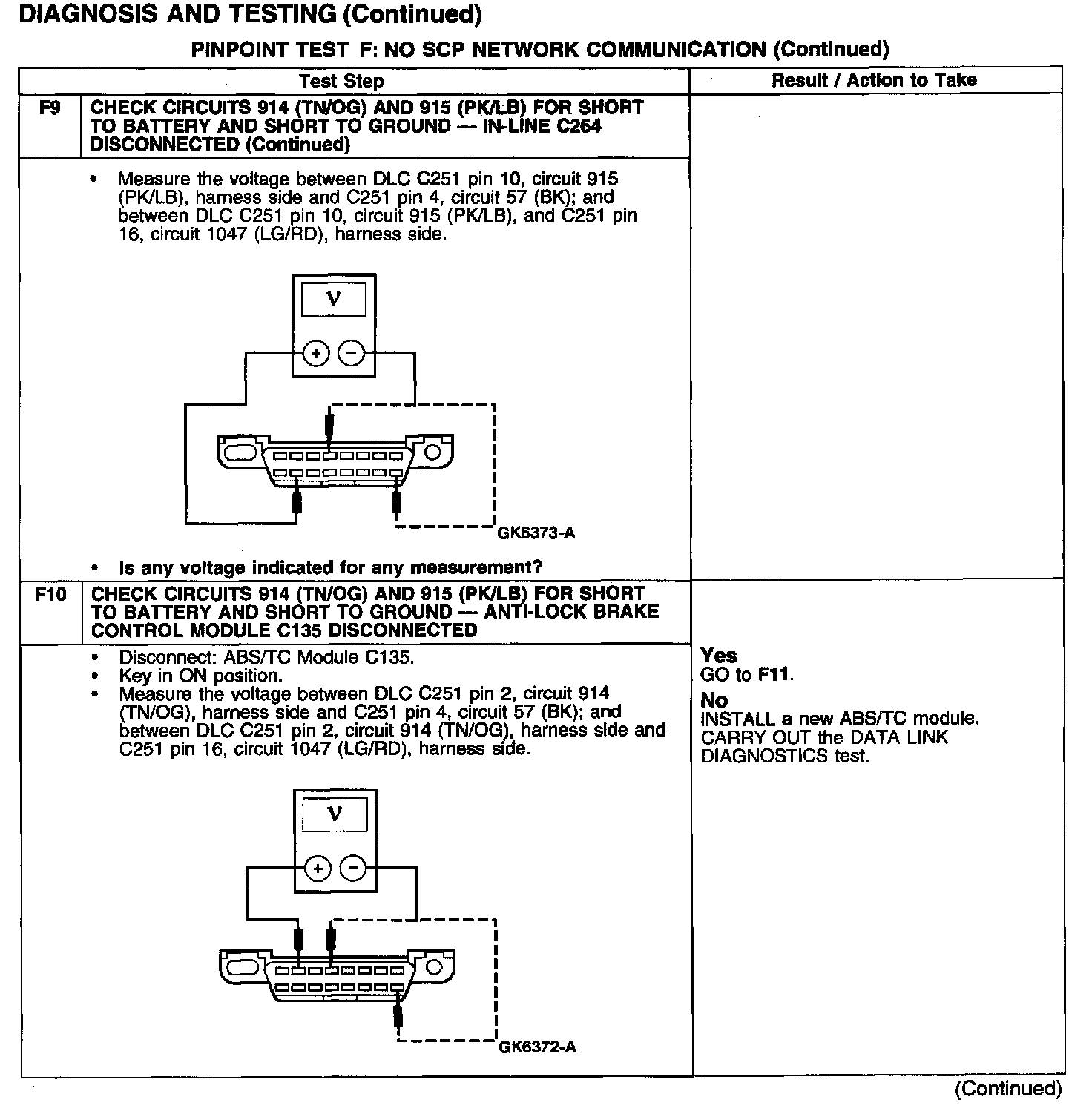

Test F9-F10:

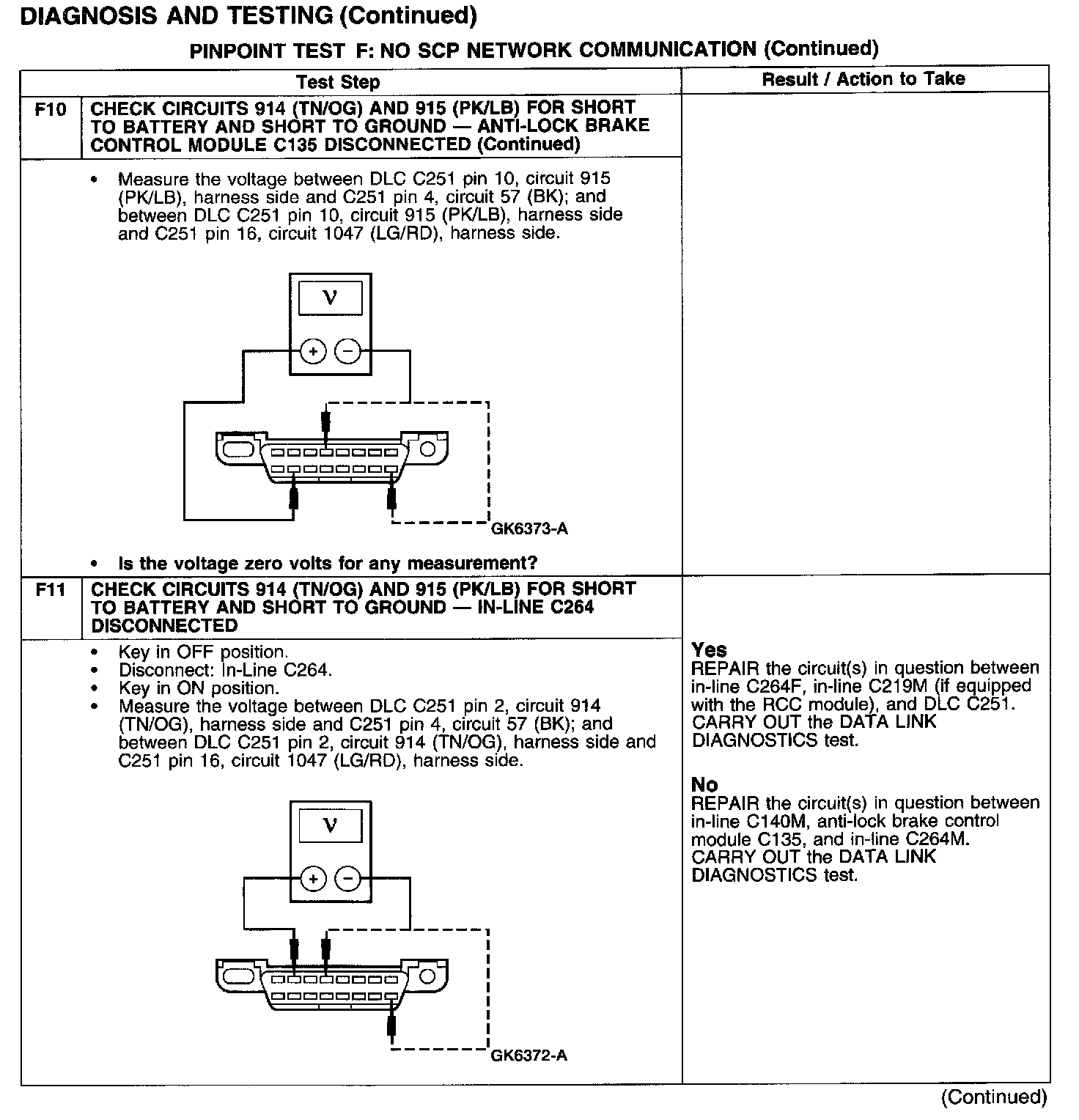

Test F10-F11:

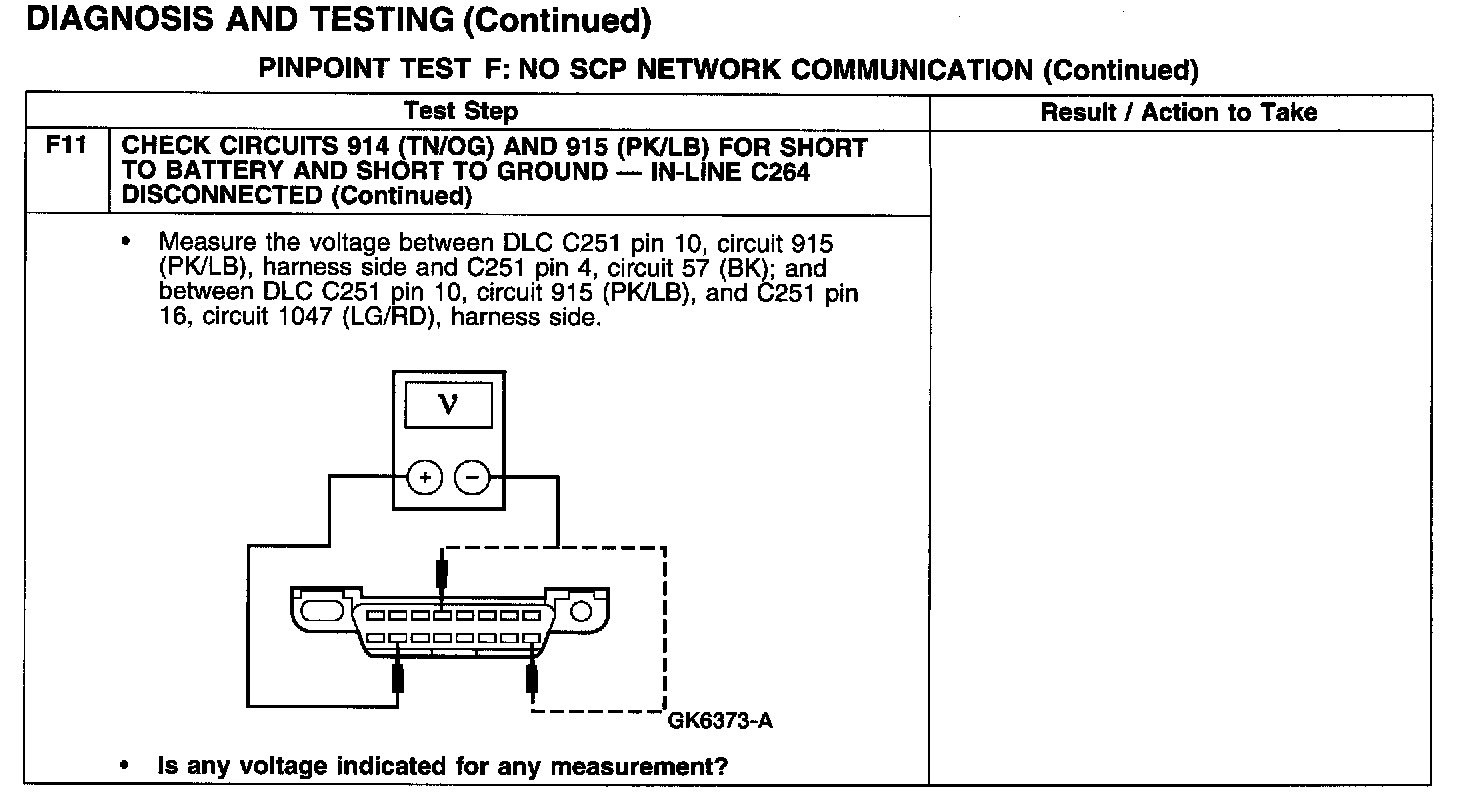

Test F11 Continued:
