Knock Sensor: Service and Repair

KNOCK SENSOR (KS)

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the intake manifold.

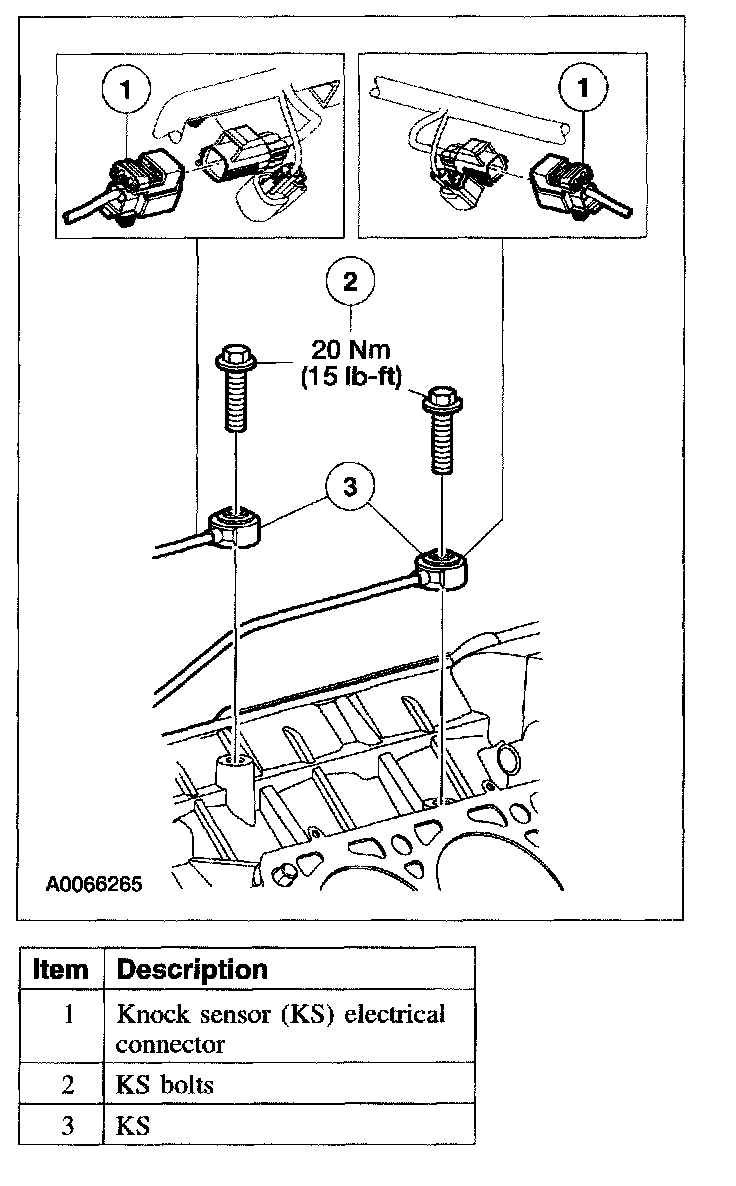

3. Remove the components in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.
