System Specifications

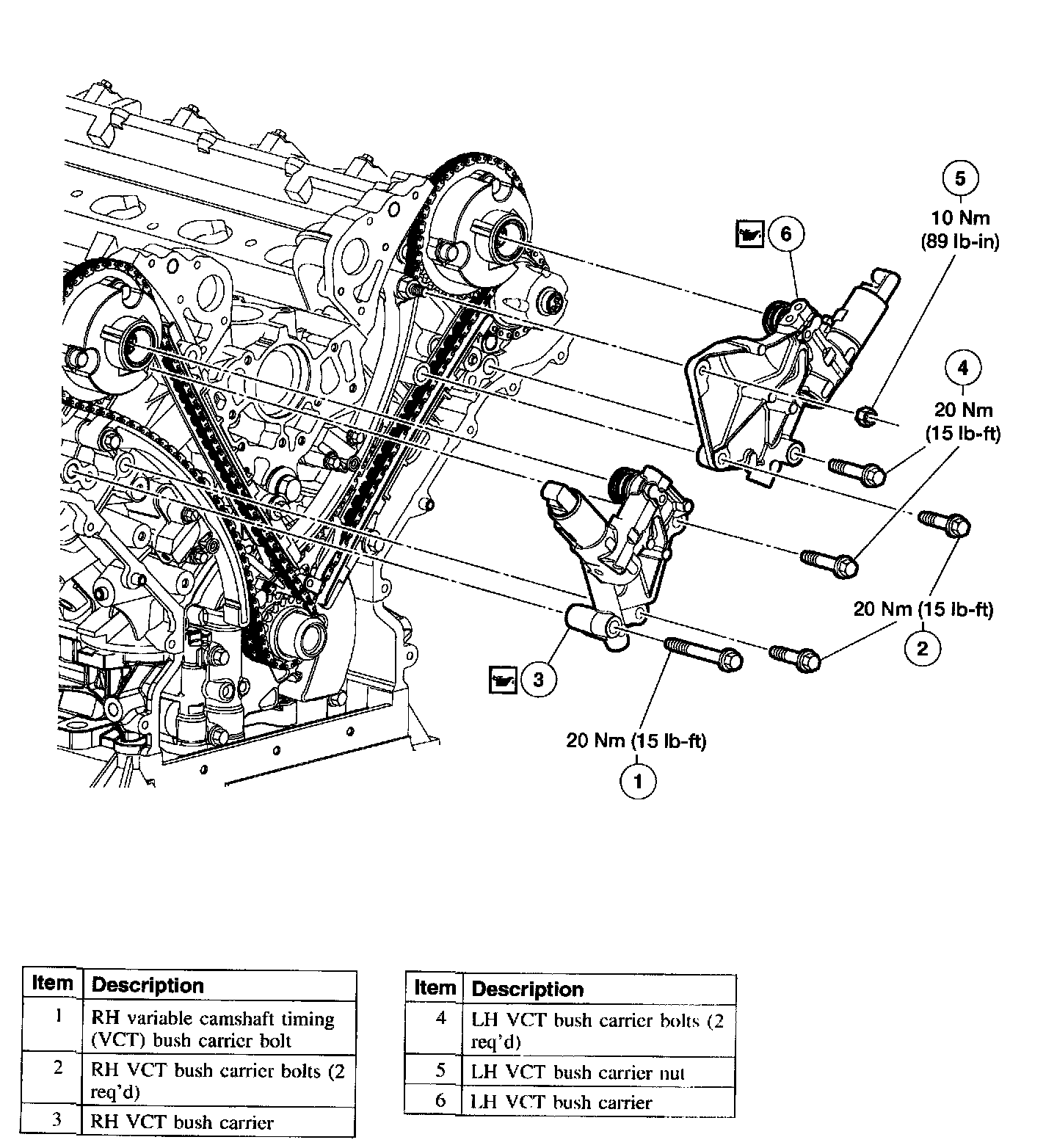

VCT bush carrier nuts and bolts

Timing Chain Guide 11 Nm (97 inch lbs.)

Timing Chain Tensioner Arm 11 Nm (97 inch lbs.)

Timing Chain Tensioner 11 Nm (97 inch lbs.)

Camshaft Sprocket bolt
Stage 1 35 Nm (26 ft. lbs.)
Stage 2 additional 90°
