Headlamp Switch, Autolamp Section

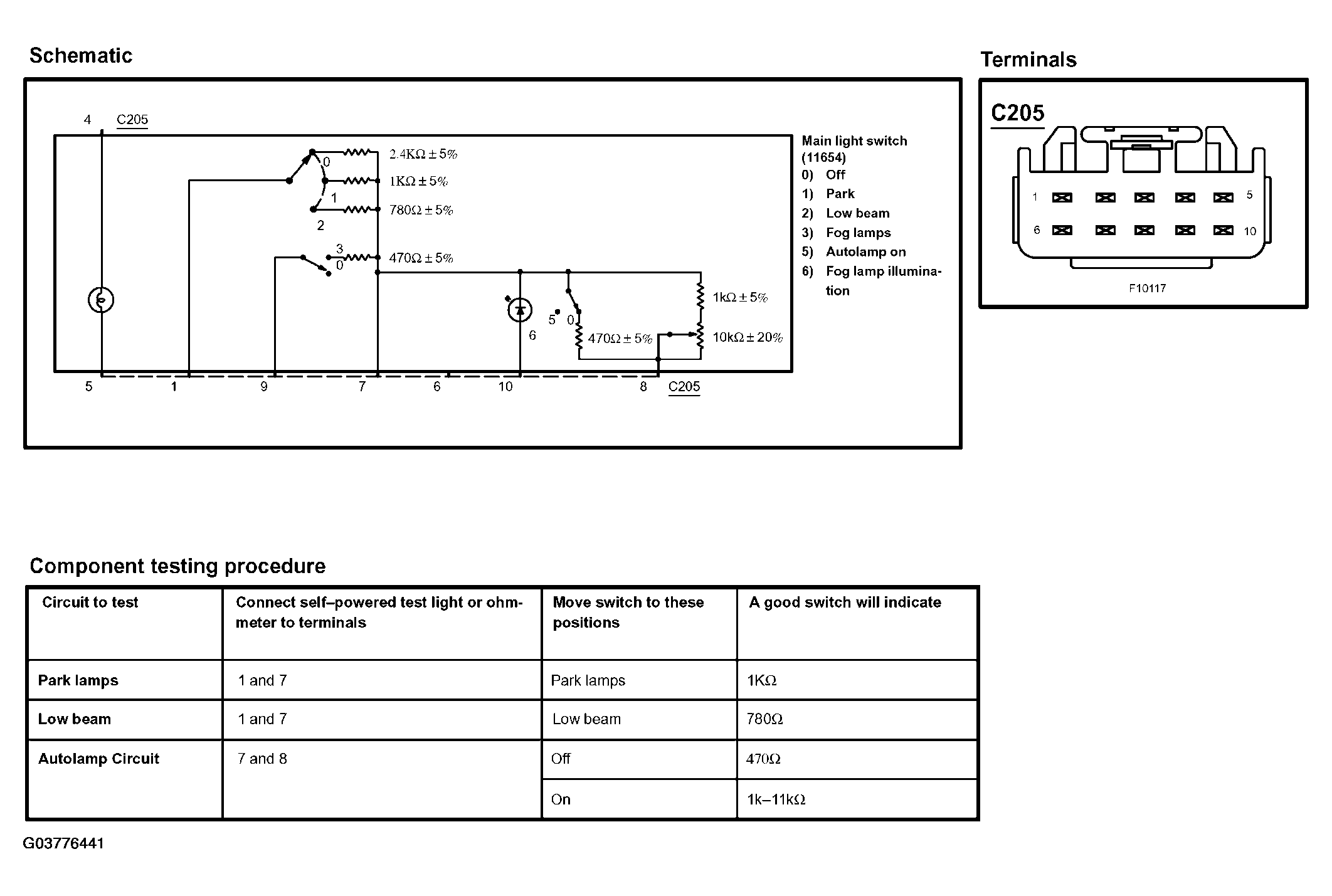

Fig 1: Testing Headlamp Switch (Autolamp Section)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
