PCM C175b

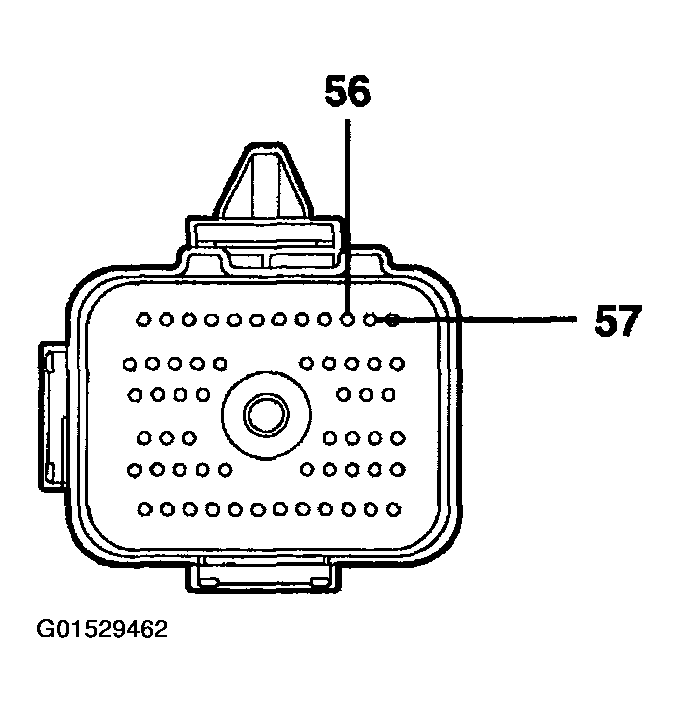

Fig 1: PCM C175b Connectors
Courtesy of FORD MOTOR CO.

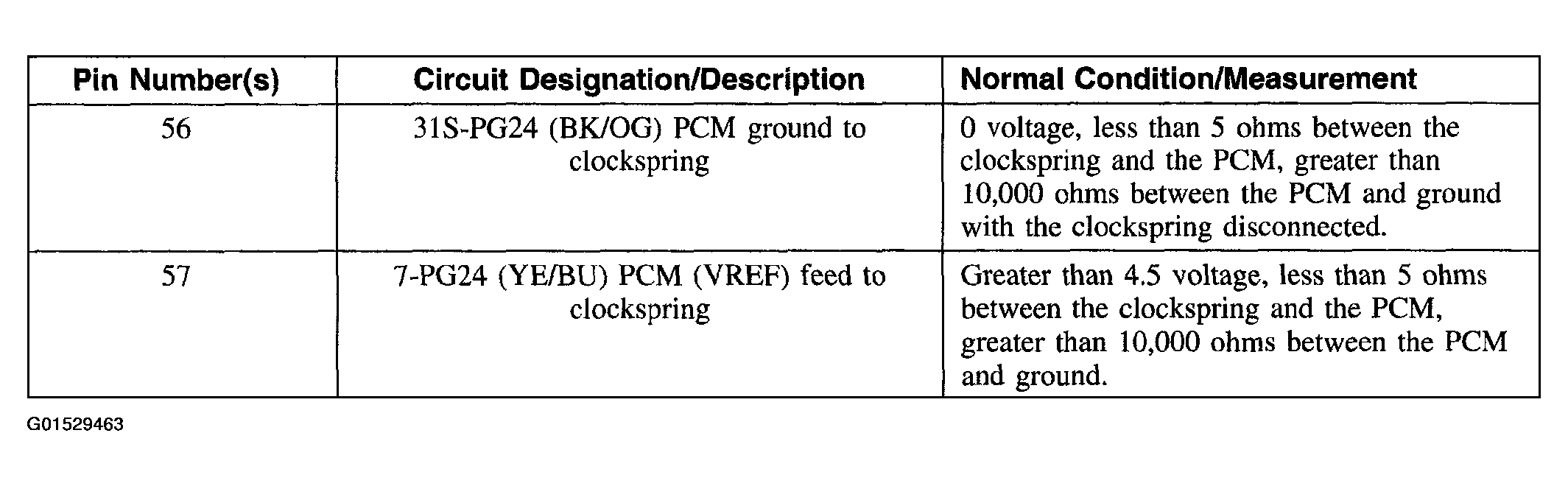

Fig 2: PCM C175b Circuit Diagnosis Table
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
