Windshield Glass: Notes

Special Tool(s)

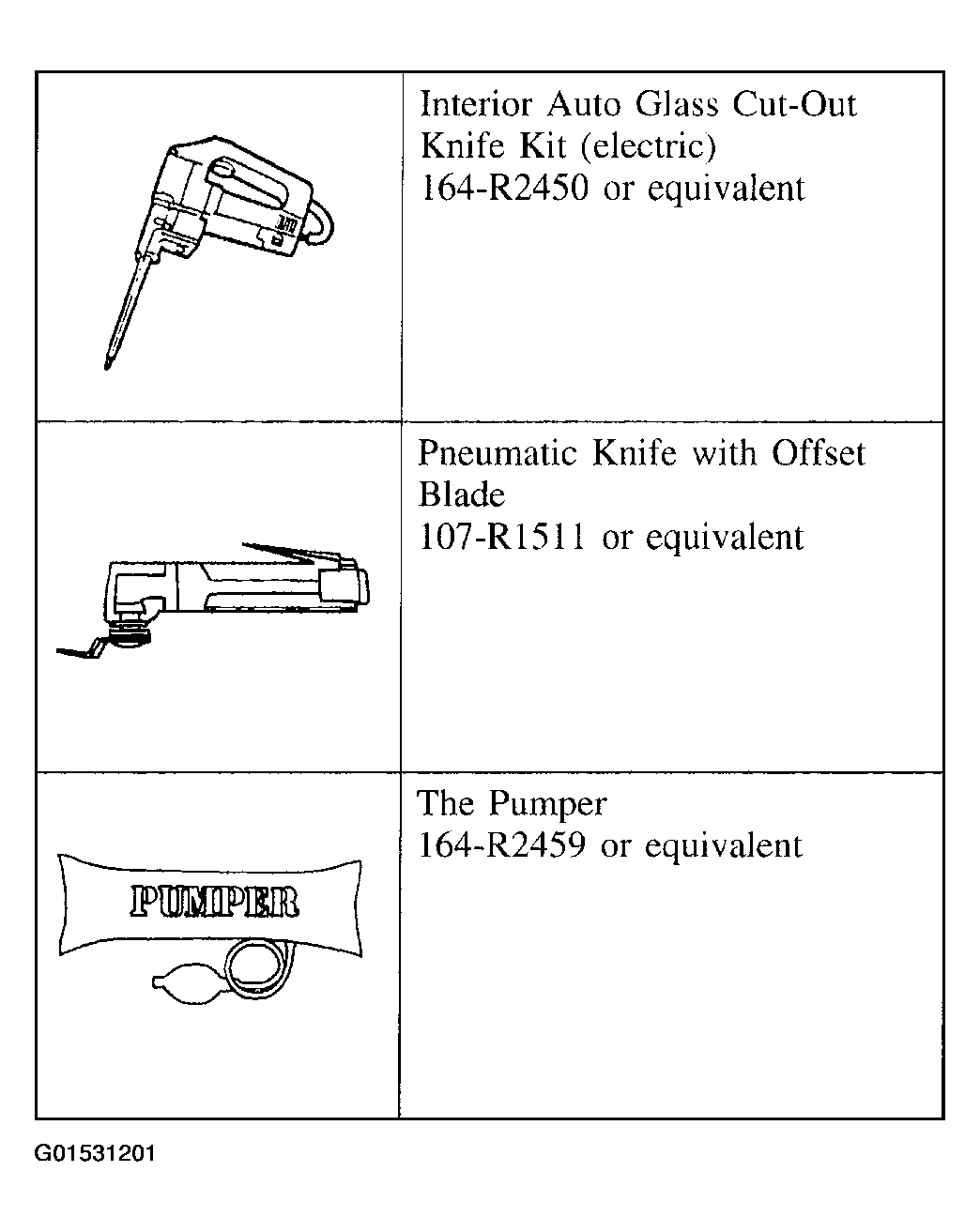

Fig 1: Identifying Special Tools

Courtesy of FORD MOTOR CO.

Material

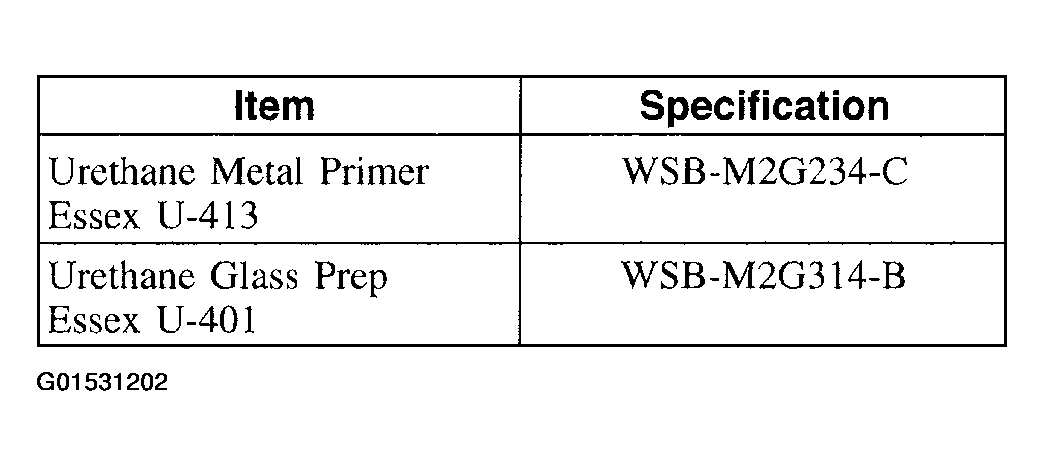

Fig 2: Windshield Glass Material Specifications (1 Of 2)

Courtesy of FORD MOTOR CO.

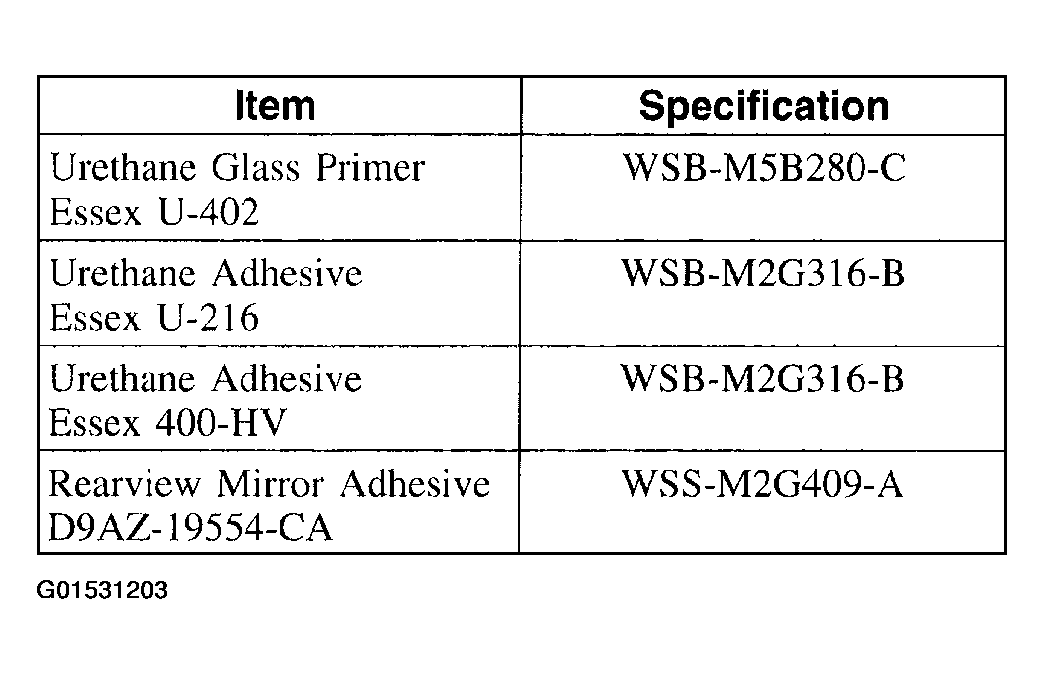

Fig 3: Windshield Glass Material Specifications (2 Of 2)

Courtesy of FORD MOTOR CO.

Remove the cowl vent screen. For additional information, refer to COWL VENT SCREEN .
Remove the windshield side garnish moulding. For additional information, refer to BODY SYSTEM - INTERIOR .
To remove individual components only, carry out the following steps.

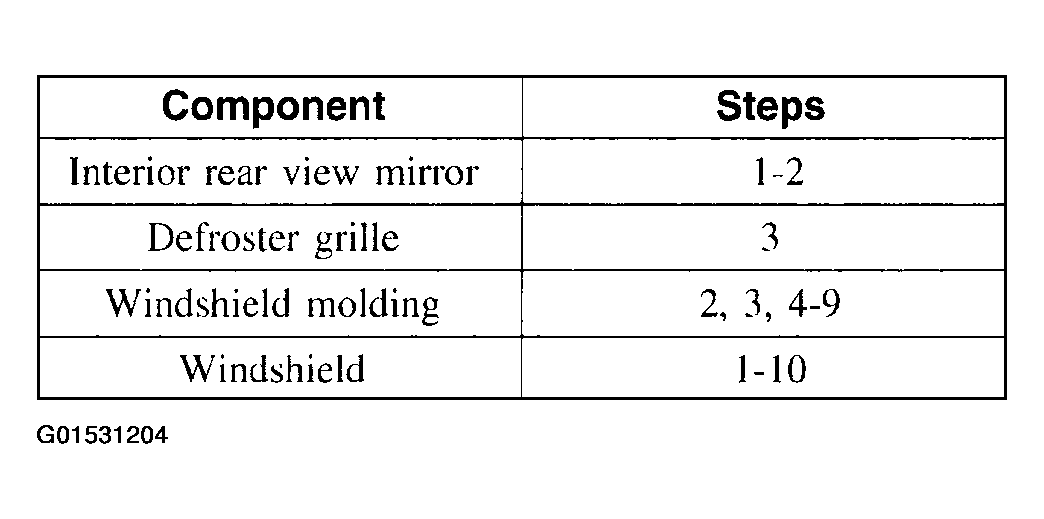

Fig 4: Windshield Glass Components Removal Chart
Courtesy of FORD MOTOR CO.
Remove the components in the order indicated in the figure.

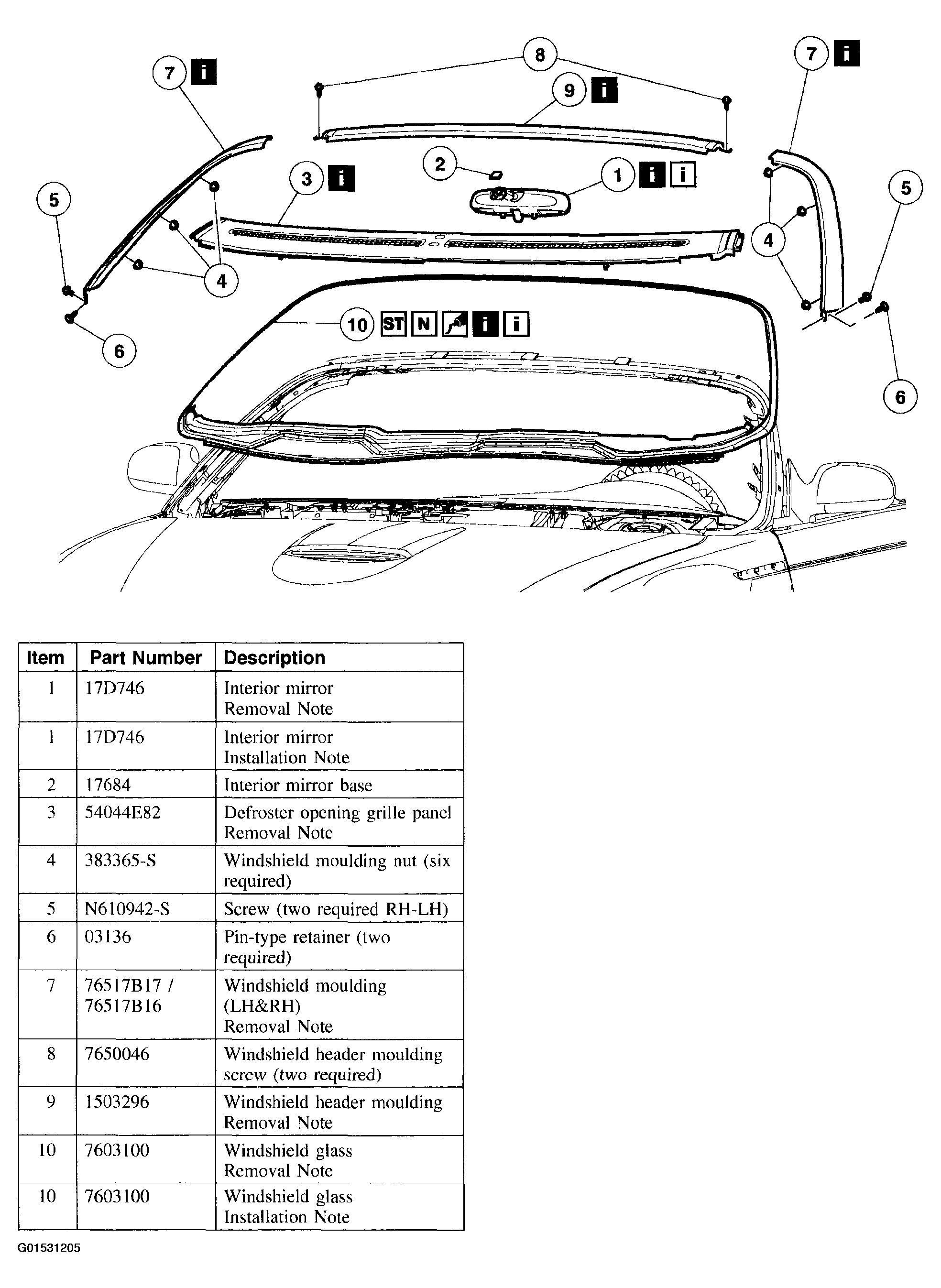

Fig 5: Windshield Glass Components Removal Sequence
Courtesy of FORD MOTOR CO.
To install reverse the removal procedure.
