Windshield Wiper: Notes

    CAUTION: The windshield wiper system has an auto park feature. It is necessary to disconnect the battery.
  1. Disconnect the battery. For additional information, refer to BATTERY & CHARGING SYSTEM .
  2. To remove individual components only, carry out the listed steps.

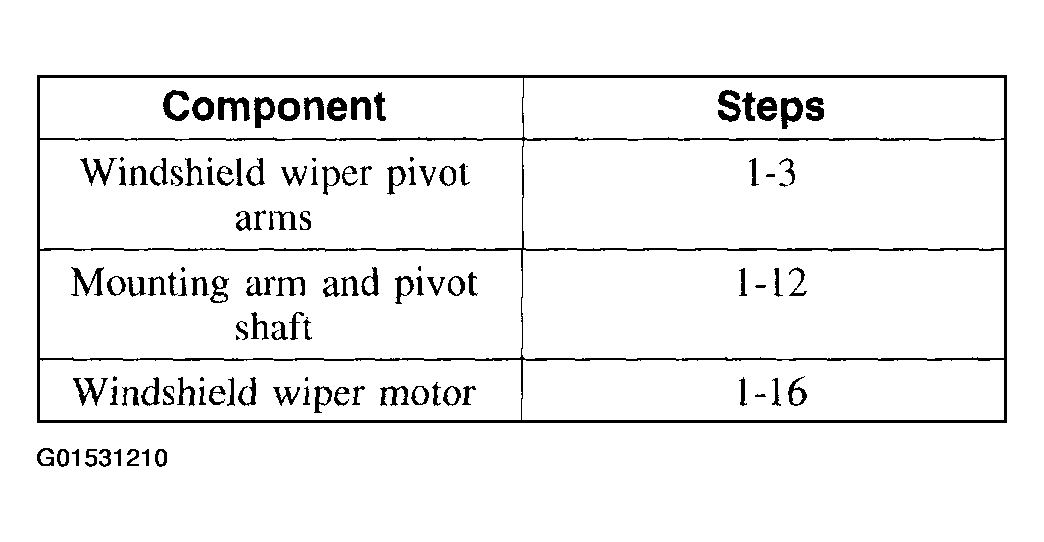

    Fig 1: Windshield Wiper Components Removal Chart
    G01531210Courtesy of FORD MOTOR CO.
  3. Remove the components in the order indicated in the figure.

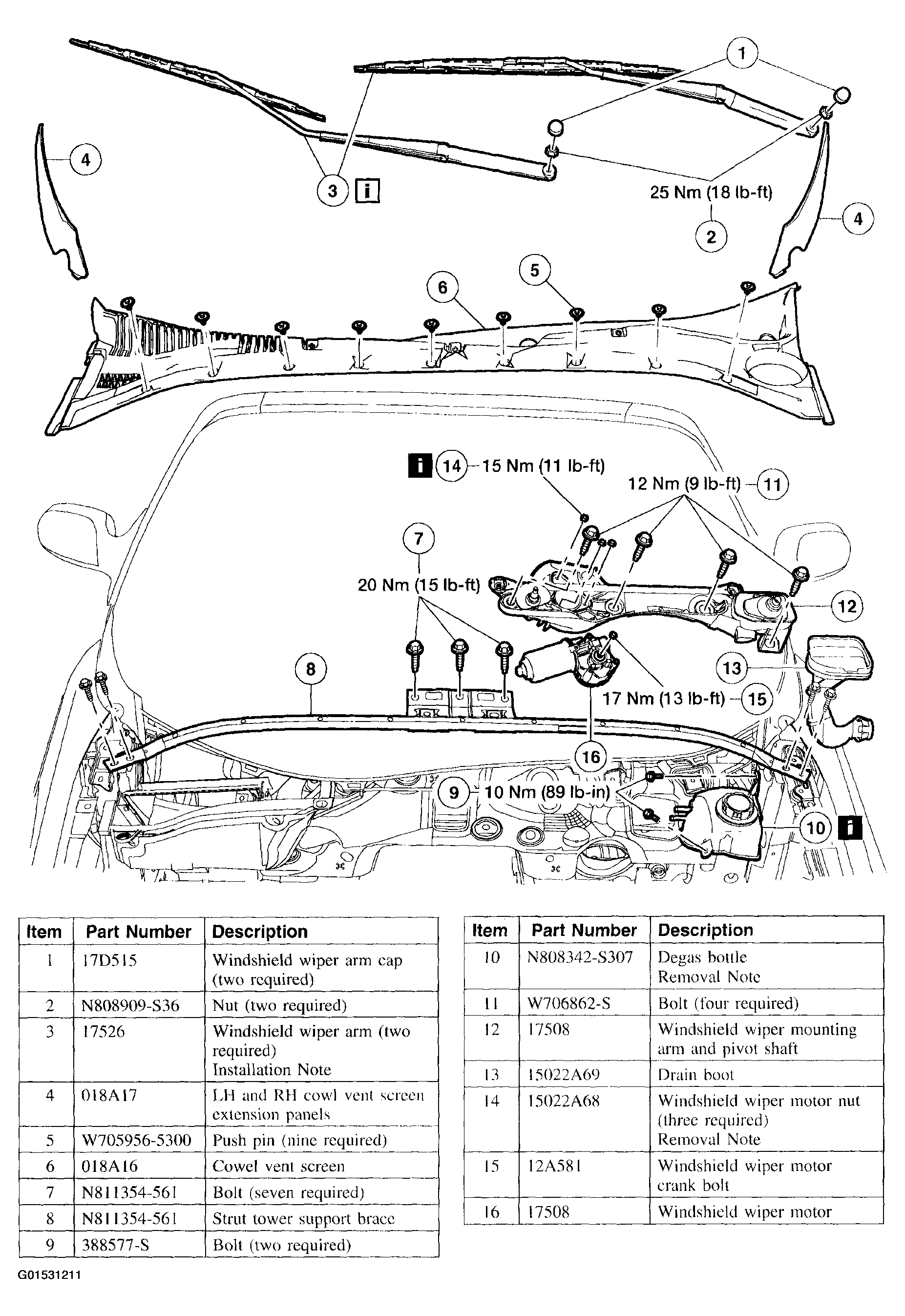

    Fig 2: Windshield Wiper Components Removal Sequence
    G01531211Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
