Powertrain Control Module C175c

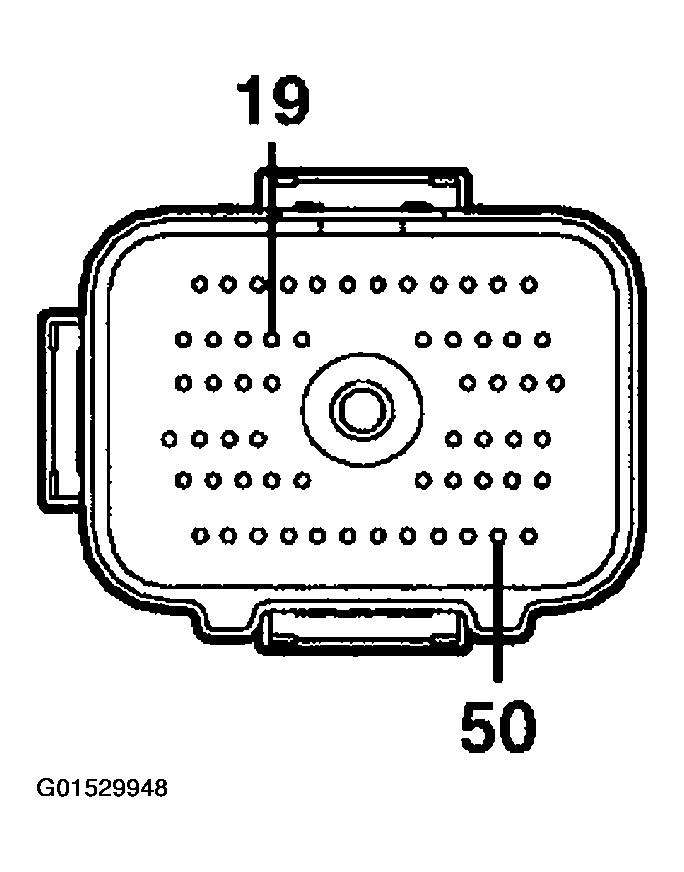

Fig 1: Powertrain Control Module C175c Connector Terminals
G01529948Courtesy of FORD MOTOR CO.

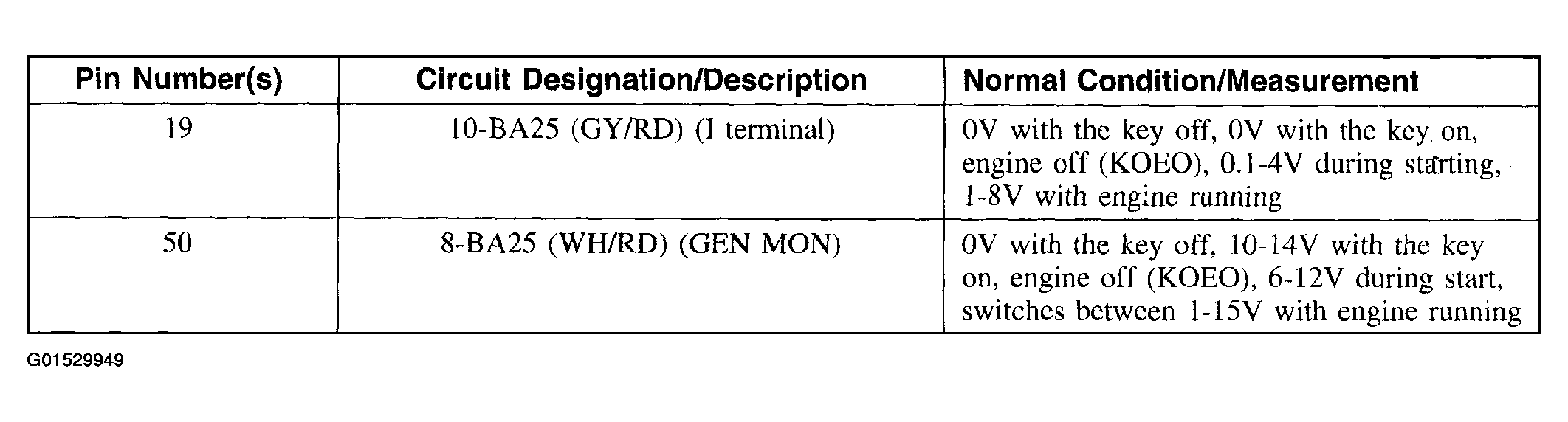

Fig 2: Powertrain Control Module C175c Connector Terminals Specification Chart
G01529949Courtesy of FORD MOTOR CO.
