Removal And Installation: Generator: Notes
CAUTION:
The generator must be supported by hand after removing the bolts prior to disconnecting the electrical connector or damage to the harness may result.
CAUTION:
Care must be taken when removing the generator to prevent damage to the air conditioning and cooling lines.
NOTE:
The A/C suction line may need to be positioned rearward to ease removal of the generator.
- Disconnect the battery. For additional information, refer to BATTERY DISCONNECT .
- Position the accessory drive belt off the generator pulley.
- Remove the front valance panel and air deflector.

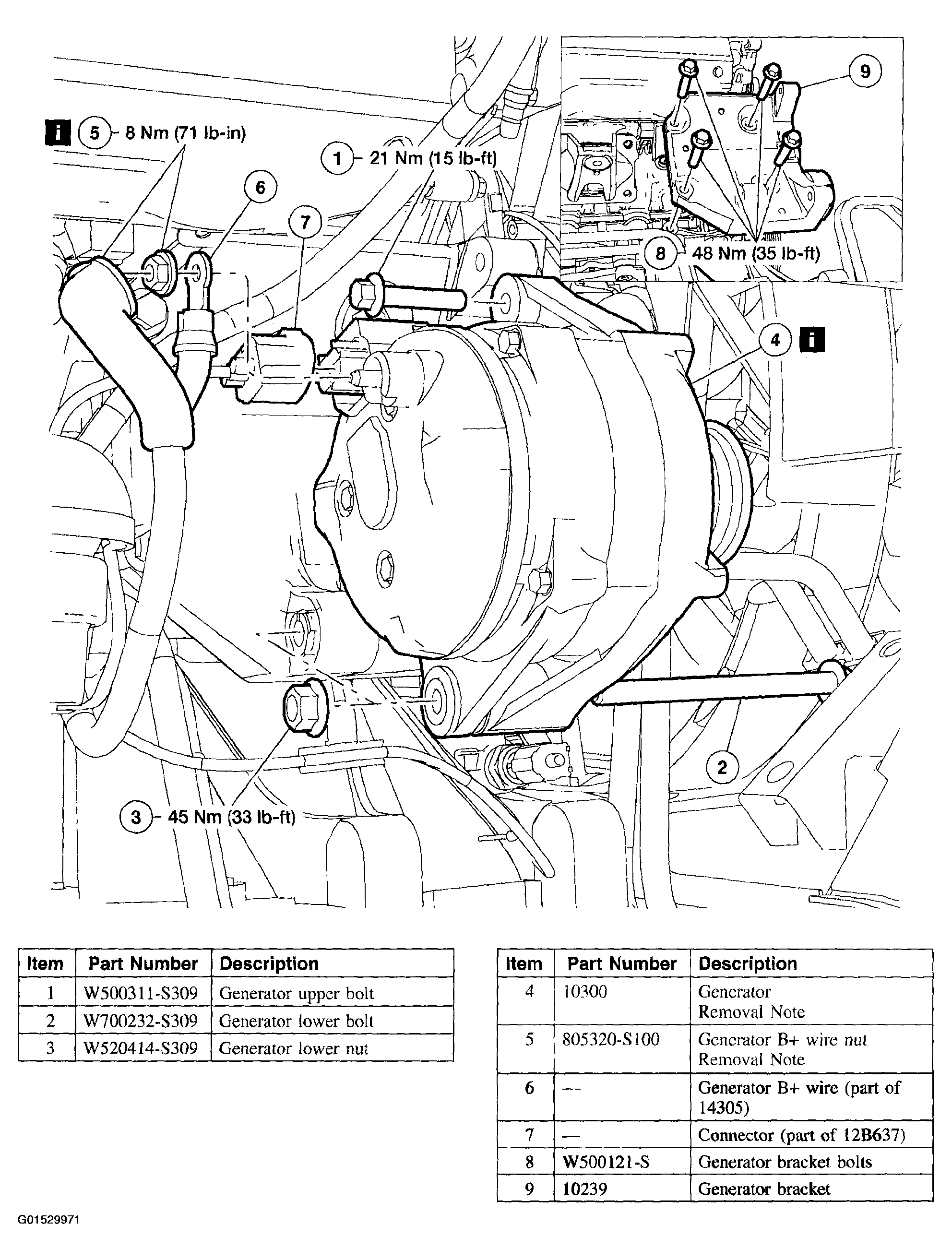

- Remove the components in the order indicated in the figure below.
- To install, reverse the removal procedure.
