Engine - 3.9L: Installation: Engine: Notes

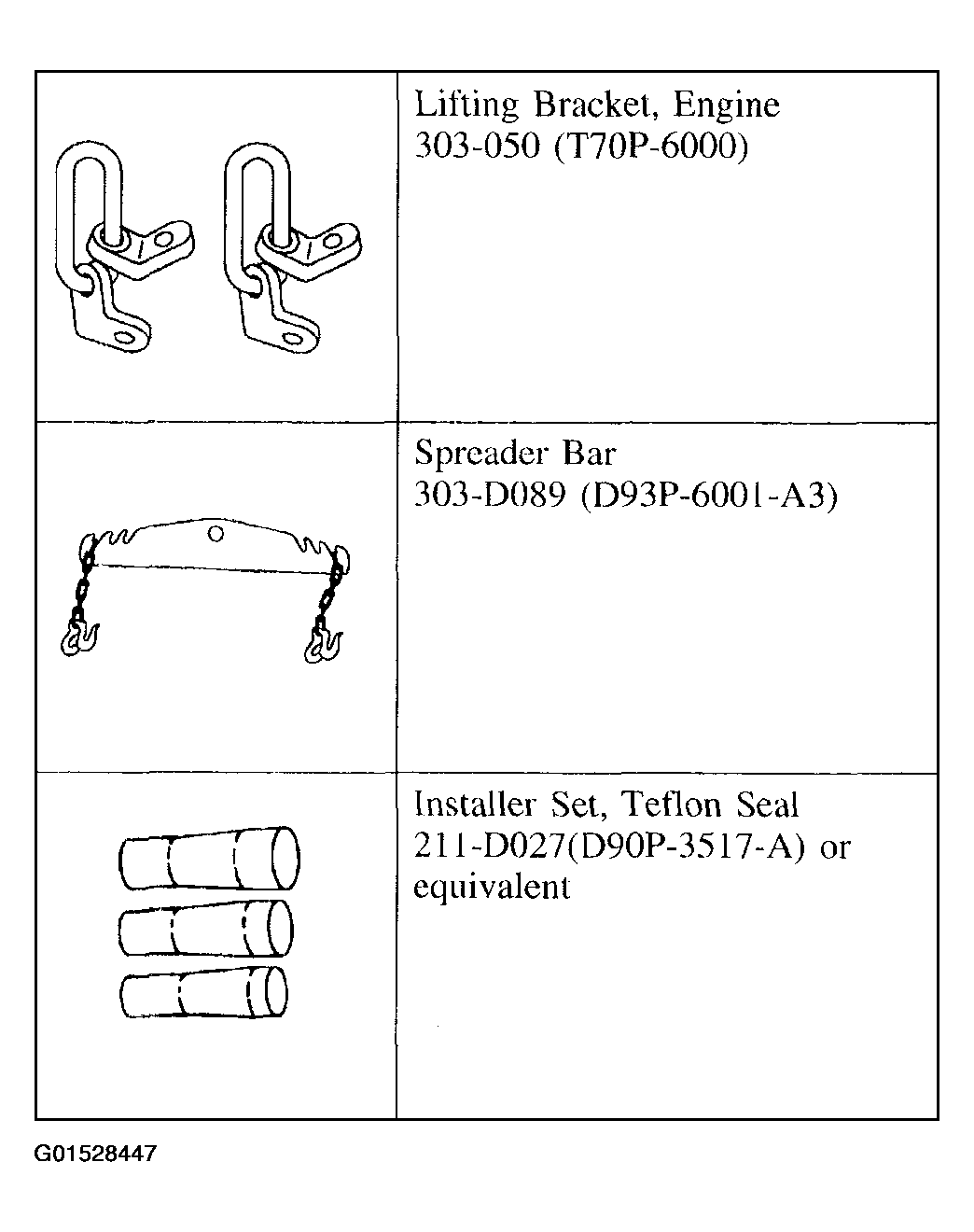

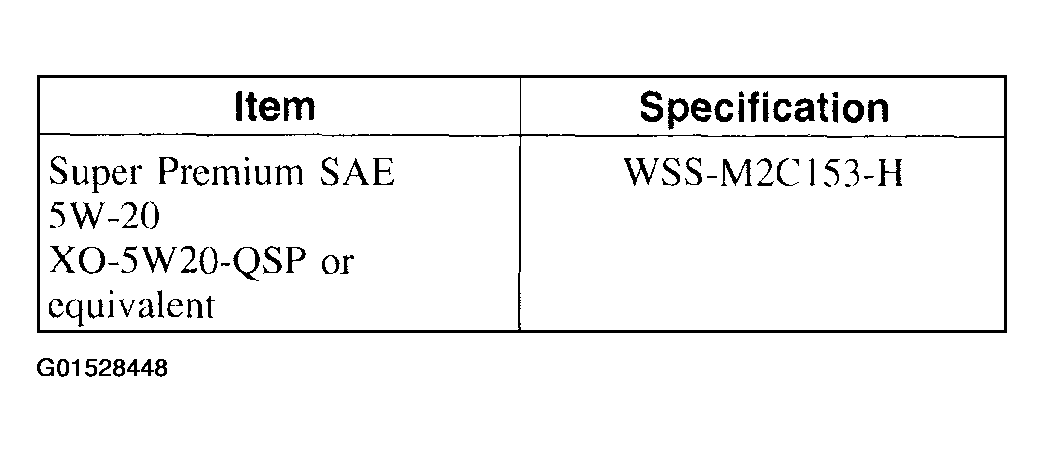

Special Tool(s)

1. Install the components in the order indicated in the following illustration and table.

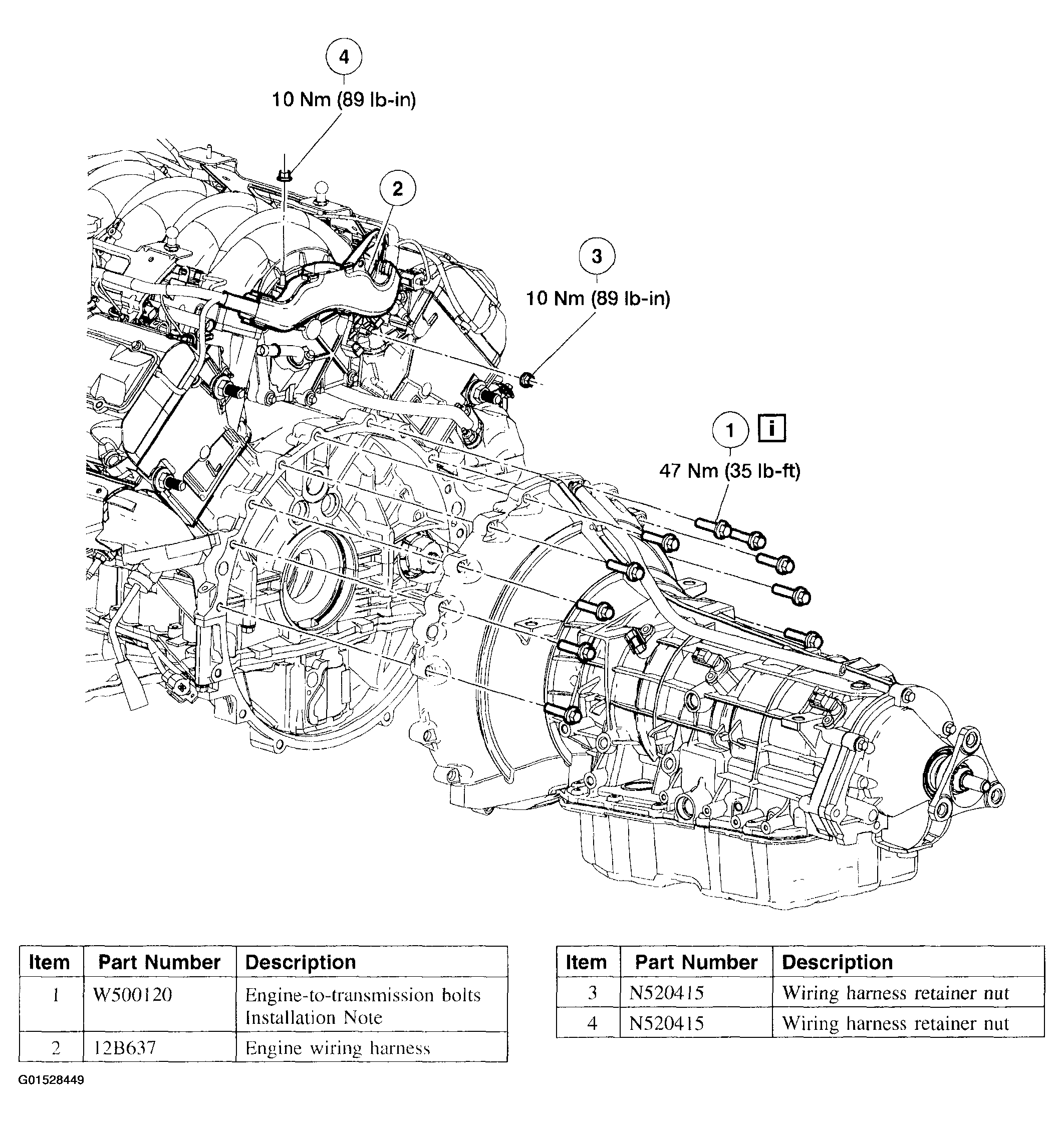

   Fig 3: Engine Components Locator (Items 1-4)

   Courtesy of FORD MOTOR CO.
2. Install the components in the order indicated in the following illustration and table.

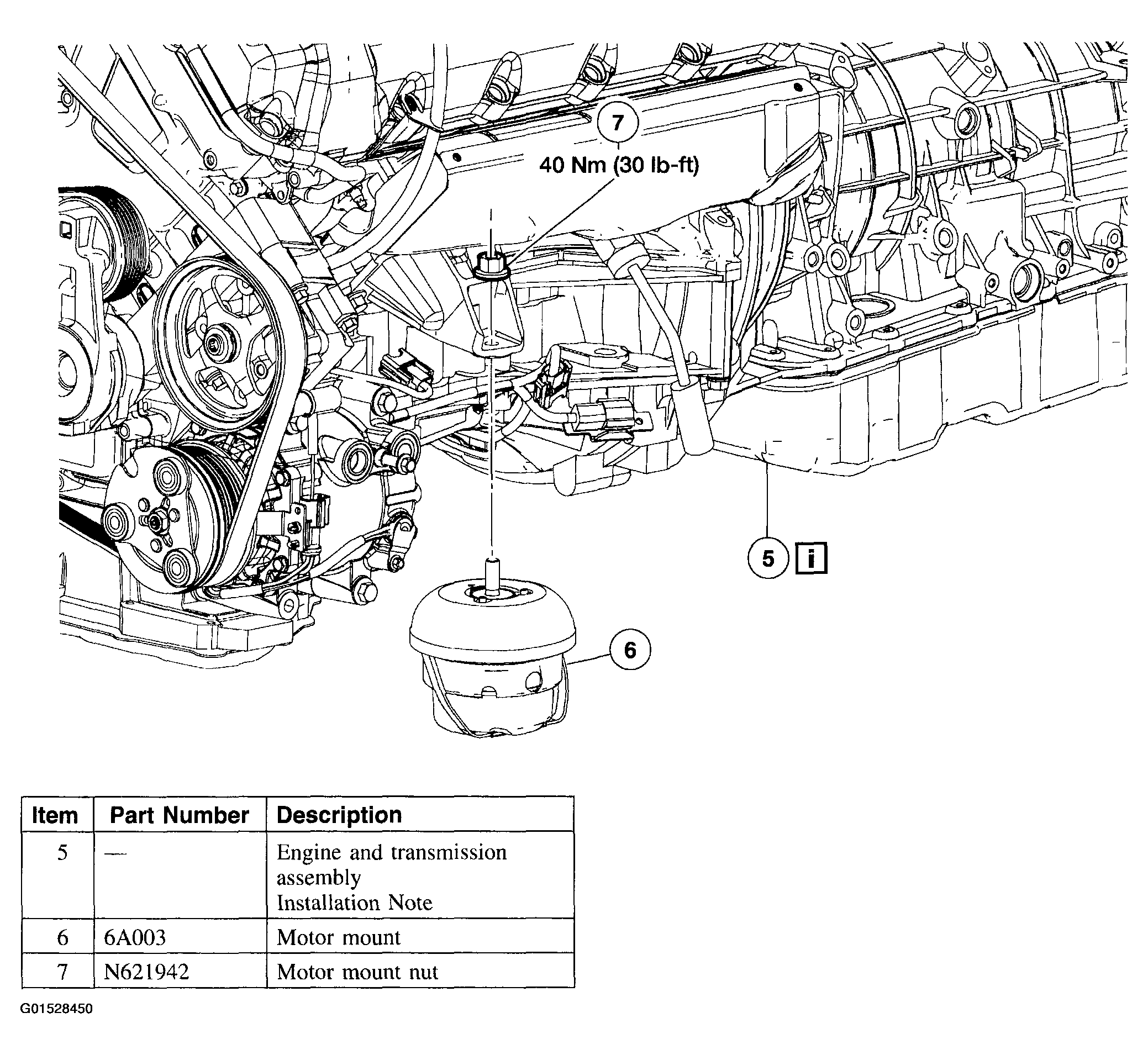

   Fig 4: Engine Components Locator (Items 5-7)

   Courtesy of FORD MOTOR CO.
3. Install the components in the order indicated in the following illustration and table.

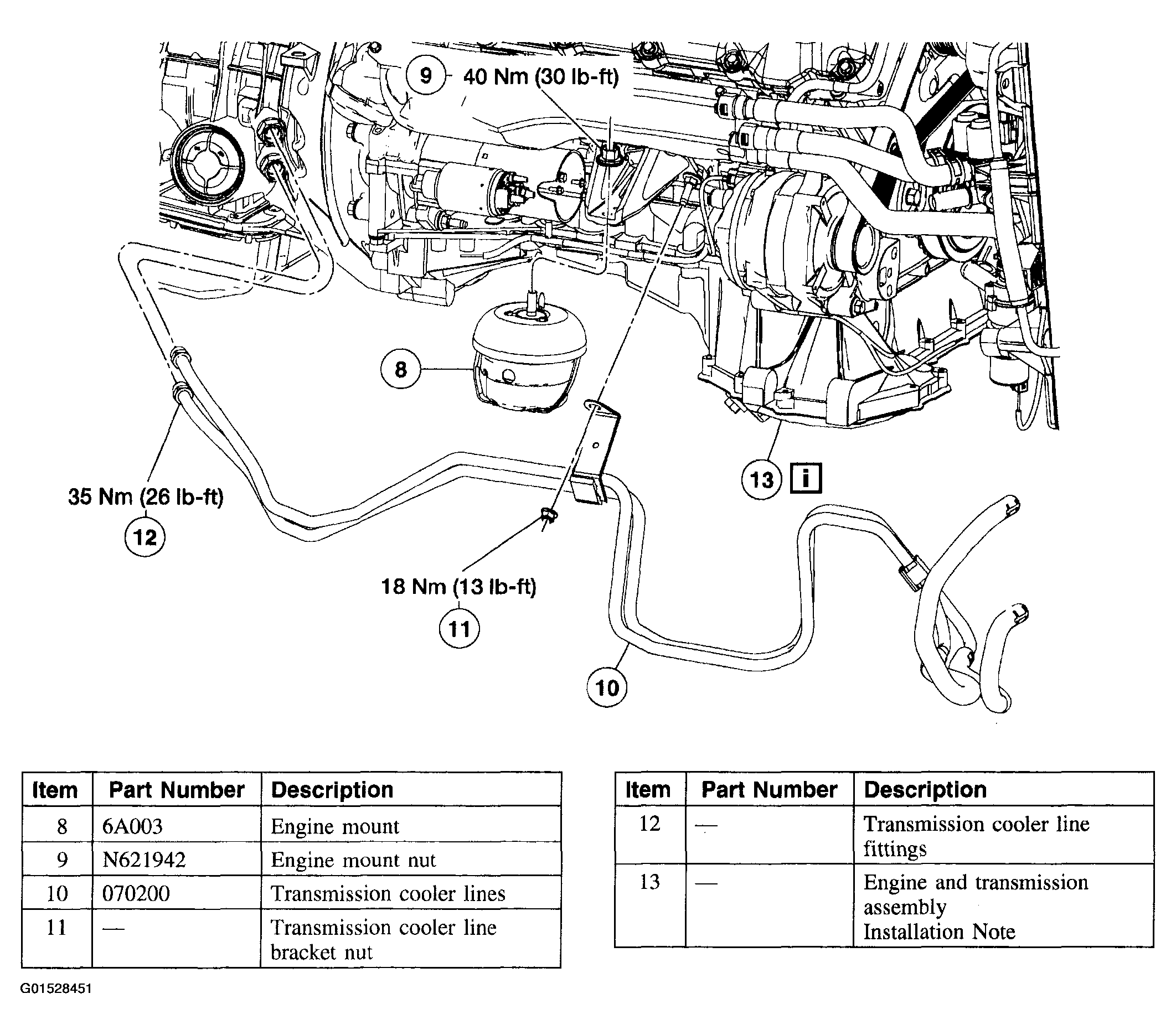

   Fig 5: Engine Components Locator (Items 8-13)

   Courtesy of FORD MOTOR CO.
4. Install the components in the order indicated in the following illustration and table.

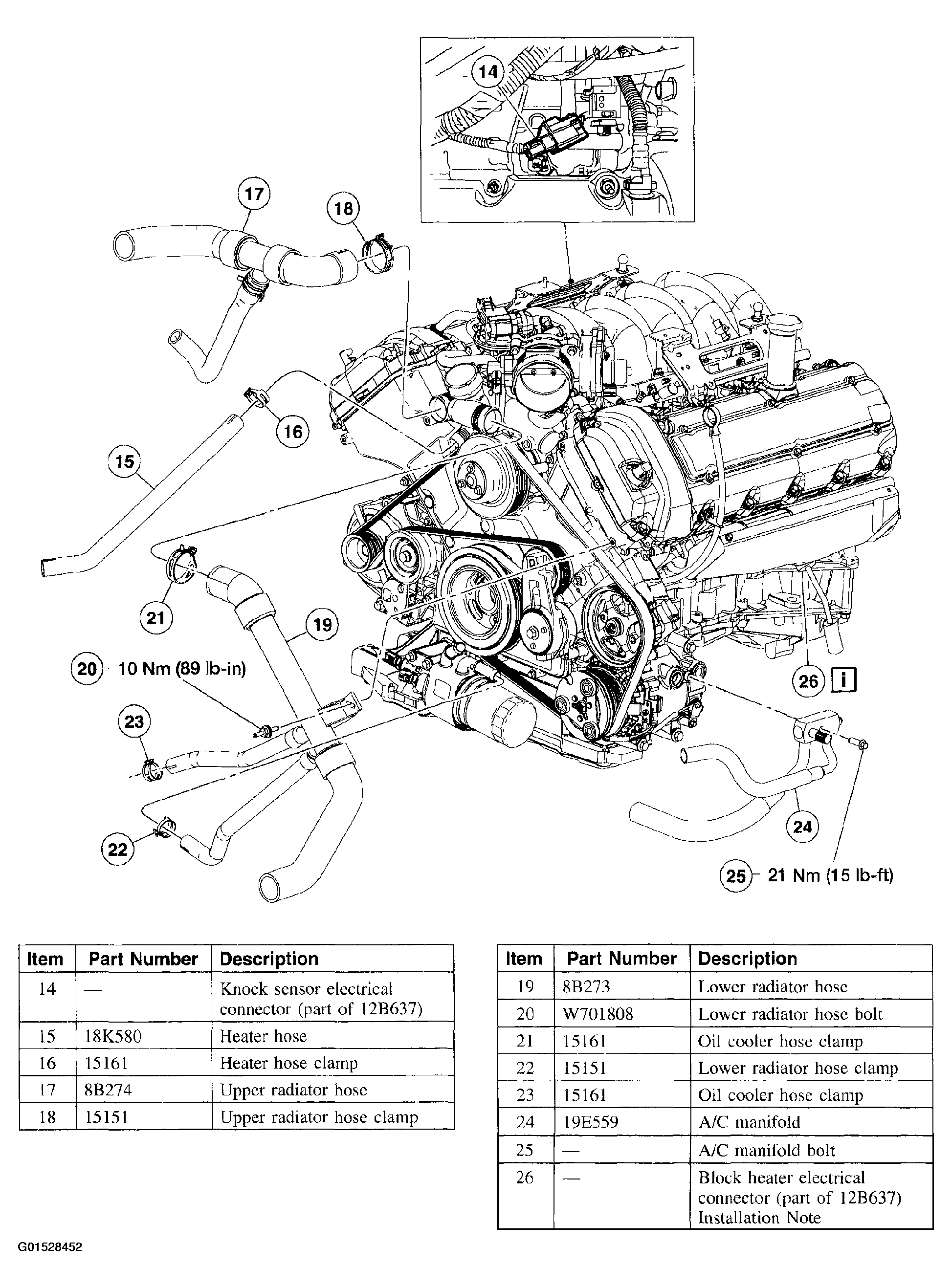

   Fig 6: Engine Components Locator (Items 14-26)

   Courtesy of FORD MOTOR CO.
5. Install the components in the order indicated in the following illustration and table.

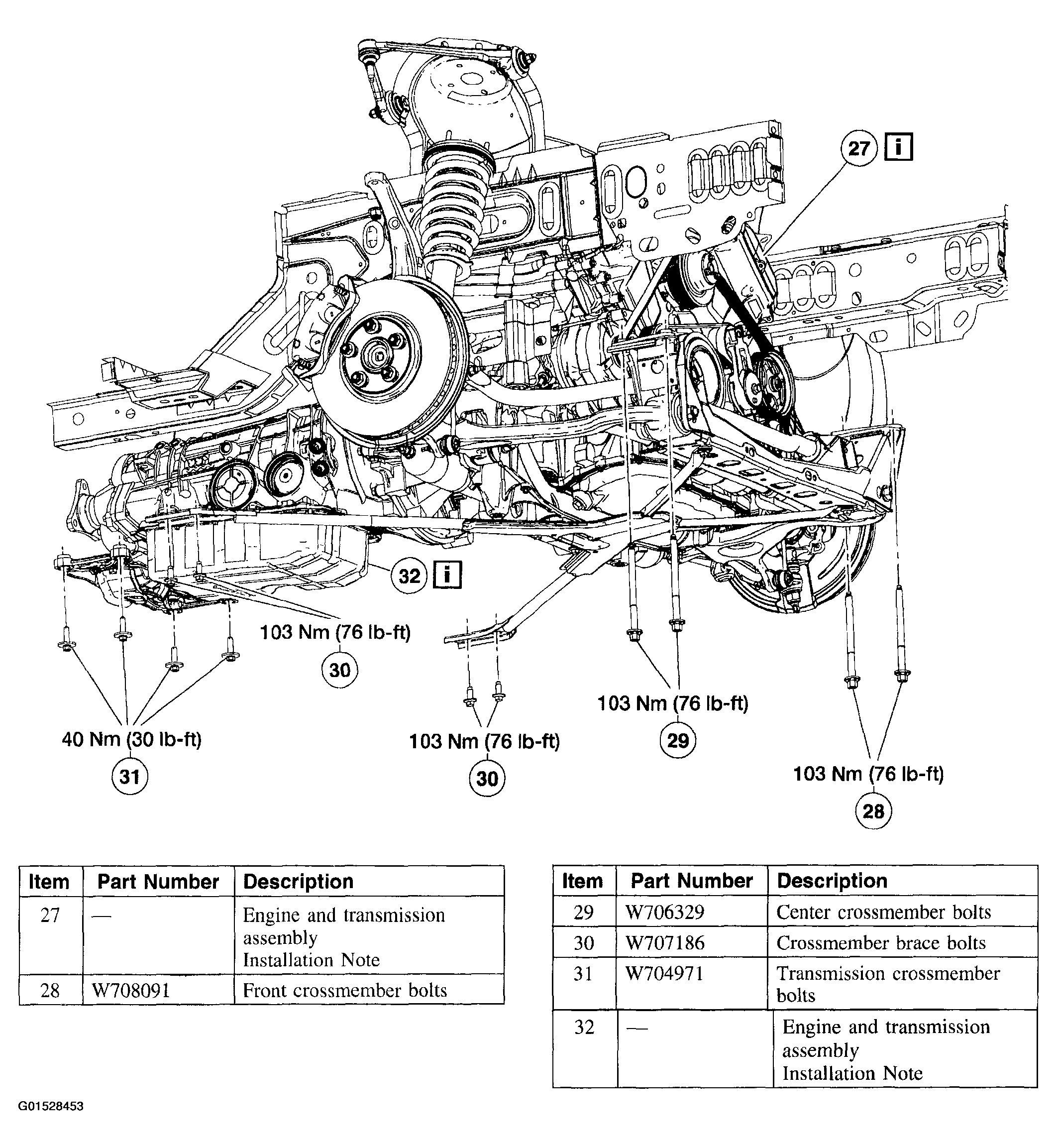

   Fig 7: Engine Components Locator (Items 27-32)

   Courtesy of FORD MOTOR CO.
6. Install the components in the order indicated in the following illustration and table.

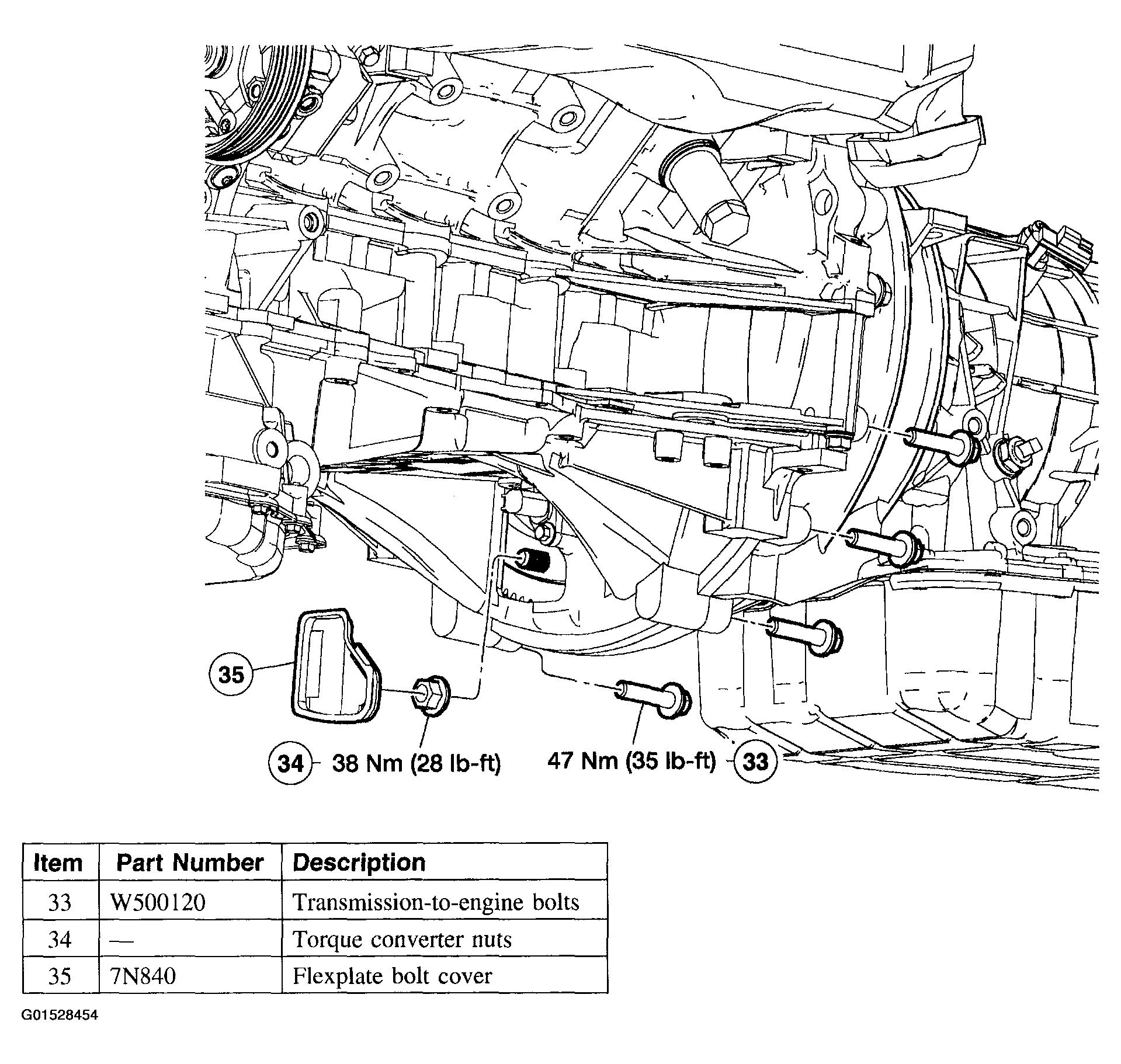

   Fig 8: Engine Components Locator (Items 33-35)

   Courtesy of FORD MOTOR CO.
7. Install the components in the order indicated in the following illustration and table.

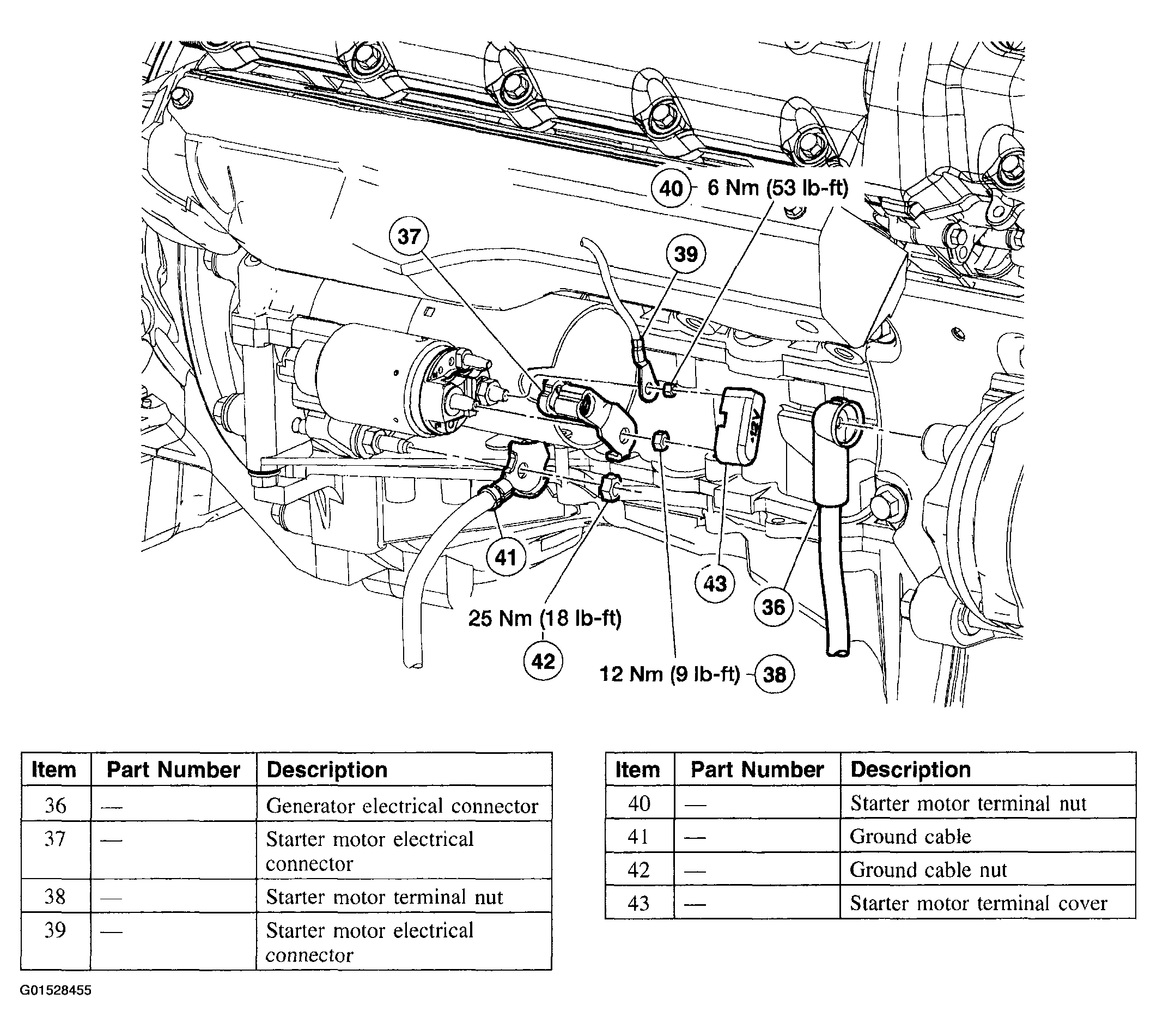

   Fig 9: Engine Components Locator (Items 36-43)

   Courtesy of FORD MOTOR CO.
8. Install the components in the order indicated in the following illustration and table.

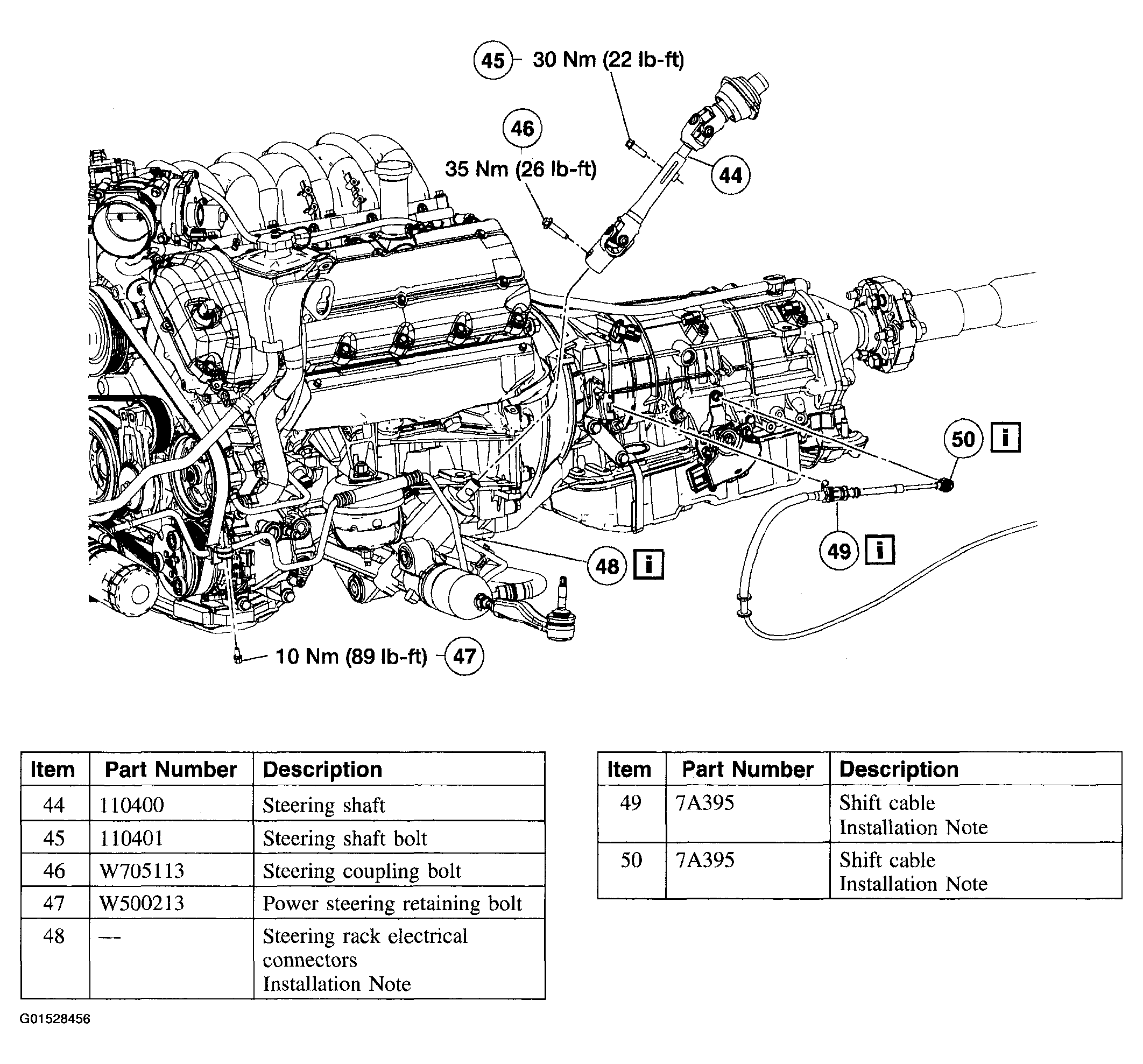

   Fig 10: Engine Components Locator (Items 44-50)

   Courtesy of FORD MOTOR CO.
9. Install the components in the order indicated in the following illustration and table.

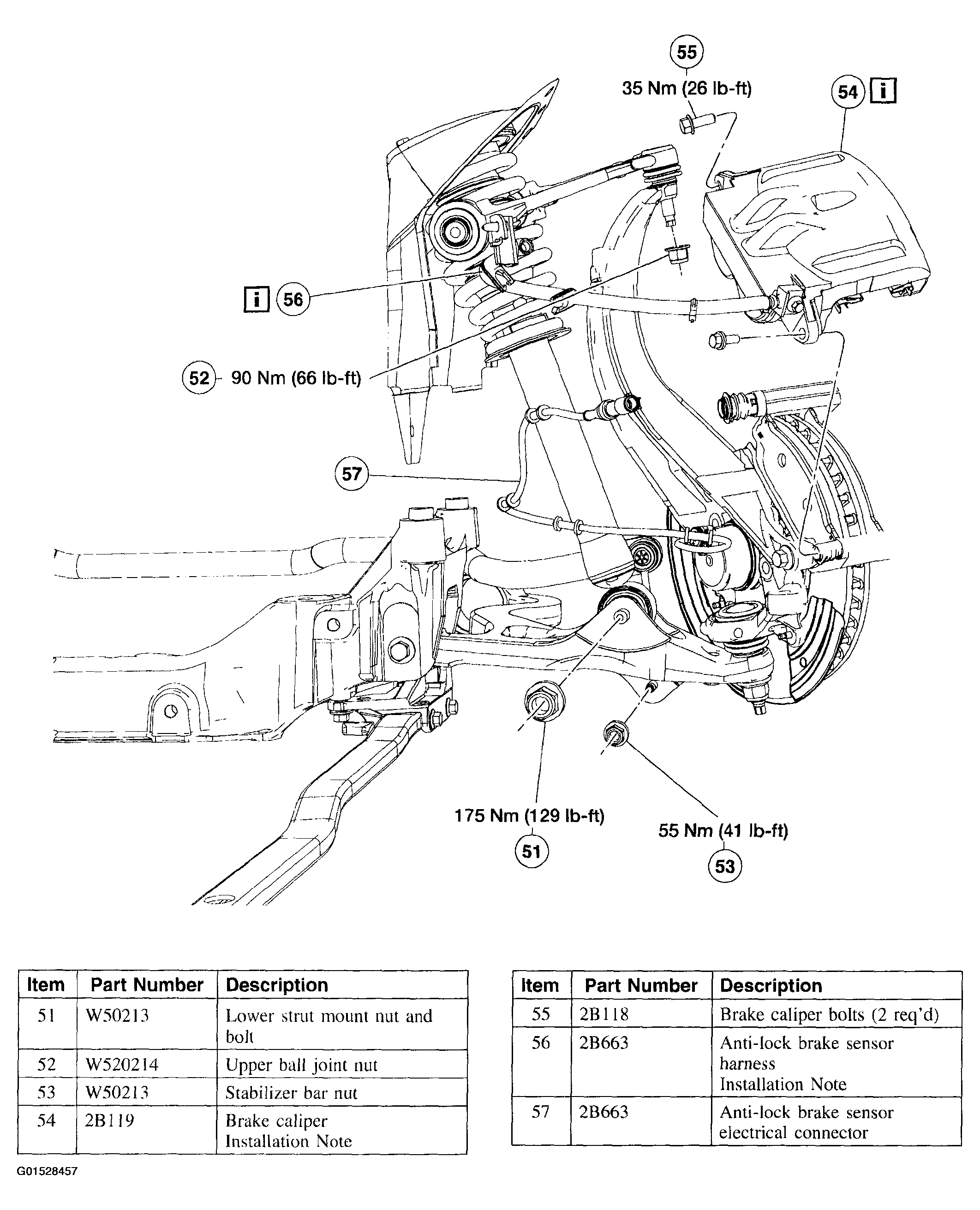

   Fig 11: Engine Components Locator (Items 51-57)

   Courtesy of FORD MOTOR CO.
10. Install the components in the order indicated in the following illustration and table.

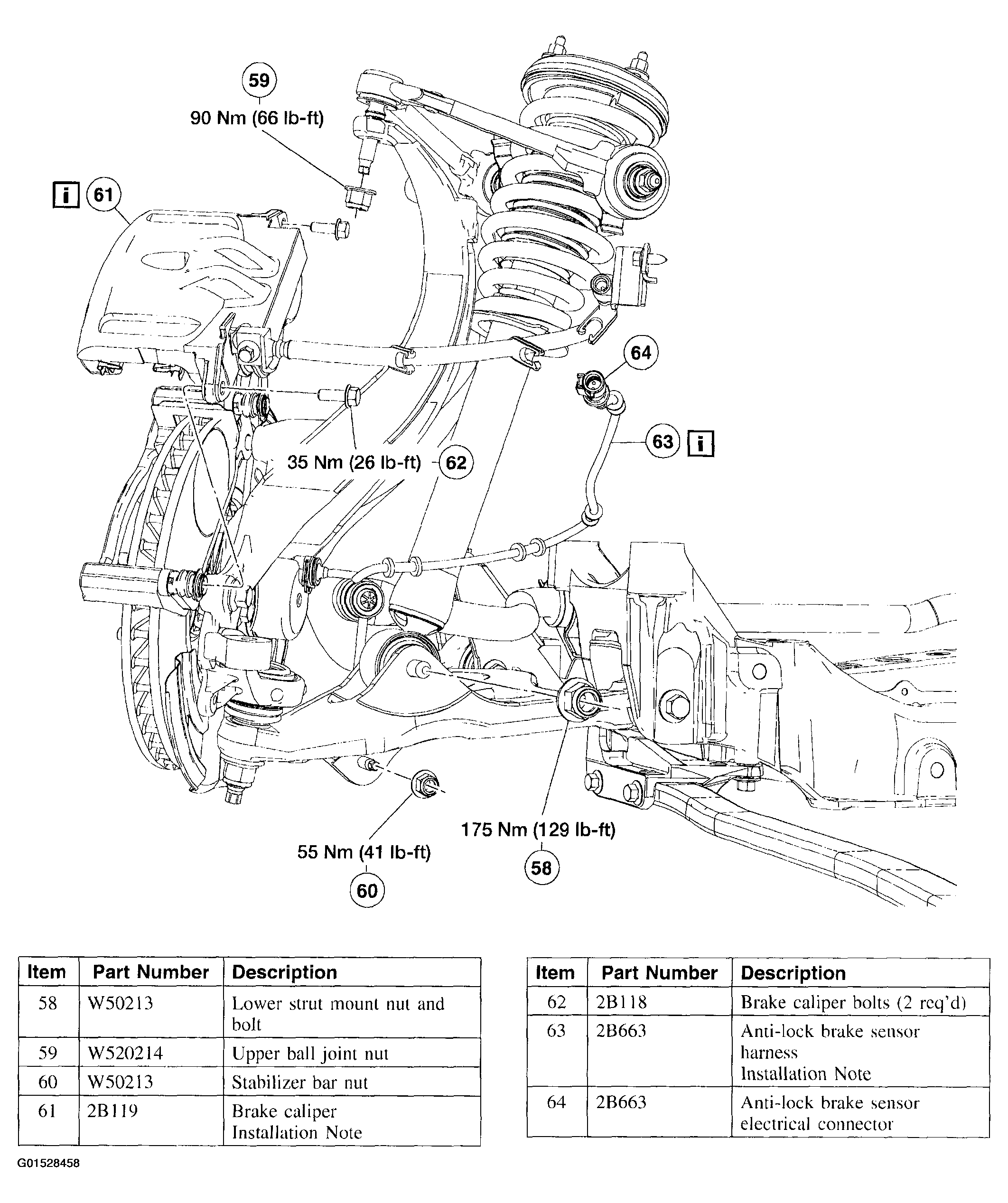

    Fig 12: Engine Components Locator (Items 58-64)

    Courtesy of FORD MOTOR CO.
11. Install the components in the order indicated in the illustration and table.

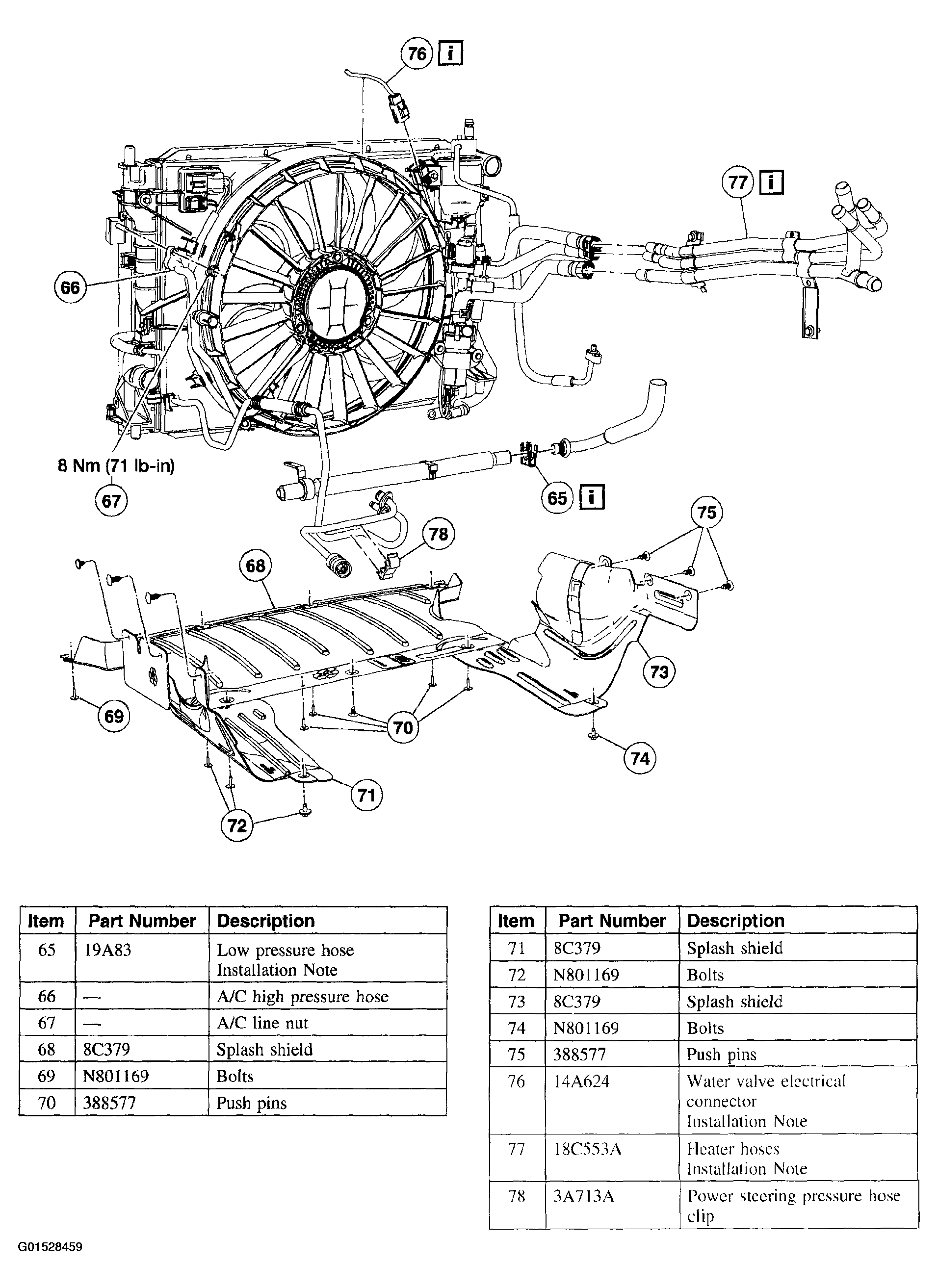

    Fig 13: Engine Components Locator (Items 65-78)

    Courtesy of FORD MOTOR CO.
12. Install the components in the order indicated in the following illustration and table.

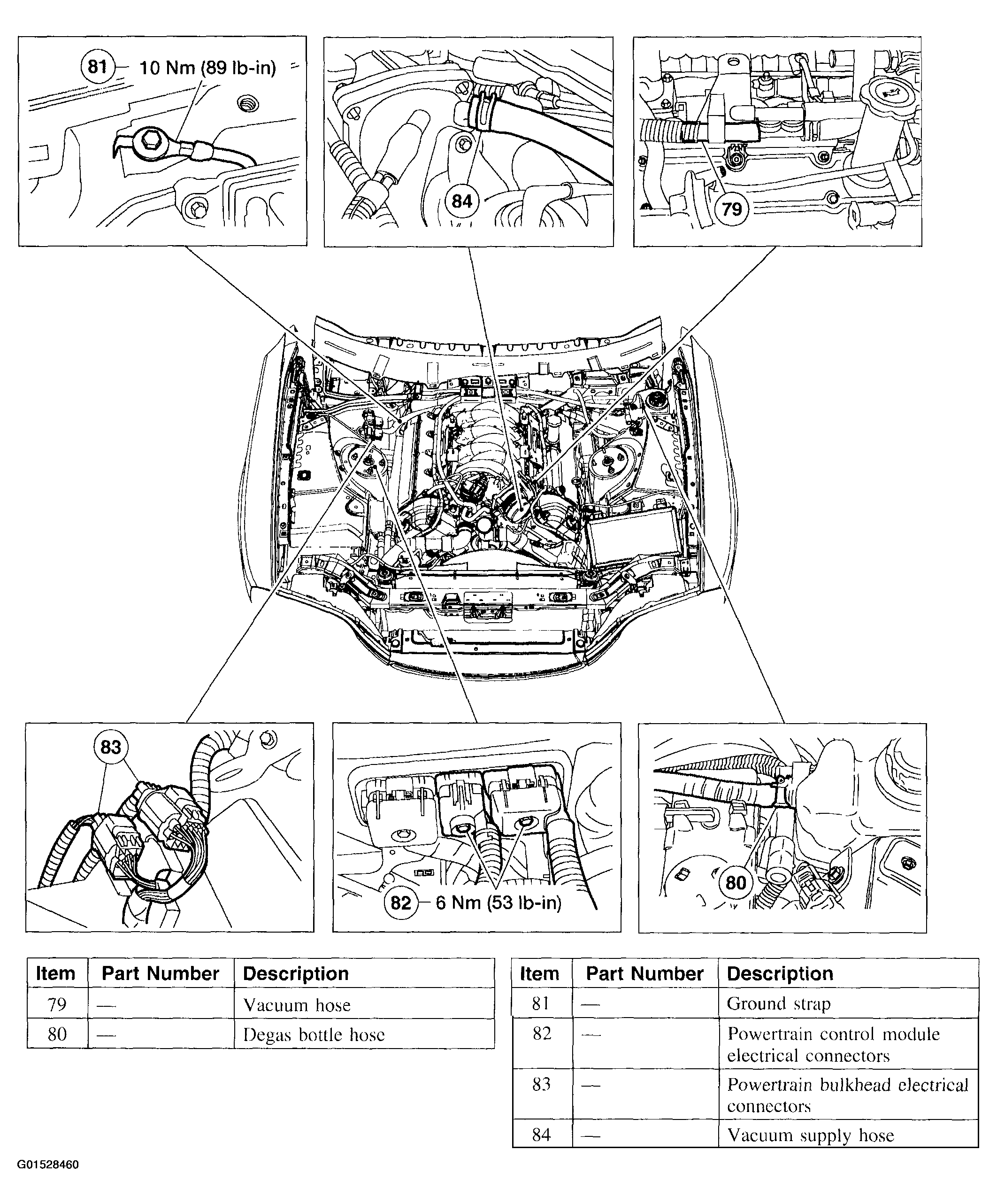

    Fig 14: Engine Components Locator (Items 79-84)

    Courtesy of FORD MOTOR CO.
13. Install the components in the order indicated in the following illustration and table.

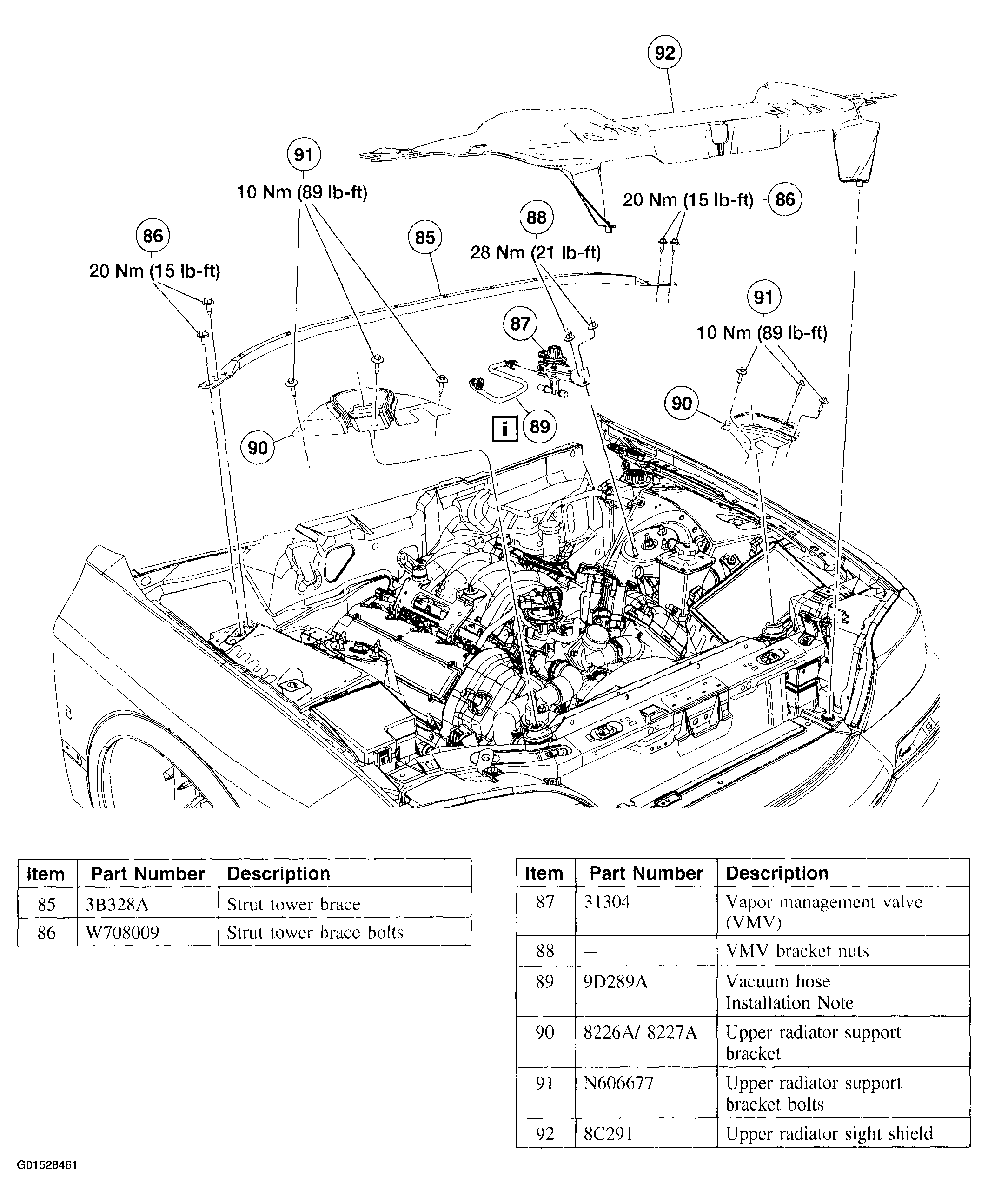

    Fig 15: Engine Components Locator (Items 85-92)

    Courtesy of FORD MOTOR CO.
14. Install the air cleaner inlet. .
CAUTION: The coolant fill procedure must be followed exactly or damage to the engine can occur.
15. Fill the engine coolant. For additional information, refer to ENGINE COOLING .
16. Charge the A/C system. For additional information, refer to CLIMATE CONTROL SYSTEM .
17. Install the power steering pump reservoir bolts. For additional information, refer to DRIVELINE SYSTEM .
18. Install the cowl vent screens. For additional information, refer to BODY SYSTEM - EXTERIOR .
19. Connect the fuel hose. For additional information, refer to FUEL SYSTEM .
20. Install the fresh air filter panel. For additional information, refer to CLIMATE CONTROL SYSTEM .
21. Install the front wheels and tires. For additional information, refer to SUSPENSION SYSTEM .
22. Install the LH and the RH inner splash shields.
23. Install the driveshaft. For additional information, refer to DRIVELINE SYSTEM .
24. Install the three-way catalytic converter (TWC). For additional information, refer to EXHAUST SYSTEM .
