Band Adjustment And Torque Chart
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Band Adjustment And Torque Chart

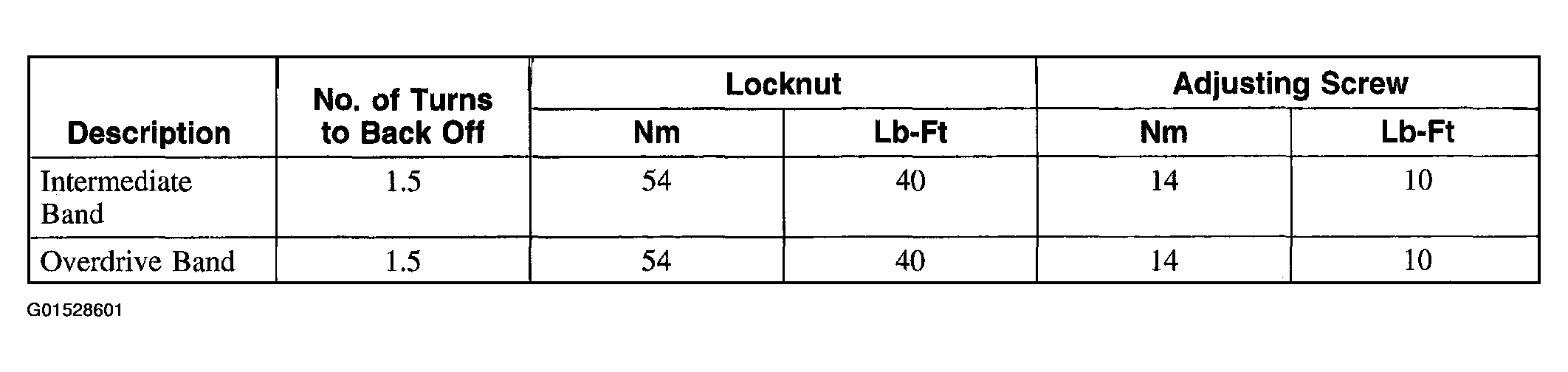

Fig 1: Band Adjustment And Torque Chart
Courtesy of FORD MOTOR CO.
