End Play Specifications

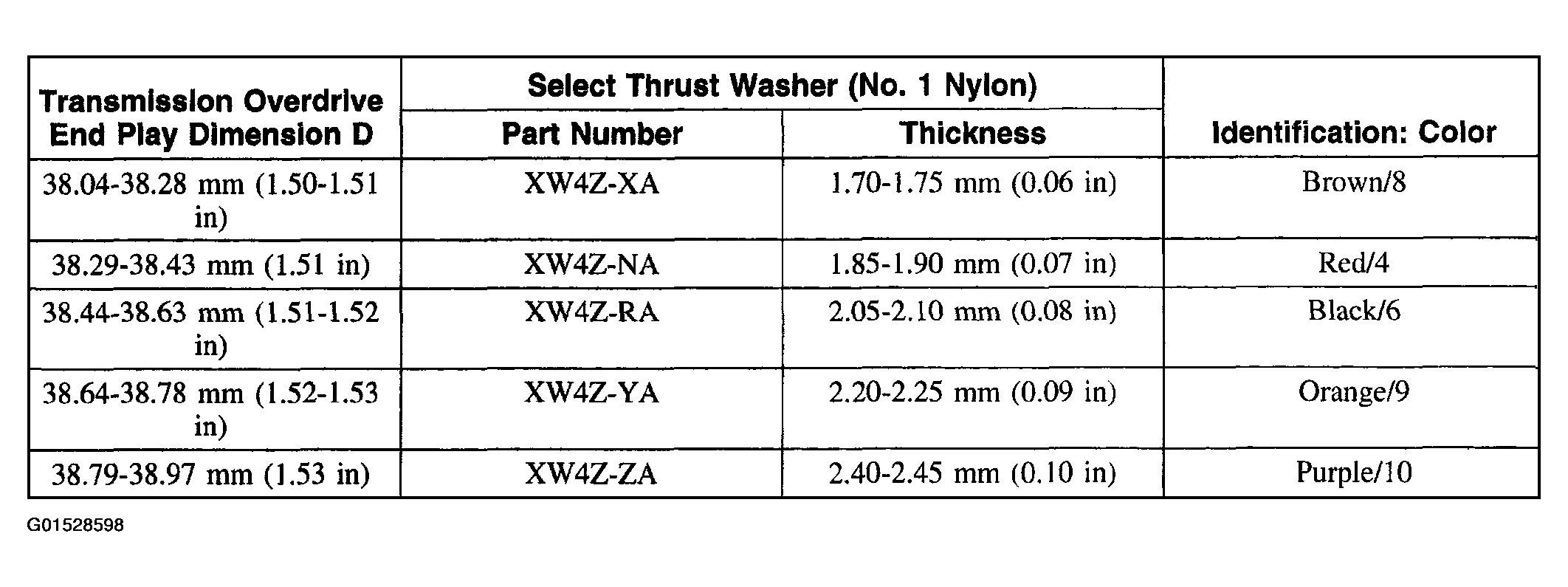

Fig 1: End Play Specifications (1 Of 2)
G01528598Courtesy of FORD MOTOR CO.

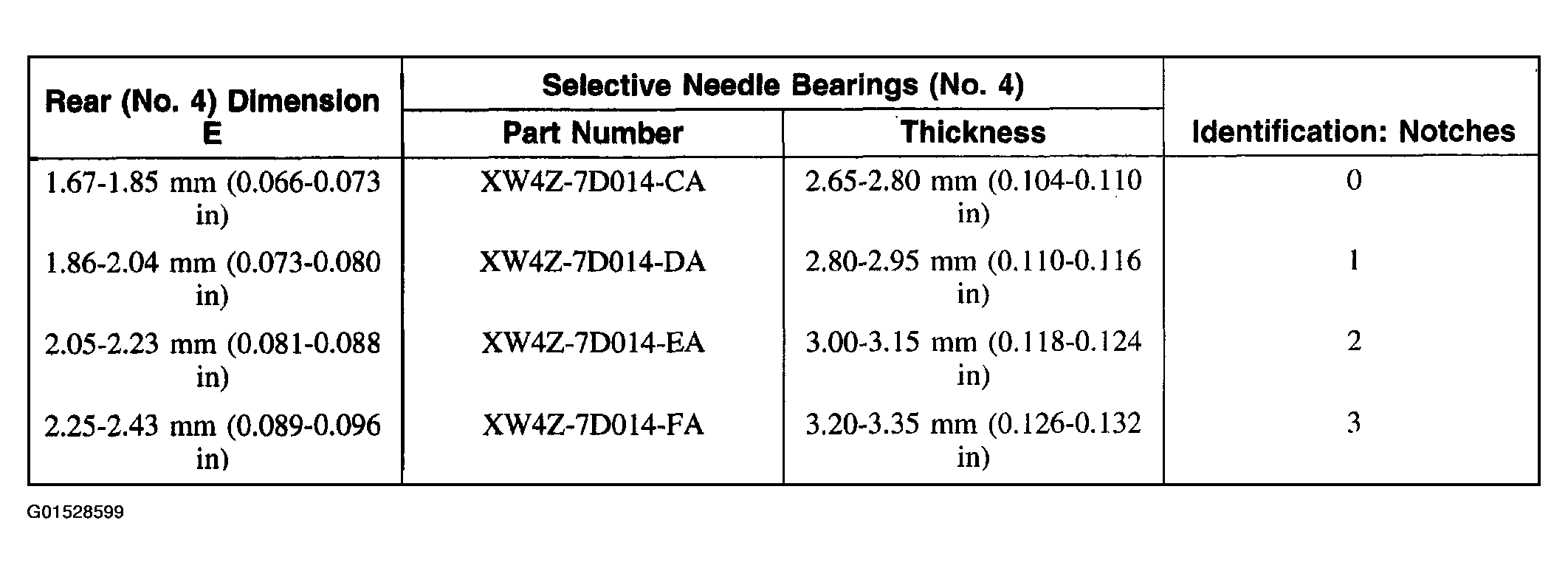

Fig 2: End Play Specifications (2 Of 2)
G01528599Courtesy of FORD MOTOR CO.
