Selective Snap Rings

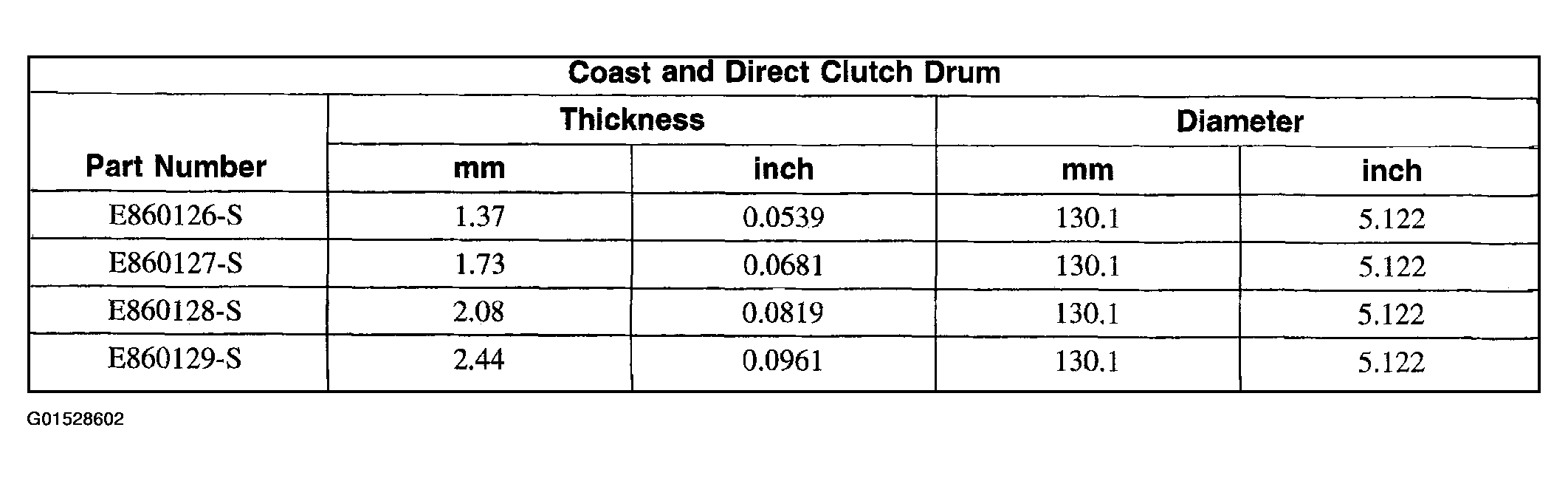

Fig 1: Selective Snap Rings (Coast and Direct Clutch Drum)
G01528602Courtesy of FORD MOTOR CO.

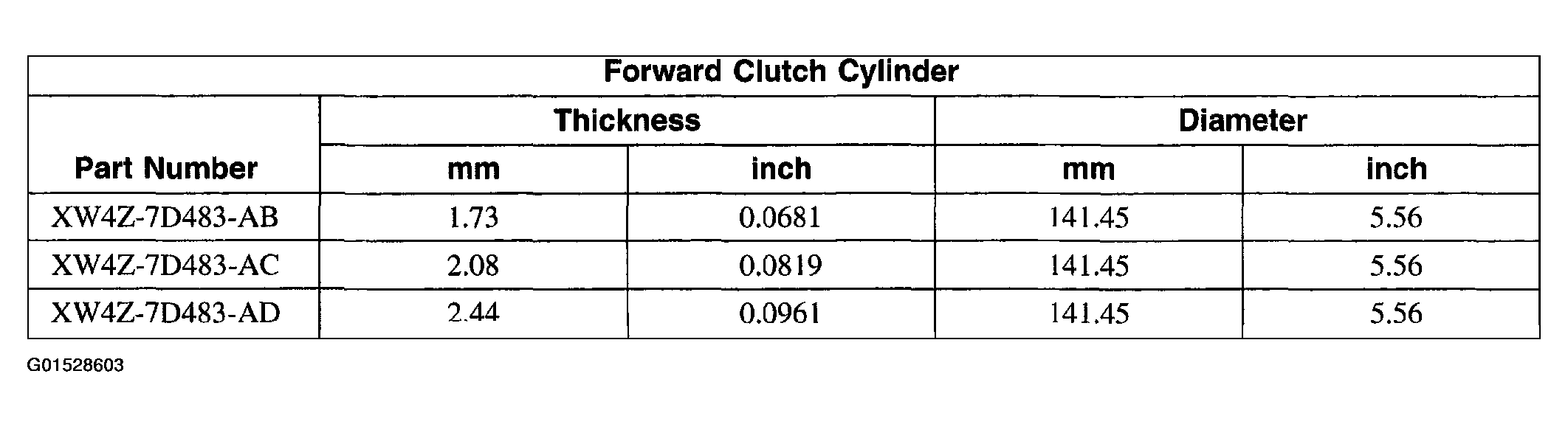

Fig 1: Selective Snap Rings (Forward Clutch Cylinder)
G01528603Courtesy of FORD MOTOR CO.
