Armrest - Bucket With Console, 2nd Row

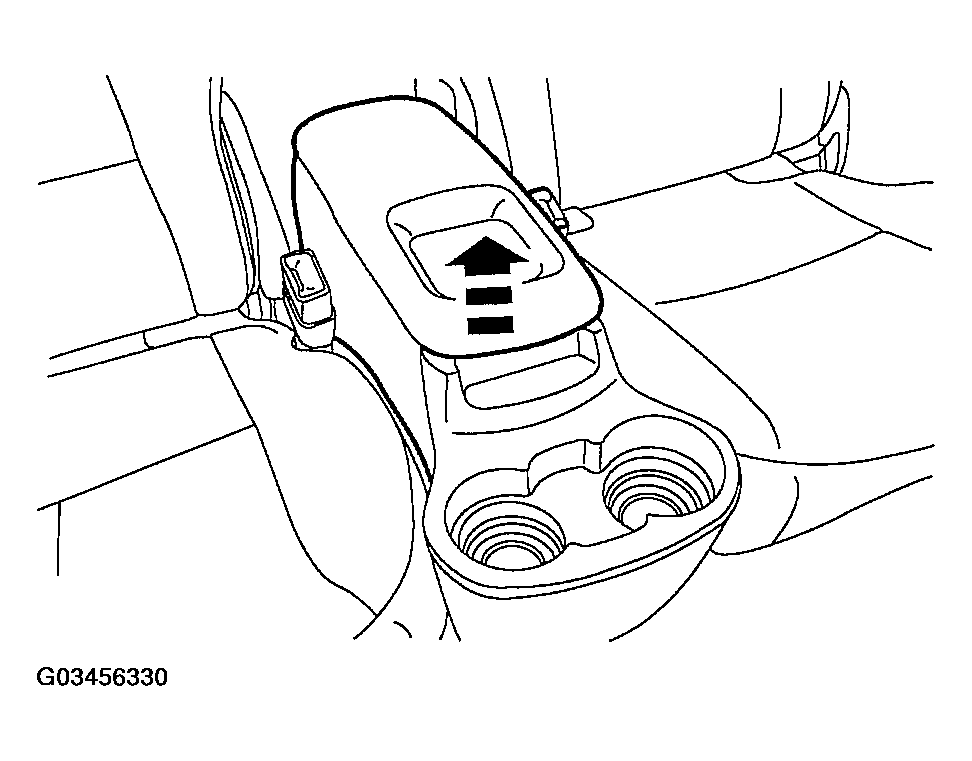

Open the armrest and remove the liner.

Fig 1: Opening Armrest
Courtesy of FORD MOTOR CO.

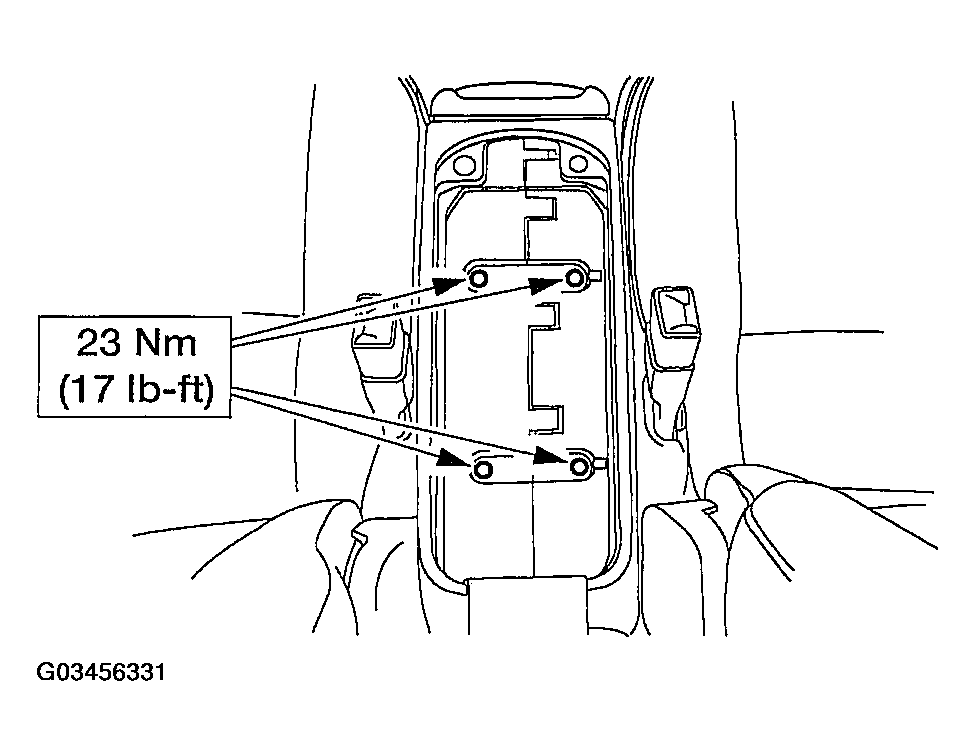

Remove the bolts.

Fig 2: Removing Bolts
Courtesy of FORD MOTOR CO.
Remove the armrest from the seat assembly.
To install, reverse the removal procedure.
