Battery Junction Box
NOTE:
Battery junction box may also be referred to as power distribution box.
NOTE:

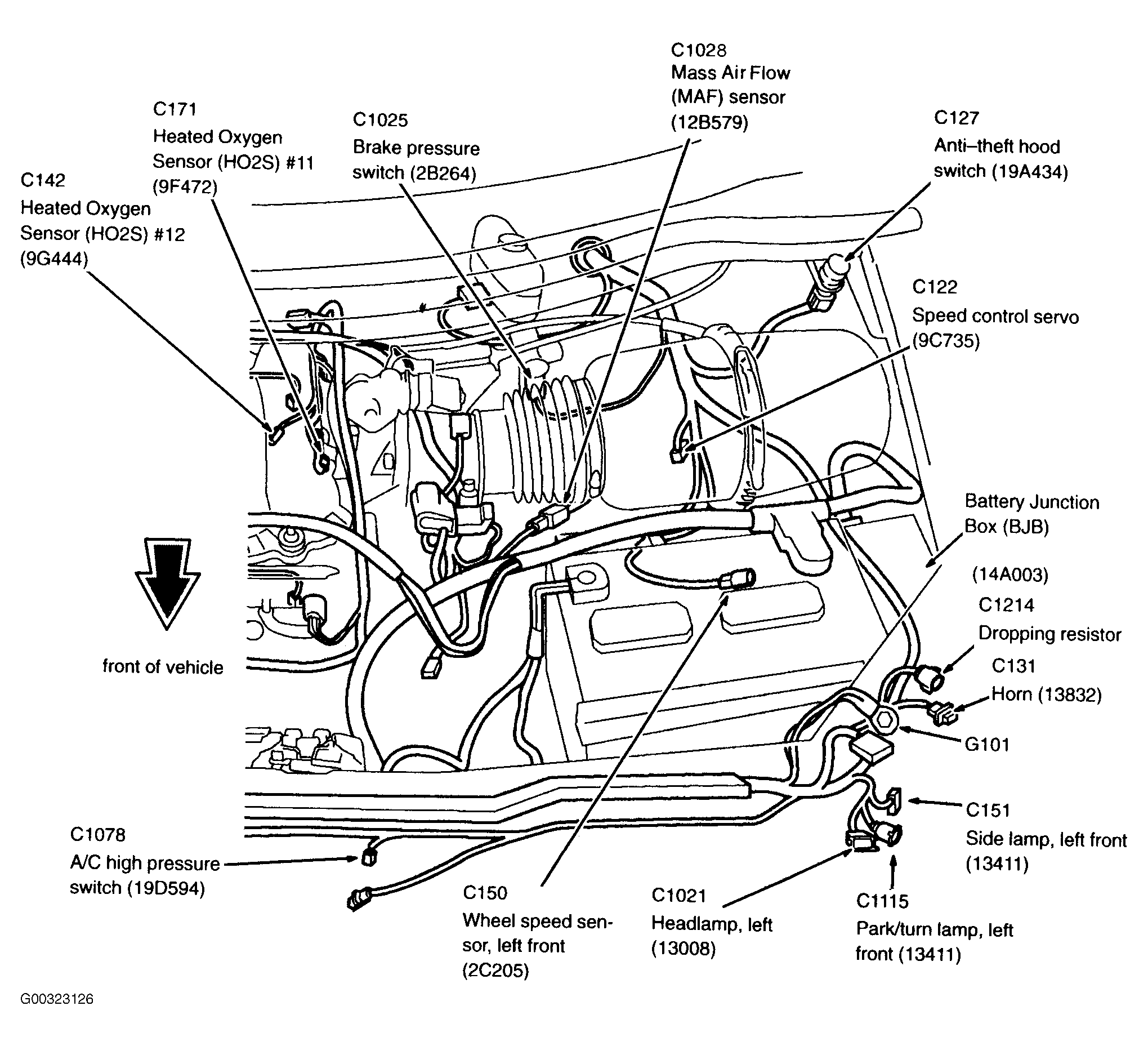

Battery junction box is located on driver's side of engine compartment, next to battery. See Fig 1.

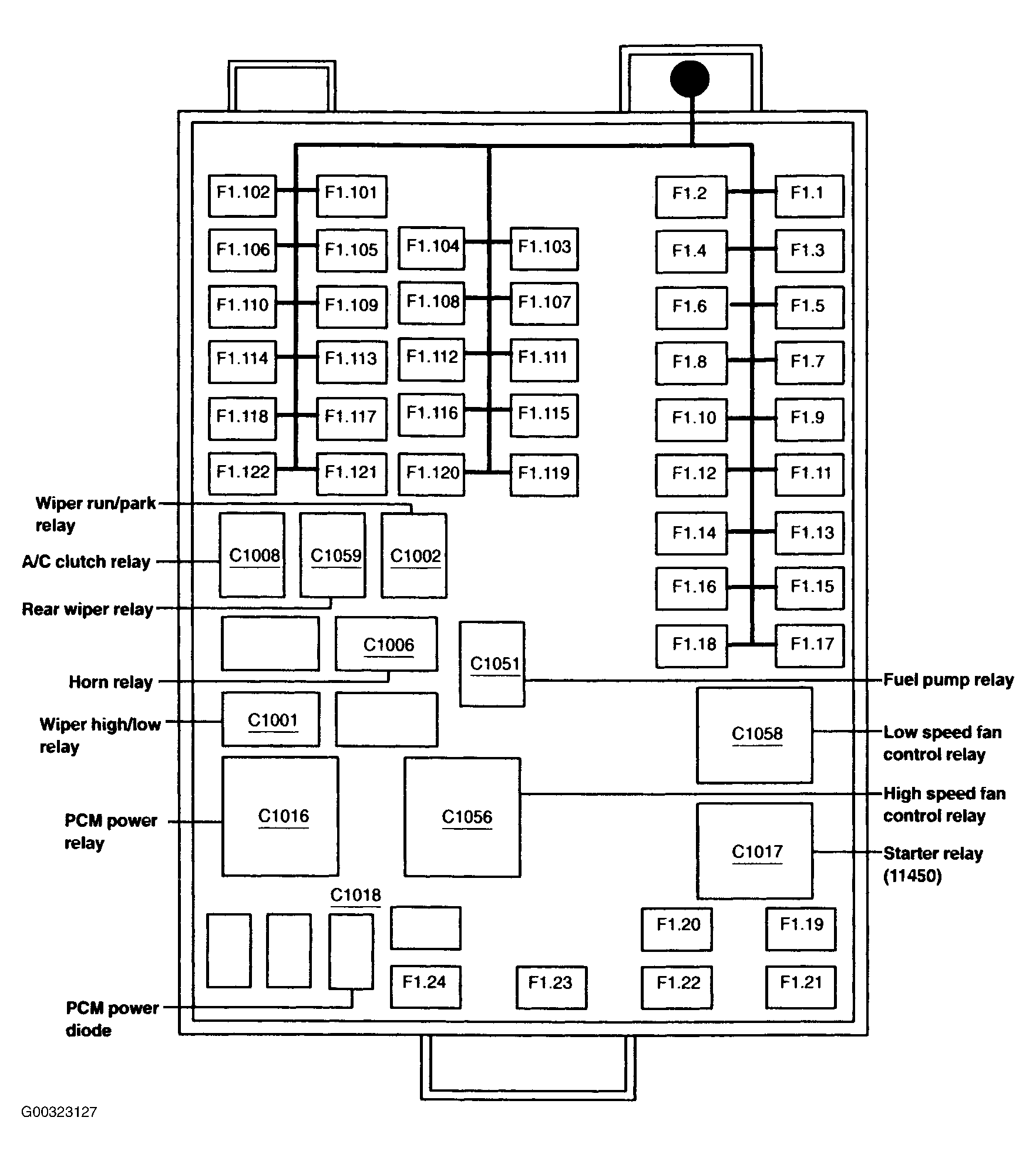

BATTERY JUNCTION BOX RELAY IDENTIFICATION
| RELAY NUMBER | RELAY DESCRIPTION |
|---|---|
| C1016 | PCM power relay |
| C1001 | Wiper high/low Relay |
| C1006 | Horn Relay |
| C1059 | Rear wiper relay |
| C1008 | A/C clutch relay |
| C1002 | Wiper run/park Relay |
| C1051 | Fuel pump relay |
| C1058 | Low speed fan control relay |
| C1056 | High speed fan control relay |
| C1017 | Starter Relay (11450) |
BATTERY JUNCTION BOX FUSE IDENTIFICATION LEGEND
| Mini-fuse | Amps | Circuits protected |
|---|---|---|
| F1.1 | 30A | PCM power relay |
| F1.2 | 10A | Powertrain Control Module (PCM) (12A650), Front Electronic Module (FEM) (13C788) |
| F1.3 | 10A | A/C clutch relay |
| F1.4 | 25A | Horn relay |
| F1.5 | 15A | Fuel pump relay |
| F1.6 | 30A | Front wiper/washer amplifier assembly |
| F1.7 | 25A | Rear wiper relay, Rear wiper motor assembly, Rear window washer pump motor |
| F1.8 | - | not used |
| F1.9 | 15A | Headlamp, right (13008) |
| F1.10 | 15A | Park/turn lamp, right front (13411) |
| F1.11 | 15A | Park/turn lamp, left front (13411), Front Electronic Module (FEM)(13C788) |
| F1.12 | 15A | Headlamp, left (13008) |
| F1.13 | 10A | Generator |
| F1.14 | 10A | Front Electronic Module (FEM) (13C788) |
| F1.15 | 20A | Trailer tow control unit |
| F1.16 | 20A | Trailer tow control unit |
| F1.17 | - | not used |
| F1.18 | - | not used |
| F1.19 | 15A | Engine controls |
| F1.20 | 15A | Engine controls. Passive Anti-theft System (PATS) |
| F1.21 | - | not used |
| F1.22 | - | not used |
| F1.23 | - | not used |
| F1.24 | - | not used |
| F1.101 | 40A | ABS control module (2C219) |
| F1.102 | 40A | ABS control module (2C219) |
| F1.103 | 40A | SSP 4 relay |
| F1.104 | 30A | Power seats, Lumbar adjust switch, left front (14B691) |
| F1.105 | 30A | Ignition switch (11572), Starter relay (11450) |
| F1.106 | 30A | Accessory delay relay |
| F1.107 | 50A | High speed fan control relay, Low speed fan control relay |
| F1.108 | - | not used |
| F1.109 | 30A | Heated seat module, passenger side front, Heated seat module, driver side front |
| F1.110 | 50A | Module, power sliding door, RH side |
| F1.111 | 40A | Central Junction Box (CJB) (14A068) |
| F1.112 | 30A | Trailer electronic brake control module |
| F1.113 | 30A | Front Electronic Module (FEM) (13C788) |
| F1.114 | 40A | SSP 3 relay |
| F1.115 | 50A | Central Junction Box (CJB) (14A068) |
| F1.116 | 30A | Rear window defrost relay |
| F1.117 | 40A | Auxiliary blower motor relay |
| F1.118 | 50A | Module, power sliding door, LH side |
| F1.119 | 30A | Central Junction Box (CJB) (14A068) |
| F1.120 | 40A | Front blower motor relay |
| F1.121 | 20A | Ignition switch (11572) |
| F1.122 | 40A | Seat adjust switch, passenger side front. Lumbar adjust switch, right front |
