Removal and Installation

Remove the cowl top vent panel grille assembly. For additional information, refer to FRONT END BODY PANELS .

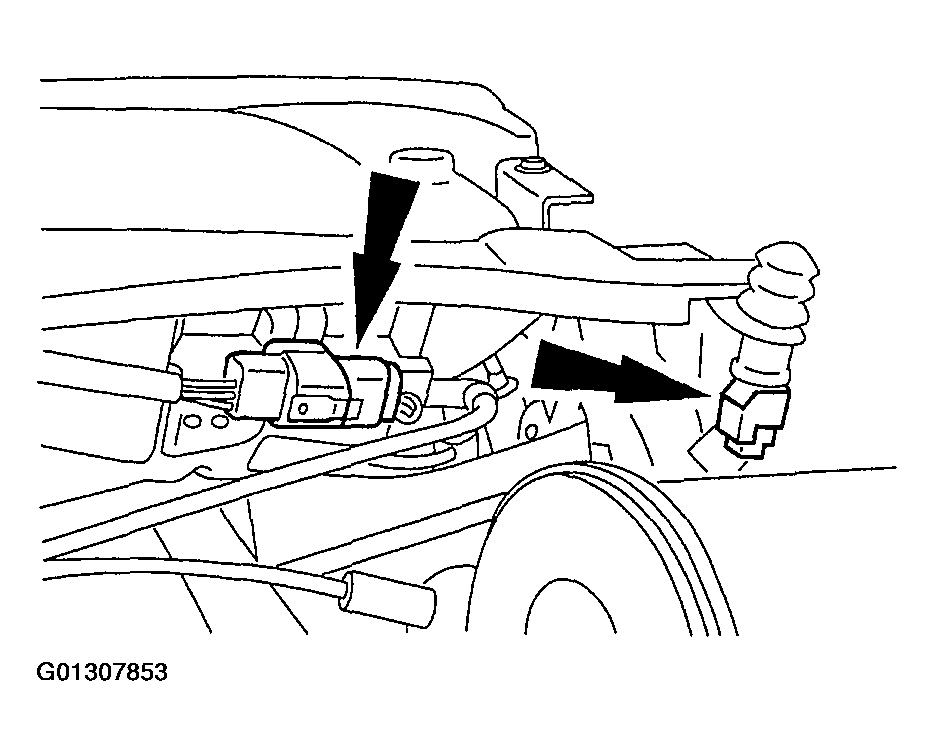

Disconnect the electrical connectors.

Fig 1: Locating Electrical Connectors
Courtesy of FORD MOTOR CO.

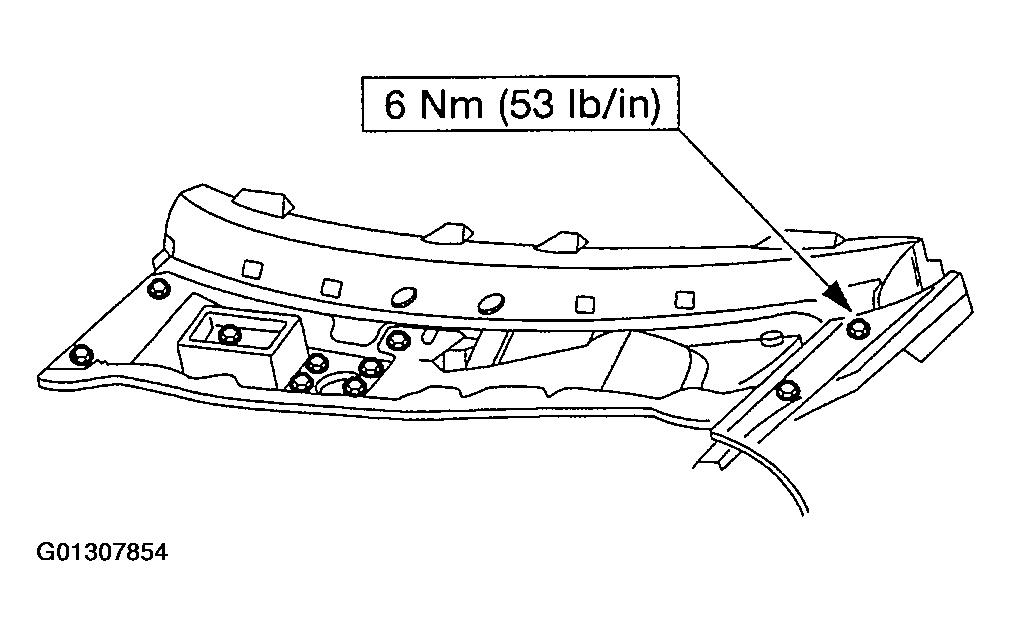

Remove the bolts and the lower cowl top vent panel assembly.

Fig 2: Identifying Lower Cowl Top Vent Panel Assembly Bolts
Courtesy of FORD MOTOR CO.

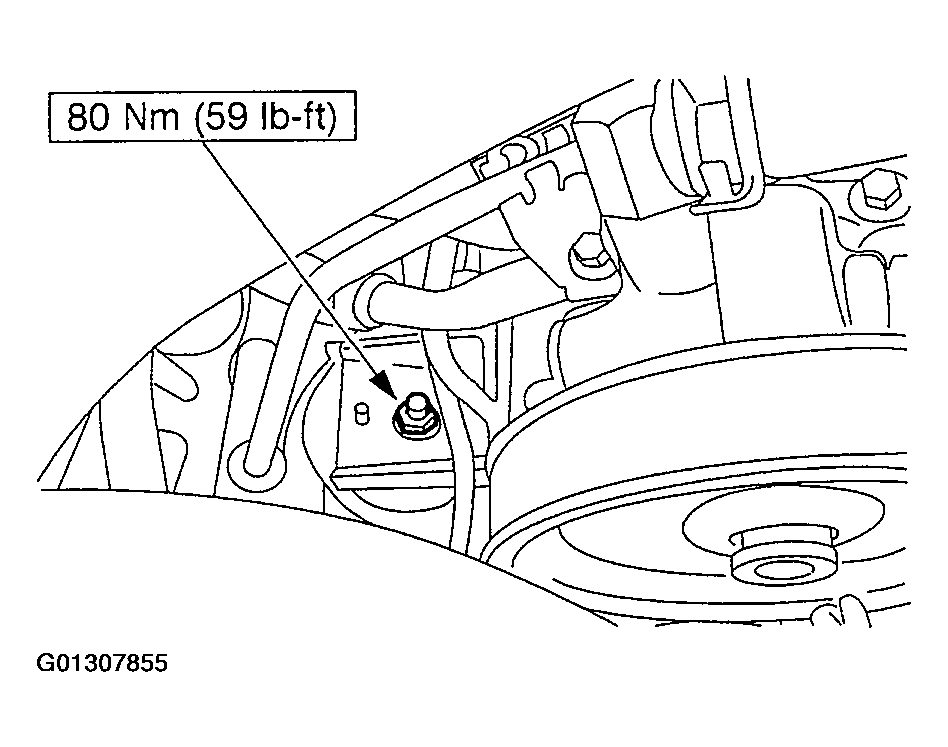

Remove the RH engine mount nut.

Fig 3: Identifying RH Engine Mount Nut
Courtesy of FORD MOTOR CO.
Raise and support the vehicle. For additional information, refer to JACKING & LIFTING .

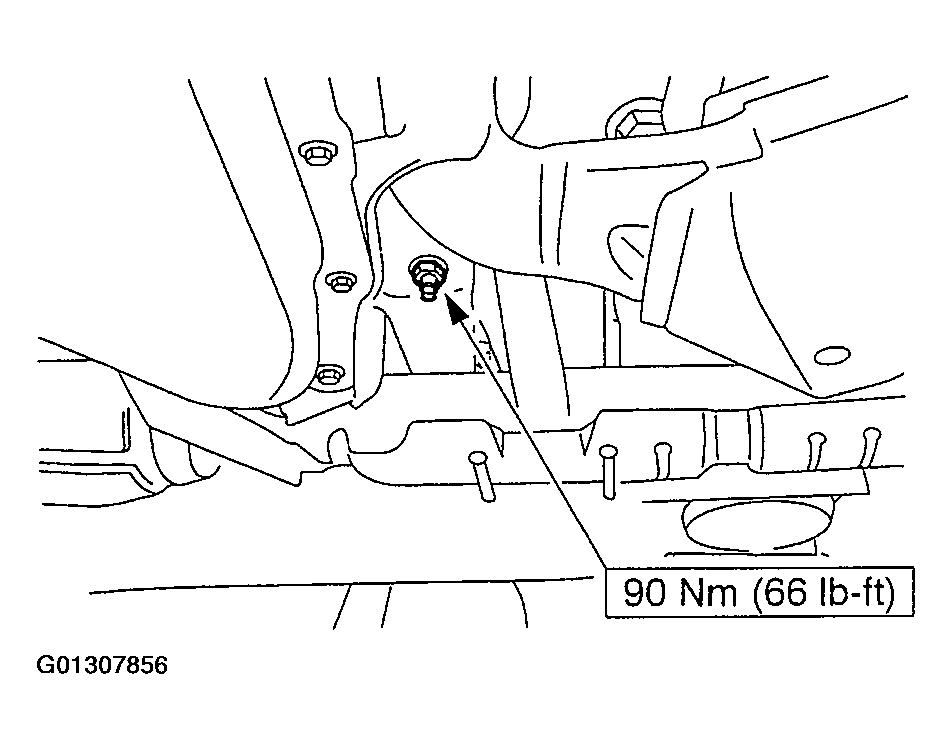

Remove the RH nut.

Fig 4: Identifying RH Nut
Courtesy of FORD MOTOR CO.

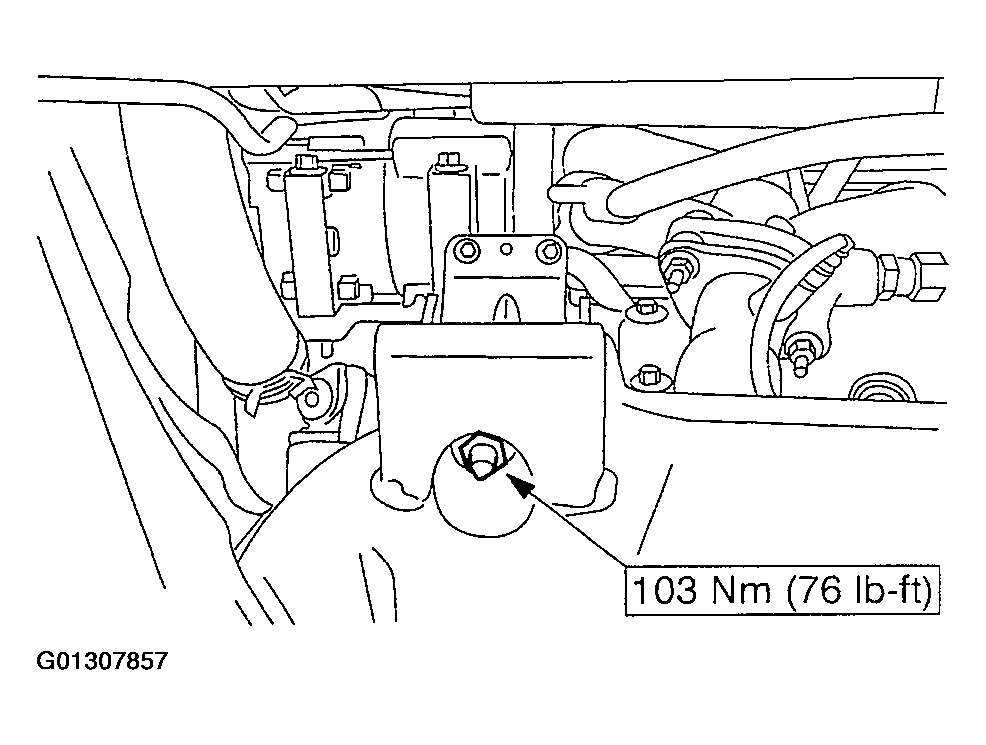

Remove the LH engine mount nut.

Fig 5: Identifying LH Engine Mount Nut
Courtesy of FORD MOTOR CO.
Remove the LH front wheel. For additional information, refer to WHEELS & TIRES .

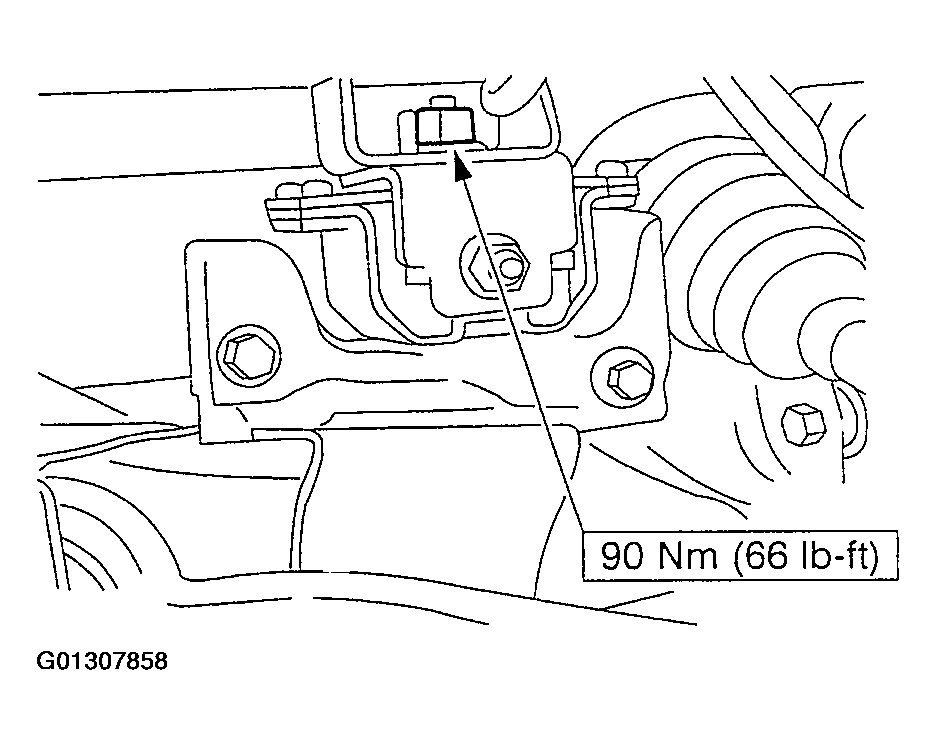

Remove the LH engine mount nuts.

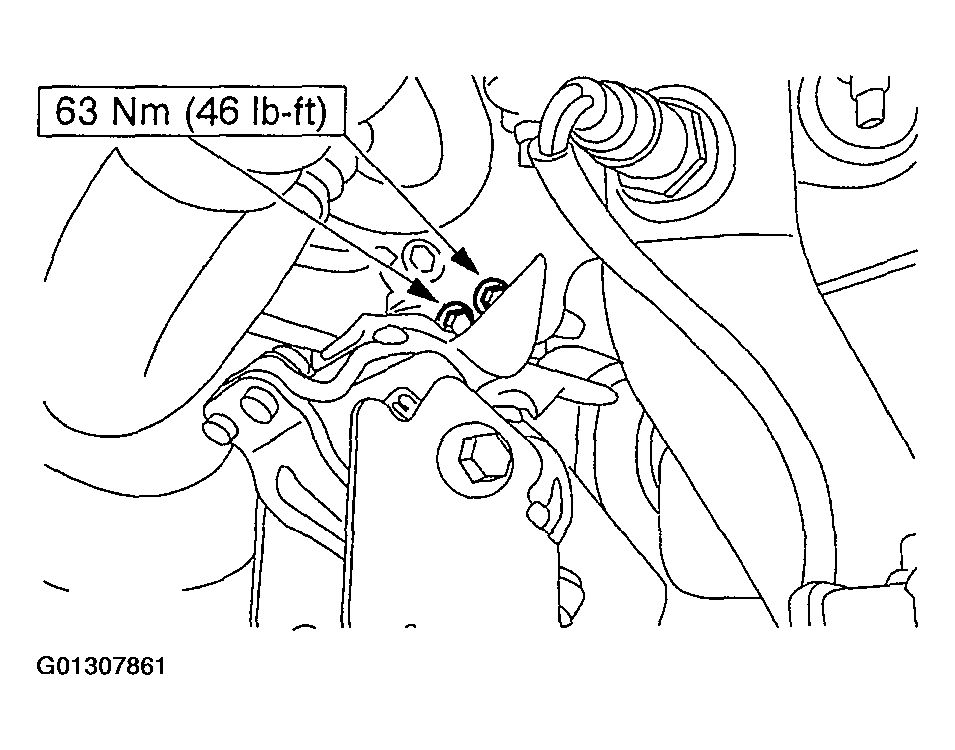

Fig 6: Identifying LH Engine Mount Nuts
Courtesy of FORD MOTOR CO.

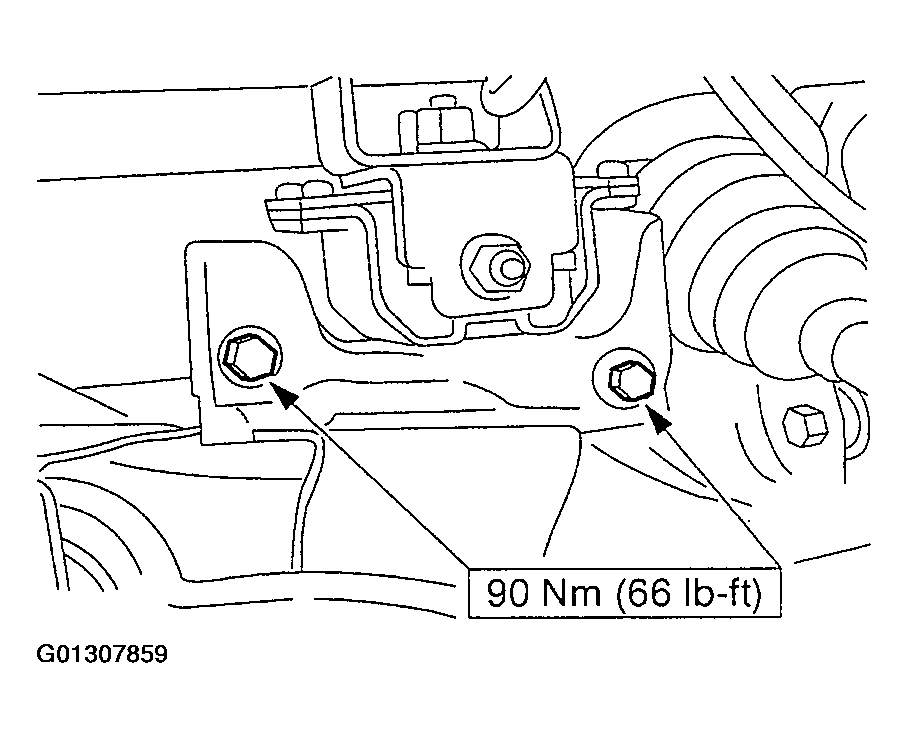

Remove the LH engine mount bolts.

Fig 7: Identifying LH Engine Mount Bolts
Courtesy of FORD MOTOR CO.
Lower the vehicle.

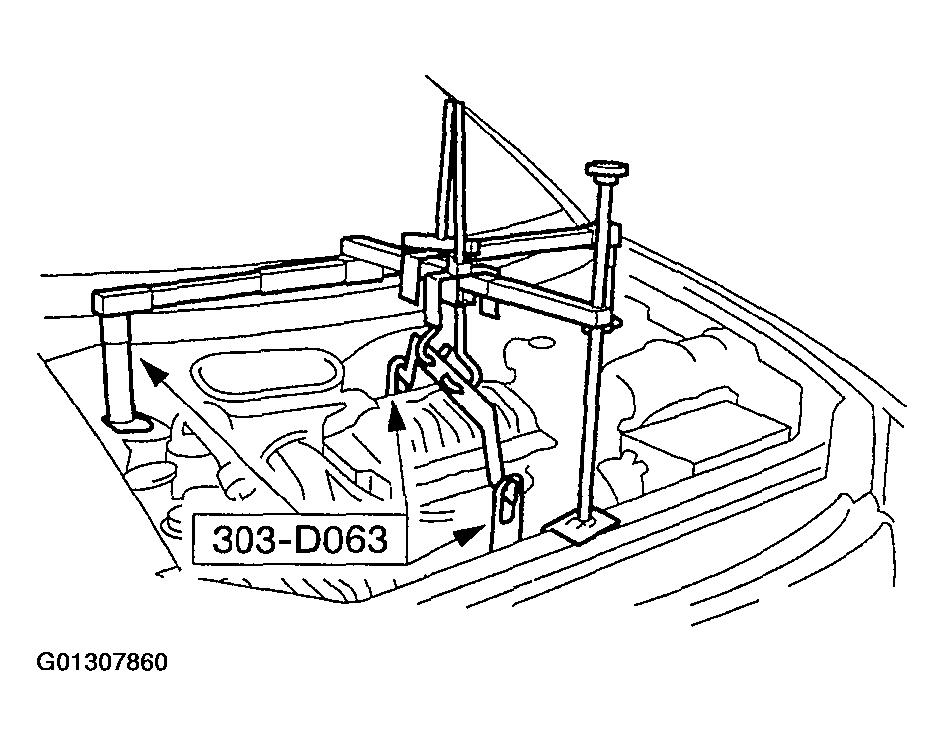

Using the special tool, raise the engine 50.8 mm (2 inches).

Fig 8: Lifting Engine
Courtesy of FORD MOTOR CO.
Raise the vehicle.
If necessary, remove the LH bolts and the motor mount.

Fig 9: Identifying LH Motor Mount Bolts
Courtesy of FORD MOTOR CO.
If necessary, remove the RH motor mount.
To install, reverse the removal procedure.
