Removal and Installation

Remove the fuel tank (9002). For additional information, refer to FUEL TANK .
Clean the area around the fuel pump mounting flange.
Remove the fuel module connections:

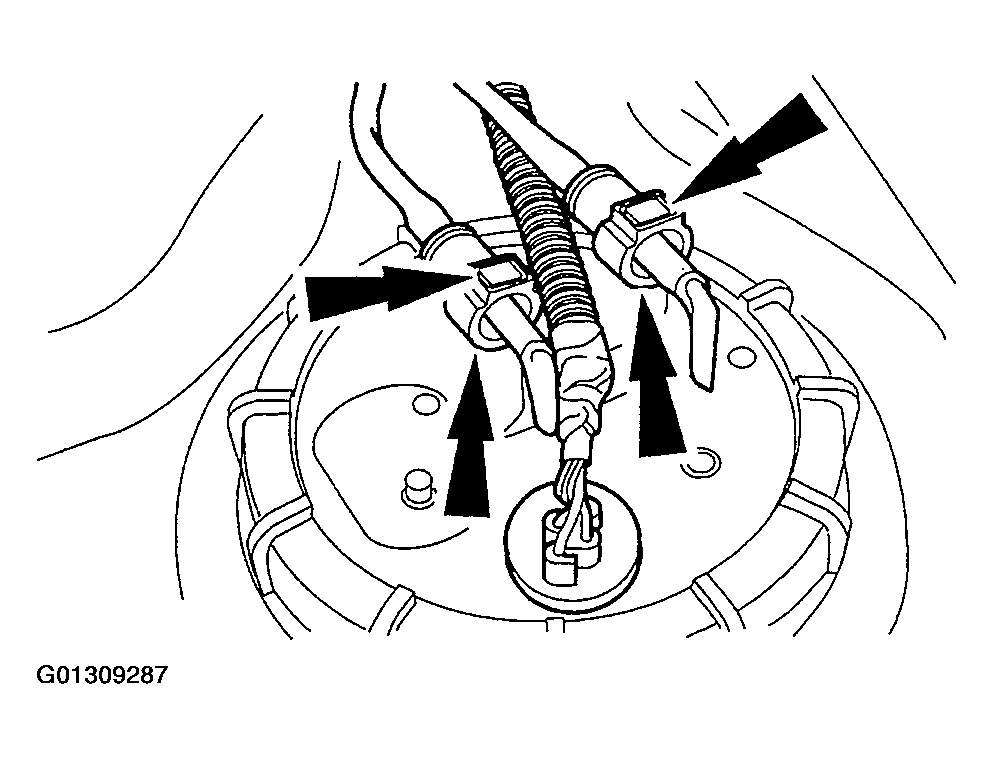

- Disconnect the fuel fittings. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION .

  Fig 1: Disconnecting Fuel Fittings
  Courtesy of FORD MOTOR CO.

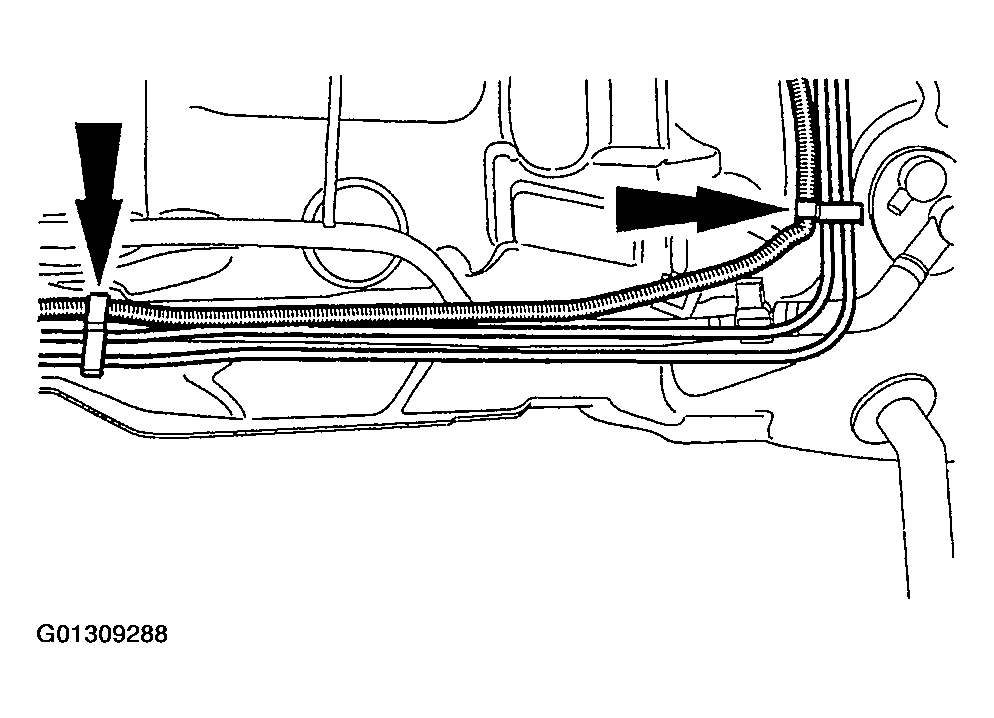

If repair or installation of new fuel lines or a new electrical harness is necessary, remove the fuel lines or harness from the fuel tank retaining clips and remove the appropriate assembly.

Fig 2: Removing Fuel Lines Or Harness From Fuel Tank Retaining Clips
Courtesy of FORD MOTOR CO.

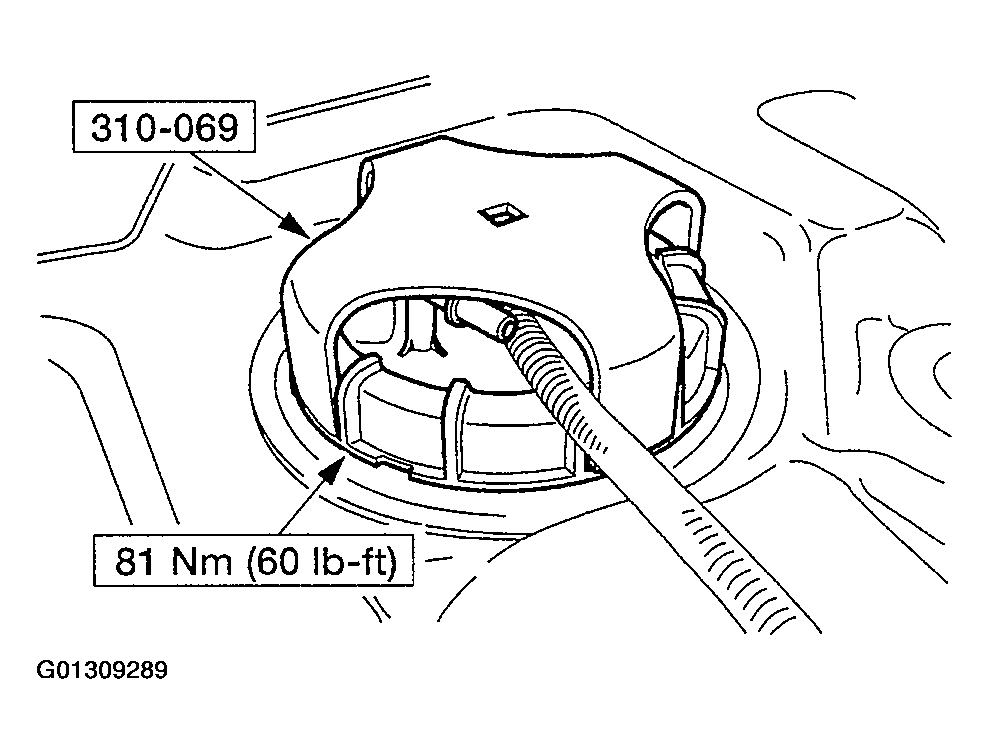

Using the special tool, remove the fuel module retaining ring.

Fig 3: Removing Fuel Module Retaining Ring
Courtesy of FORD MOTOR CO.

CAUTION: The fuel delivery module must be handled carefully to avoid damage to the float arm and filter.

NOTE: Make sure that the areas around the fuel delivery mounting area and the fuel delivery module flange are clean.

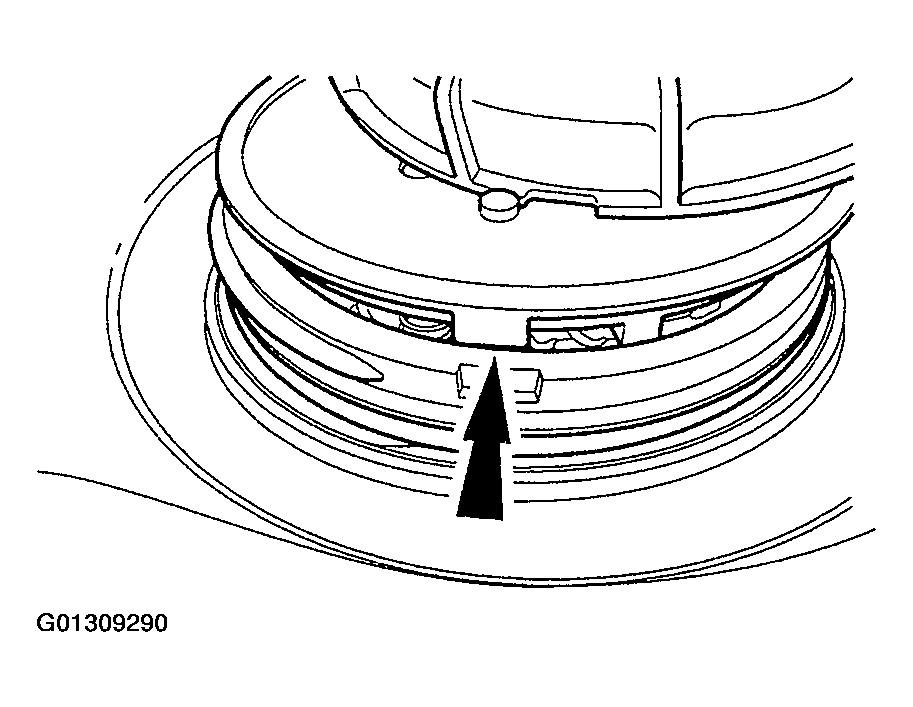

NOTE: When installing the fuel delivery module, make sure to align locator tabs on the fuel tank mounting flange.

Fig 4: Removing Fuel Delivery Module From Fuel Tank

Courtesy of FORD MOTOR CO.
