Intake Manifold: Notes
WARNING: This page is about a different car, the 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Motorcraft Metal Surface Prep ZC-31 |
- |
| Silicone Gasket Remover ZC-30 |
- |

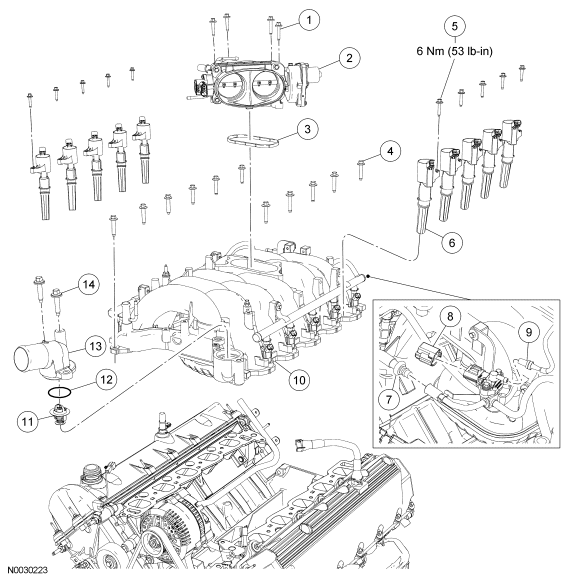

| Item | Part Number | Description |
|---|---|---|
| 1 | N808429 | Throttle body (TB) bolt (4 required) |
| 2 | 9E822 | TB and adapter assembly |
| 3 | 9L437 | TB gasket |
| 4 | N806156 | Intake manifold bolt (11 required) |
| 5 | W706175 | Ignition coil bolt (10 required) |
| 6 | 12A366 | Ignition coil (10 required) |
| 7 | - | Fuel supply tube spring lock coupling |
| 8 | - | Fuel rail pressure and temperature sensor electrical connector (part of 12B637) |
| 9 | - | Fuel rail pressure and temperature sensor vacuum connector (part of 9E498) |
| 10 | 9C663 | Intake manifold |
| 11 | 8575 | Thermostat |
| 12 | N806807 | Thermostat housing O-ring seal |
| 13 | 8594 | Thermostat housing |
| 14 | N806178 | Thermostat housing bolt (2 required) |
