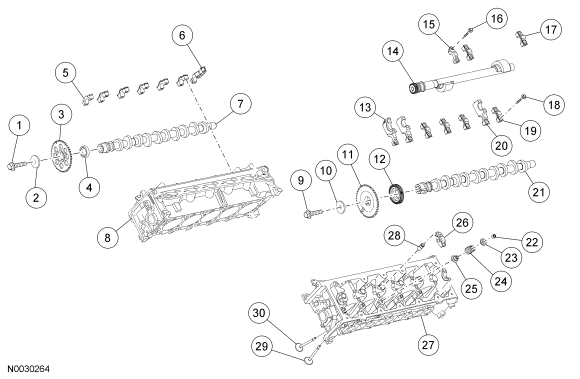

Valve Train Components - Exploded View
WARNING: This page is about a different car, the 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | N811085 | RH camshaft sprocket bolt |
| 2 | - | RH camshaft sprocket bolt washer |
| 3 | 6256 | RH camshaft sprocket |
| 4 | 6266 | RH camshaft spacer |
| 5 | 6B280 | RH camshaft bearing cap (6 required) |
| 6 | 6B284 | RH camshaft bearing cap |
| 7 | 6250 | RH camshaft |
| 8 | 6049 | RH cylinder head |
| 9 | N811085 | LH camshaft sprocket bolt |
| 10 | - | LH camshaft sprocket bolt washer |
| 11 | 6256 | LH camshaft sprocket |
| 12 | 6A303 | Balance shaft drive gear |
| 13 | 6C272 | LH camshaft bearing cap |
| 14 | 6A305 | Balance shaft |
| 15 | 6C267 | Balance shaft bearing cap |
| 16 | N808777 | Balance shaft bearing cap bolt (6 required) |
| 17 | 6C266 | Balance shaft bearing cap (2 required) |
| 18 | N807834 | LH camshaft bearing cap bolt (26 required) |
| 19 | 6B280 | LH camshaft bearing cap (4 required) |
| 20 | 6C266 | LH camshaft bearing cap (2 required) |
| 21 | 6A274 | LH camshaft |
| 22 | 6518 | Valve key (40 required) |
| 23 | 6514 | Valve spring retainer (20 required) |
| 24 | 6513 | Valve spring (20 required) |
| 25 | 6A517 | Valve stem seal (20 required) |
| 26 | 6529 | Camshaft roller follower (20 required) |
| 27 | 6050 | LH cylinder head |
| 28 | 6C501 | Hydraulic lash adjuster (20 required) |
| 29 | 6507 | Intake valve (10 required) |
| 30 | 6505 | Exhaust valve (10 required) |
- For additional information, refer to the procedures.
